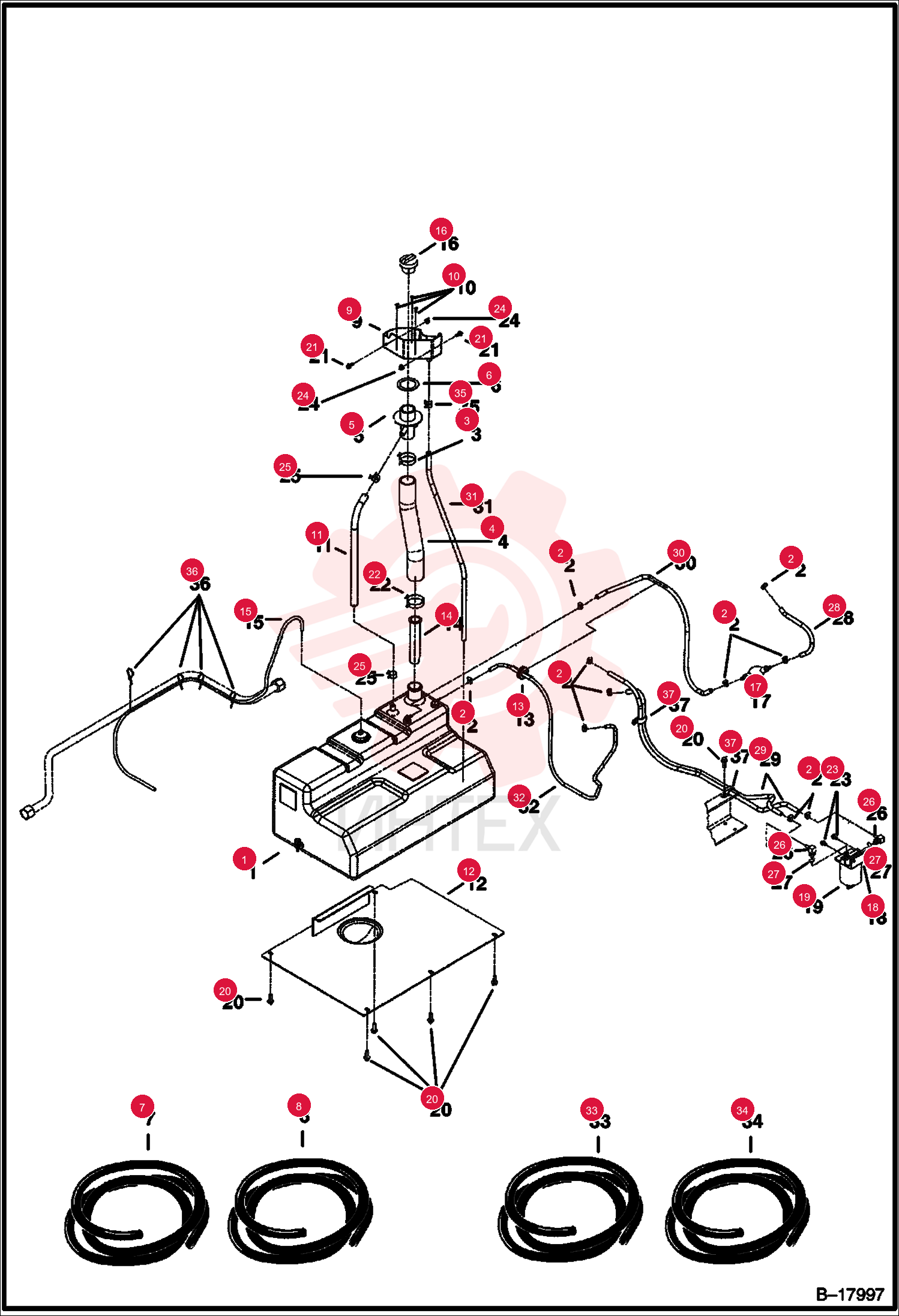

TANK ASSEMBLY 6802511
1 6802511
- 6802511 - TANK ASSEMBLY
- - Fuel
2 42HS04
- 42HS04 - CLAMP HOSE TYPE M
- Was 6515575
3 5HM55
- 5HM55 - CLAMP
4 6800068
- 6800068 - HOSE
5 6701449
- 6701449 - FLR.TUBE
6 6802558
- 6802558 - GASKET
7 6578169
- 6578169 - HOSE BULK
- sold per foot - 0.19" ID
8 6586251
- 6586251 - HOSE
- BULK
- sold per foot
9 6800803
- 6800803 - SHIELD
- Fuel Fill
10 6706517
- 6706517 - SCREW 10
11 6800100
- 6800100 - PLATE
12 731972
- 731972 - GROMMET
13 7120881
- 7120881 - SCREEN
- FILLER
- Was 6569219
14 6588351
- 6588351 - HARNESS
- Fuel Sensor
15 6665423
- 6665423 - CAP
- Fuel
16 6667170
- 6667170 - PUMP
- PRIMER HAND
- 193 mm (7.6") long
17 6658180
- 6658180 - PLUG
- BLEED
18 6667353
- 6667353 - FILTER
- FUEL ASSY
- Assy - W/Ref. 19
19 6667352
- 6667352 - FILTER
- FUEL W/SEPARATOR 12
- Was 6683139
20 26GM10030
- 26GM10030 - SCREW SELF TAPPING
21 29CM820
- 29CM820 - SCREW FLNGE HEX CAP
- Was 29CM00830B
22 5HM58
- 5HM58 - CLAMP
23 26GM8020
- 26GM8020 - SCREW SELF TAPPING
24 51DM8
- 51DM8 - NUT HX THDLK PREAPPL
25 5HM23
- 5HM23 - HOSE CLMP CONST TENS
26 6657083
- 6657083 - ELBOW
- W/Ref. 27
27 79K5
- 79K5 - O RING 10
28 6577822
- 6577822 - HOSE BULK
- sold per foot
29 6578172
- 6578172 - HOSE BULK
- sold per foot
30 42HS10
- 42HS10 - CLAMP
- Was 5HM00017B
31 6610510
- 6610510 - STRAP
- TIE 10
32 31H31
- 31H31 - CLIP
