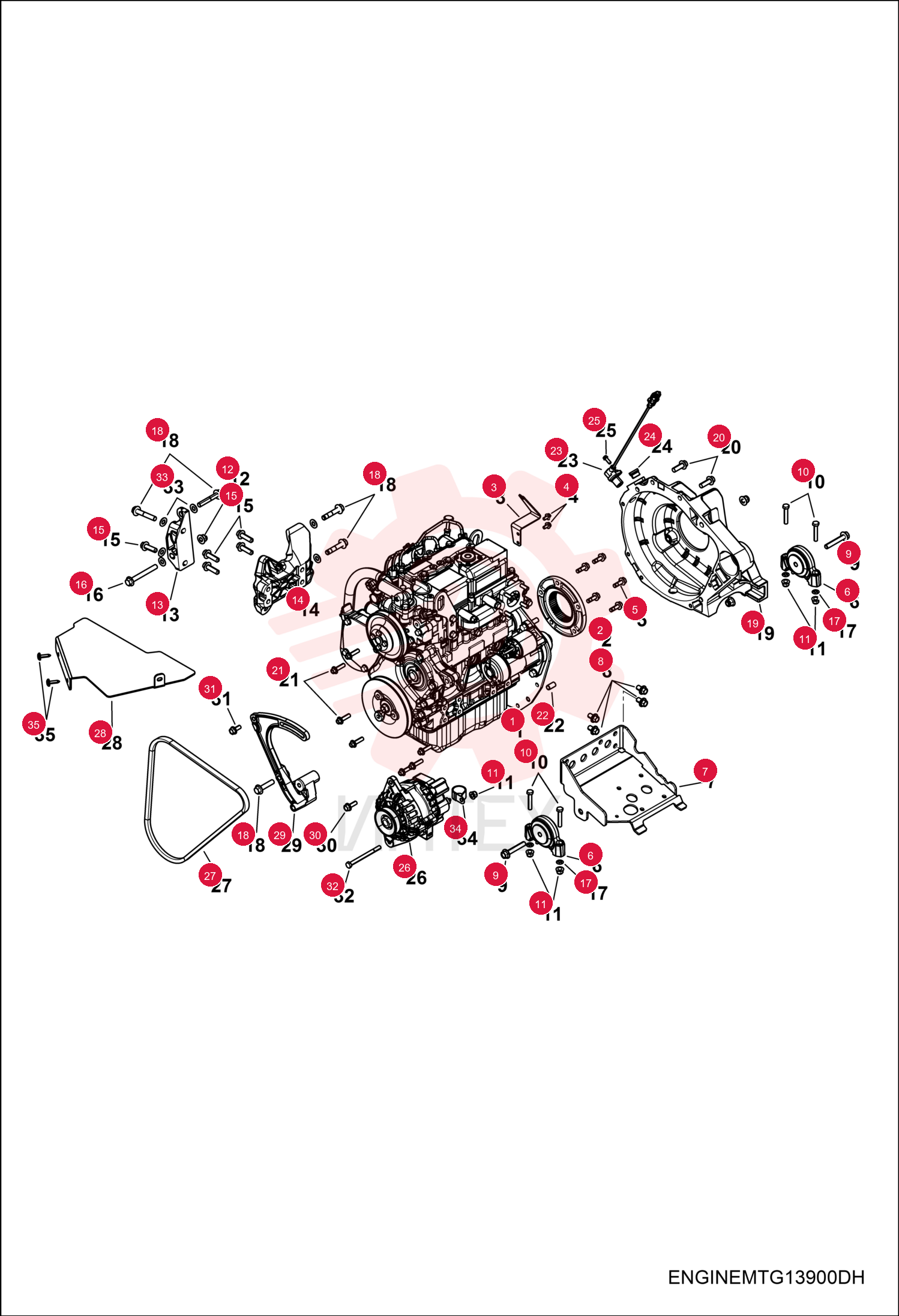

ENGINE UTV 3600

ENGINE UTV 3600

ENGINE UTV 3600

1 7261118

  • 7261118 - ENGINE UTV 3600

2 7025354

  • 7025354 - COUPLER

3 7214817

  • 7214817 - COUPLER
  • FLANGE

4 7025365

  • 7025365 - MOUNT
  • CABLE

5 7212034

  • 7212034 - BRACKET
  • CABLE

6 7016625

  • 7016625 - SCREW

7 7024206

  • 7024206 - SCREW

8 7025324

  • 7025324 - MOUNT
  • ISOLATOR

9 7025545

  • 7025545 - MOUNT
  • ENG

10 7016639

  • 7016639 - SCREW

11 7025489

  • 7025489 - BOLT

12 7025491

  • 7025491 - BOLT

13 7016526

  • 7016526 - NUT

14 7016520

  • 7016520 - NUT

15 7027856

  • 7027856 - MOUNT
  • ENGINE

16 7027687

  • 7027687 - MOUNT
  • ENGINE

17 7025502

  • 7025502 - BOLT
  • FLANGE

18 7025504

  • 7025504 - BOLT
  • FLANGE

19 7025505

  • 7025505 - PALNUT

20 7025503

  • 7025503 - BOLT
  • FLANGE

21 7027498

  • 7027498 - BELLHOUSING
  • W/Ref. 22

22 7020321

  • 7020321 - BOLT

23 7016638

  • 7016638 - SCREW

24 7017517

  • 7017517 - PIN
  • DOWL HOL M11X10

25 7025326

  • 7025326 - SENSOR
  • MAGNETIC

26 7017638

  • 7017638 - PLUG
  • HEX HOLLOW W/ O-RING

27 7025487

  • 7025487 - BOLT
  • FLANGE

28 7025381

  • 7025381 - ALTERNATOR 90 AMP

29 7027653

  • 7027653 - BELT
  • ALT

30 7025549

  • 7025549 - BRACKET
  • COVER
  • Was 7252914

31 7025549

  • 7025549 - BRACKET
  • COVER

32 7016177

  • 7016177 - BOLT

33 7023423

  • 7023423 - BOLT

34 7025499

  • 7025499 - BOLT

35 7025509

  • 7025509 - WASHER
  • FLAT

36 7027722

  • 7027722 - CLAMP
  • WIRE FLEXIBLE

37 7024692

  • 7024692 - BOLT
