Bobcat
/
3600
/

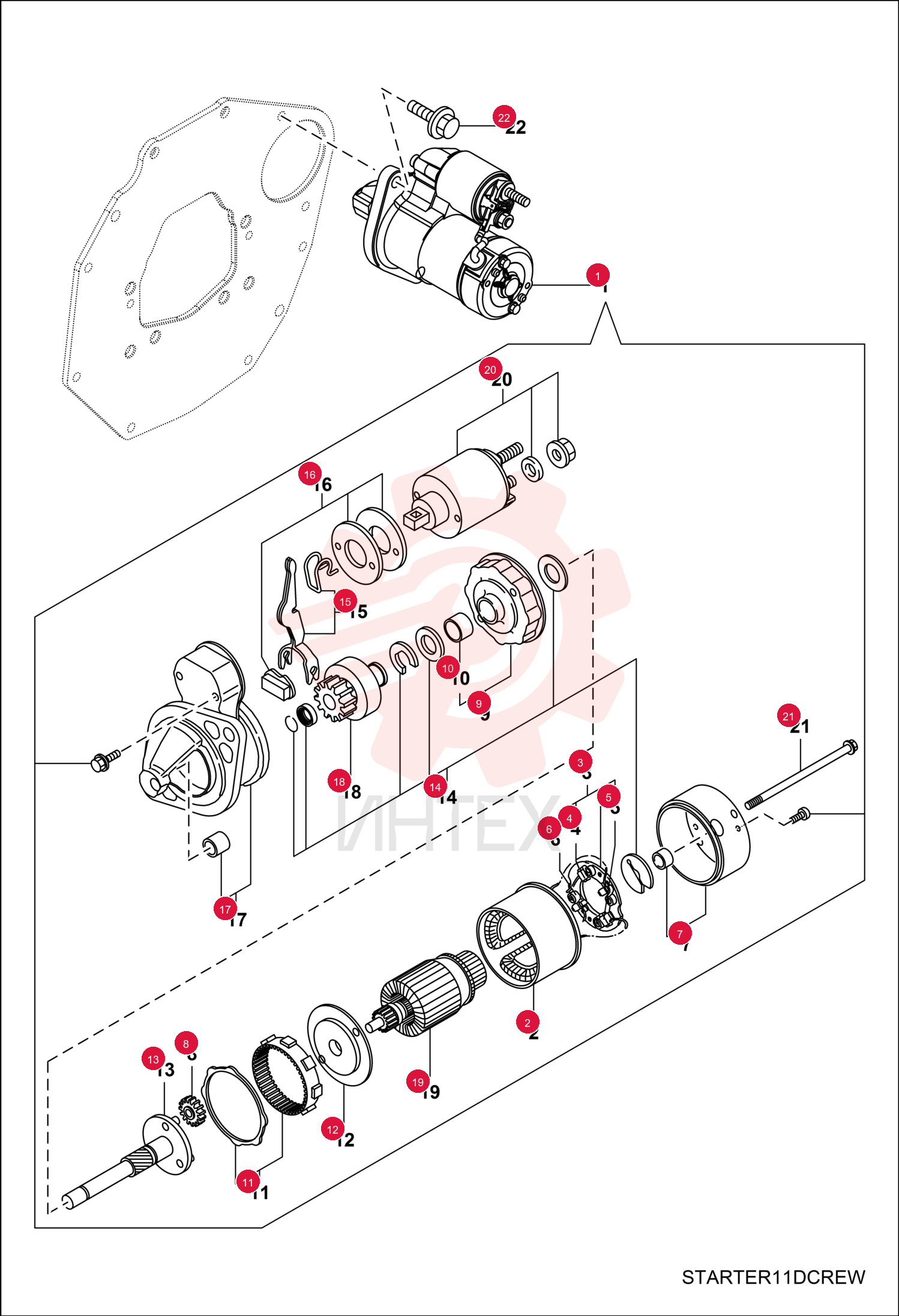

STARTER, 1.2KW

STARTER, 1.2KW

STARTER, 1.2KW

1 7018593

  • 7018593 - STARTER
  • 1.2KW
  • W/Ref. 2-21

2 7020708

  • 7020708 - WIRE
  • WINDING

3 7020709

  • 7020709 - HOLDER
  • BRUSH

4 7020710

  • 7020710 - BRUSH

5 7020711

  • 7020711 - BRUSH

6 7020712

  • 7020712 - SPRING
  • BRUSH

7 7020713

  • 7020713 - COVER
  • REAR

8 7020714

  • 7020714 - GEAR
  • IDLE PUMP

9 7020715

  • 7020715 - BRACKET
  • W/Ref. 10

10 7020716

  • 7020716 - BRACKET

11 7020717

  • 7020717 - GEAR
  • INTERNAL

12 7020718

  • 7020718 - BRACKET

13 7020719

  • 7020719 - SHAFT
  • PINION

14 7020720

  • 7020720 - WASHER

15 7020721

  • 7020721 - LEVER
  • SHIFT

16 7020722

  • 7020722 - COVER
  • DUST

17 7020723

  • 7020723 - HOUSING
  • GEAR

18 7020724

  • 7020724 - PINION

19 7020725

  • 7020725 - ARMATURE

20 7020726

  • 7020726 - SWITCH
  • STARTER

21 7020727

  • 7020727 - BOLT

22 7020728

  • 7020728 - BOLT
