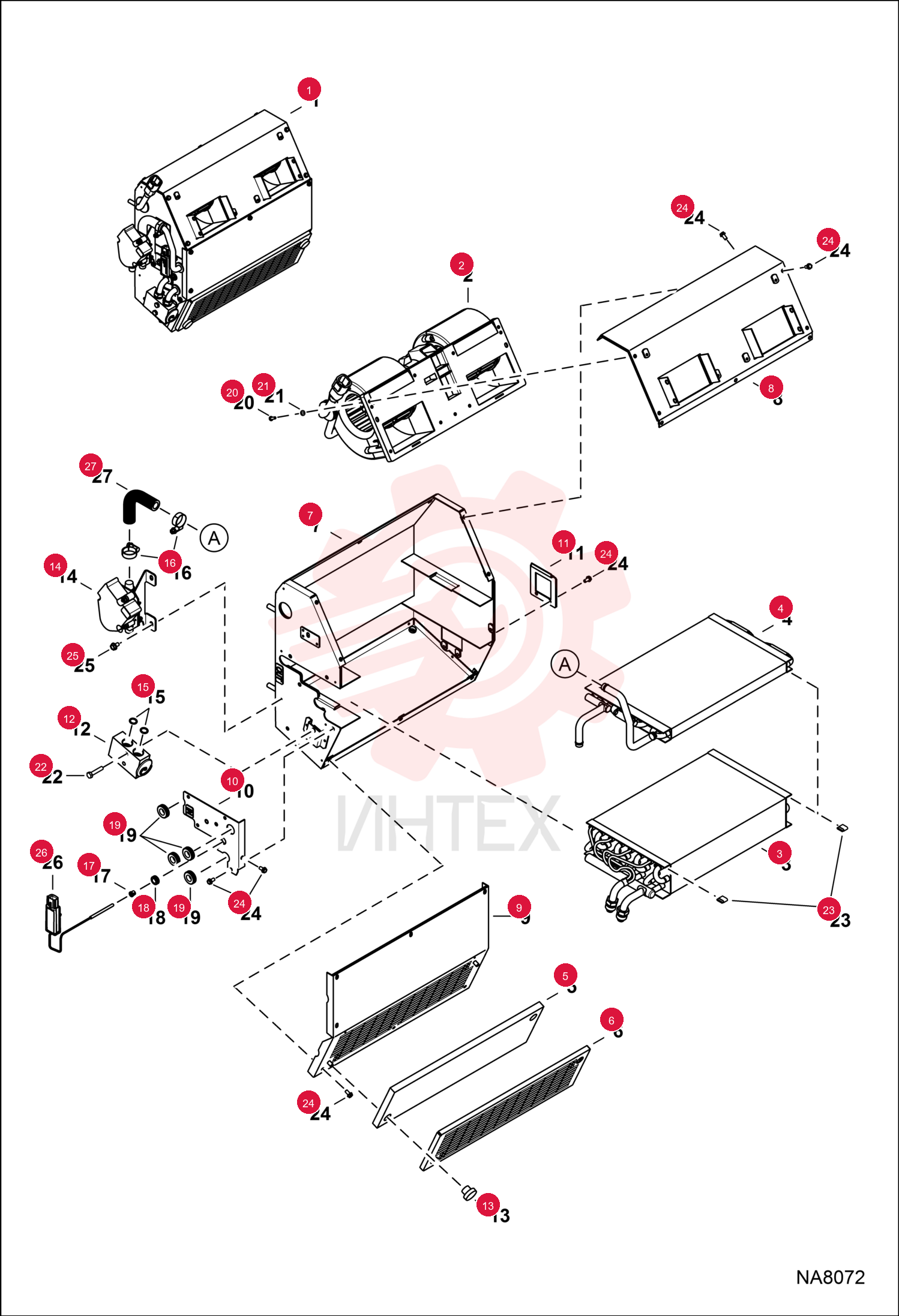

HVAC ASSEMBLY 7212198 (4)

HVAC ASSEMBLY 7212198 (4)

HVAC ASSEMBLY 7212198 (4)

1 7212198

  • 7212198 - HVAC ASSEMBLY
  • Ref. 2-27

2 7282145

  • 7282145 - FAN
  • HVAC 3 SPD
  • W/resistor - Was 7249527

3 7028474

  • 7028474 - COIL
  • EVAPORATOR

4 7028475

  • 7028475 - COIL
  • HEATER

5 7028481

  • 7028481 - FILTER
  • AIR

6 7028477

  • 7028477 - COVER
  • FILTER

7 7028482

  • 7028482 - HOUSING

8 7028480

  • 7028480 - COVER TOP

9 7028478

  • 7028478 - COVER
  • FRONT

10 7028479

  • 7028479 - COVER
  • SIDE

11 7028476

  • 7028476 - COVER

12 6675534

  • 6675534 - BLOCK
  • VALVE A/C

13 6676620

  • 6676620 - KNOB

14 7028483

  • 7028483 - VALVE
  • MOTORIZED ASSY

15 7240092

  • 7240092 - O-RING

16 7028473

  • 7028473 - CLAMP
  • HOSE

17 7028488

  • 7028488 - BUSHING
  • PLASTIC

18 6675513

  • 6675513 - GROMMET

19 7003459

  • 7003459 - GROMMET

20 7010401

  • 7010401 - SCREW

21 6693223

  • 6693223 - WASHER

22 6691534

  • 6691534 - SCREW

23 6676539

  • 6676539 - CLIP PANEL

24 6691532

  • 6691532 - SCREW

25 6693864

  • 6693864 - BOLT

26 7332632

  • 7332632 - THERMOSTAT ASSY
  • 1260 mm (49.6") lead

27 7021080

  • 7021080 - HOSE
  • HEATER BULK
