Bobcat
/
3600
/

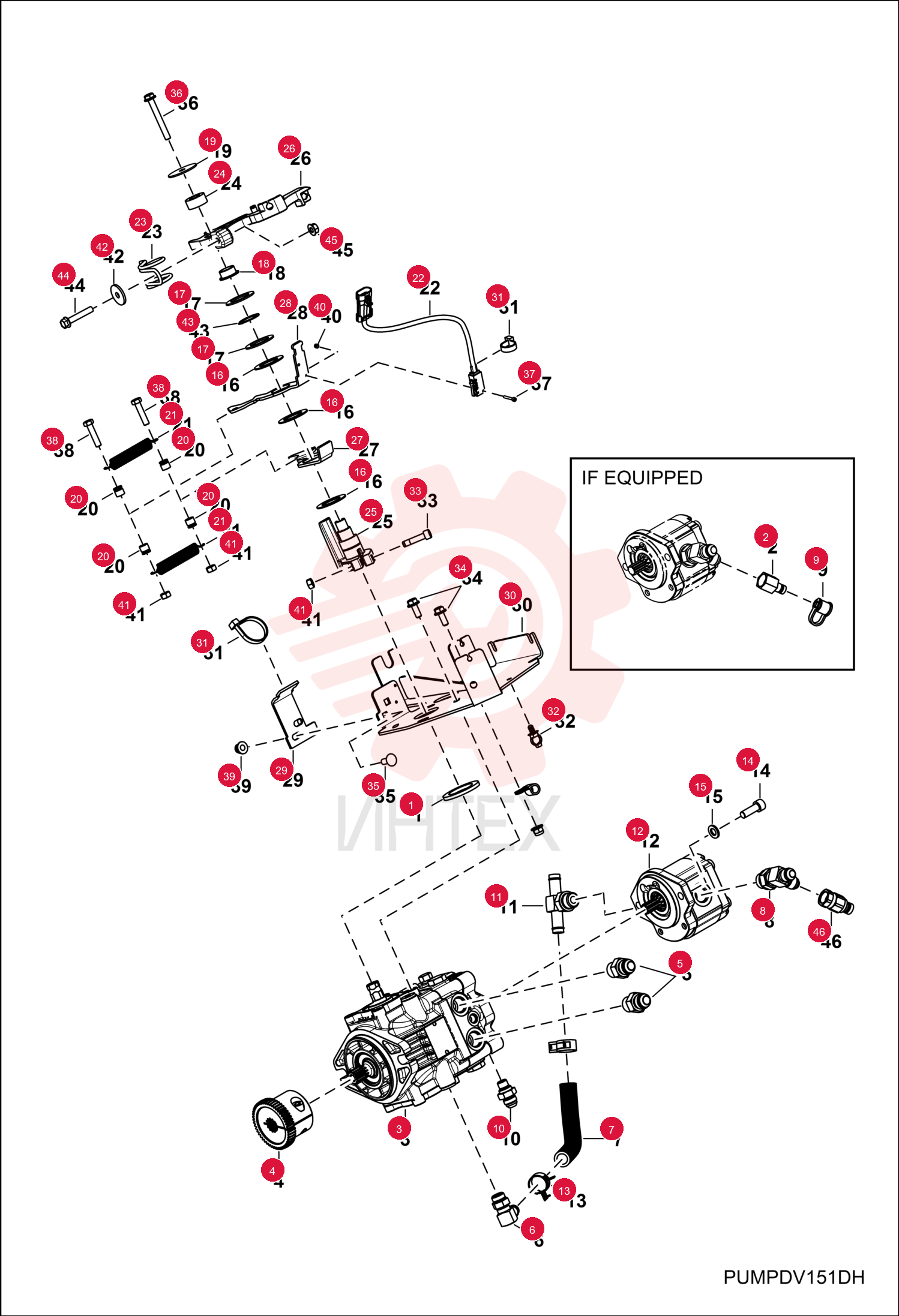

WASHER, RUBBER 7224326 (2)

WASHER, RUBBER 7224326 (2)

WASHER, RUBBER 7224326 (2)

1 7224326

  • 7224326 - WASHER
  • RUBBER

2 6646635

  • 6646635 - PLUG
  • if equipped

3 7251407

  • 7251407 - PUMP
  • GEROTOR
  • Was 7023339

4 7250860

  • 7250860 - COUPLER
  • HUB

5 15KB1010

  • 15KB1010 - FITTING
  • HYD CONNECTOR

6 6680952

  • 6680952 - FITTING 90 DEG BARB

7 7265098

  • 7265098 - HOSE
  • HYD

8 21KB0806

  • 21KB0806 - FITTING
  • HYD TEE

9 6630367

  • 6630367 - CAP
  • if equipped

10 15KB0806

  • 15KB0806 - FITTING
  • HYD CONNECTOR

11 7222022

  • 7222022 - FITTING
  • HYD TEE

12 7252843

  • 7252843 - PUMP
  • GEAR

13 5HM24

  • 5HM24 - CLAMP

14 7024005

  • 7024005 - SCREW

15 7024007

  • 7024007 - WASHER
  • PLAIN

16 7116773

  • 7116773 - WASHER PLASTIC

17 7212115

  • 7212115 - WASHER

18 7211443

  • 7211443 - BUSHING

19 7168208

  • 7168208 - WASHER

20 7170794

  • 7170794 - SPACER SPRING

21 7186580

  • 7186580 - SPRING EXTENSION

22 7208368

  • 7208368 - HARNESS
  • SWITCH NEUTRAL

23 7260299

  • 7260299 - SPRING
  • TORSION
  • Was 7219131

24 7219132

  • 7219132 - SPACER

25 7252853

  • 7252853 - LEVER
  • PINTLE

26 7252854

  • 7252854 - LEVER COMMAND

27 7221258

  • 7221258 - LEVER
  • SPRING

28 7221259

  • 7221259 - LEVER
  • SPRING

29 7221266

  • 7221266 - PLATE
  • ADJUST

30 7257361

  • 7257361 - PLATE
  • PUMP

31 6624289

  • 6624289 - STRAP
  • TIE

32 7023400

  • 7023400 - CLIP
  • ROUTING

33 7023828

  • 7023828 - SCREW

34 7016176

  • 7016176 - BOLT

35 7023422

  • 7023422 - BOLT
  • CARRIAGE

36 7024757

  • 7024757 - SCREW

37 7023438

  • 7023438 - SCREW

38 7023436

  • 7023436 - SCREW

39 7016527

  • 7016527 - NUT

40 7023442

  • 7023442 - NUT
  • LOCK

41 7023437

  • 7023437 - NUT

42 7267606

  • 7267606 - WASHER
  • FLAT

43 7023433

  • 7023433 - RING
  • RETAINER

44 7016629

  • 7016629 - SCREW

45 7265111

  • 7265111 - SCREW
  • W/O-cab

46 7023322

  • 7023322 - NUT
  • FLANGE
  • W/Cab

47 7274508

  • 7274508 - COUPLER
  • FF MALE
