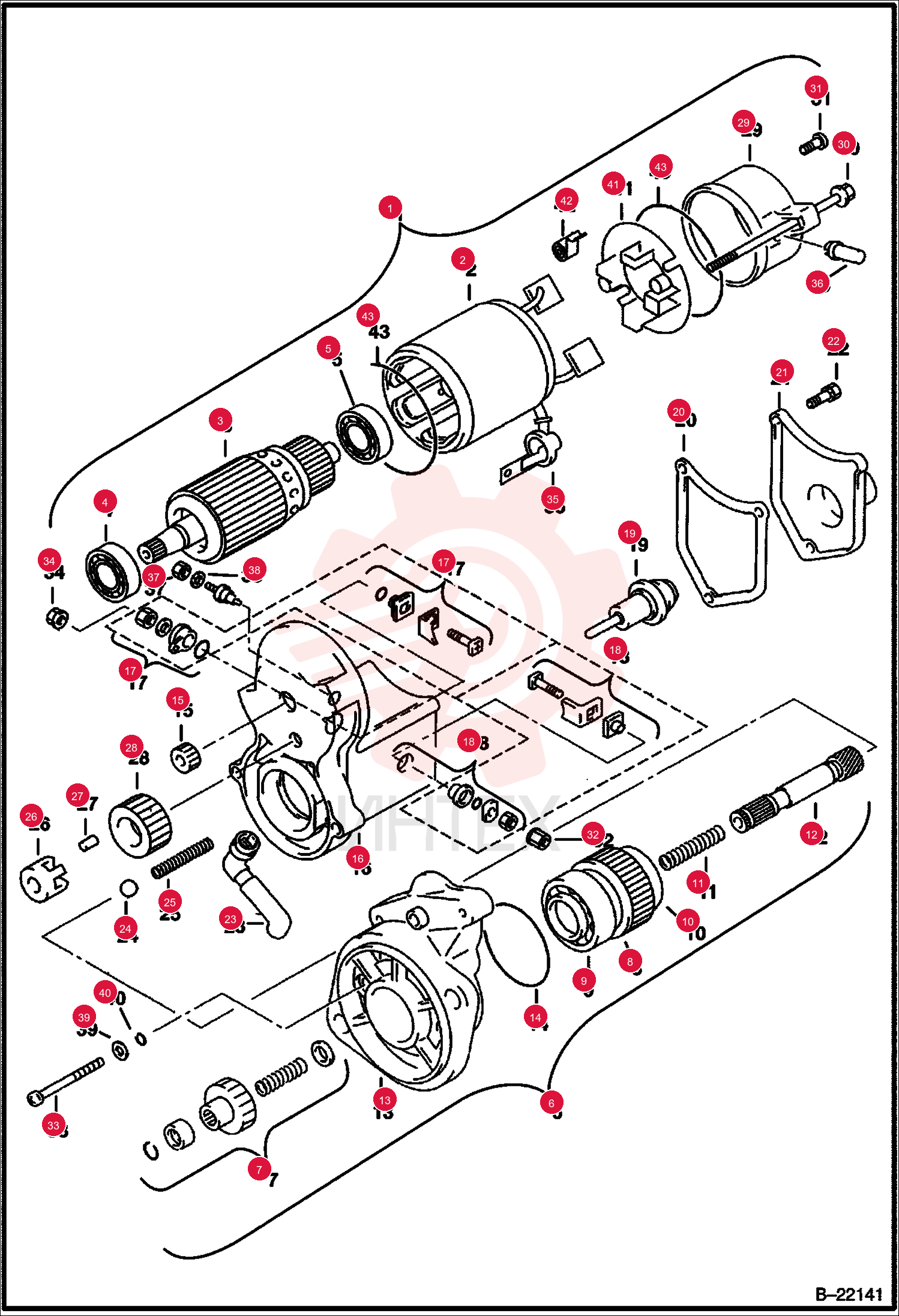

STARTER 6681858 (2)

STARTER 6681858 (2)

STARTER 6681858 (2)

1 6681858

  • 6681858 - STARTER
  • assy

2 6674818

  • 6674818 - ARMATURE

3 6674820

  • 6674820 - CLUTCH
  • assy

4 6672172

  • 6672172 - DRIVEGEAR
  • starter

5 6674821

  • 6674821 - CLUTCH
  • starter

6 6671989

  • 6671989 - BEARING

7 6671990

  • 6671990 - BEARING

8 6671991

  • 6671991 - SPRING

9 6672013

  • 6672013 - O-RING

10 6684729

  • 6684729 - SWITCH

11 6684730

  • 6684730 - STARTER

12 6684731

  • 6684731 - PISTON PLUNGER

13 6674830

  • 6674830 - BOLT

14 6684732

  • 6684732 - BUSHING

15 6674831

  • 6674831 - SPRING

16 6672000

  • 6672000 - RETAINER

17 6671999

  • 6671999 - ROLLER

18 6672001

  • 6672001 - PINION

19 6684733

  • 6684733 - FRAME

20 6672006

  • 6672006 - NUT

21 6672008

  • 6672008 - NUT

22 6672178

  • 6672178 - COVER
  • solenoid

23 6672007

  • 6672007 - BUSHING

24 6672011

  • 6672011 - NUT

25 6672012

  • 6672012 - WASHER

26 6666631

  • 6666631 - O-RING

27 6684734

  • 6684734 - SPRING

28 6671982

  • 6671982 - O-RING
