425.0
/

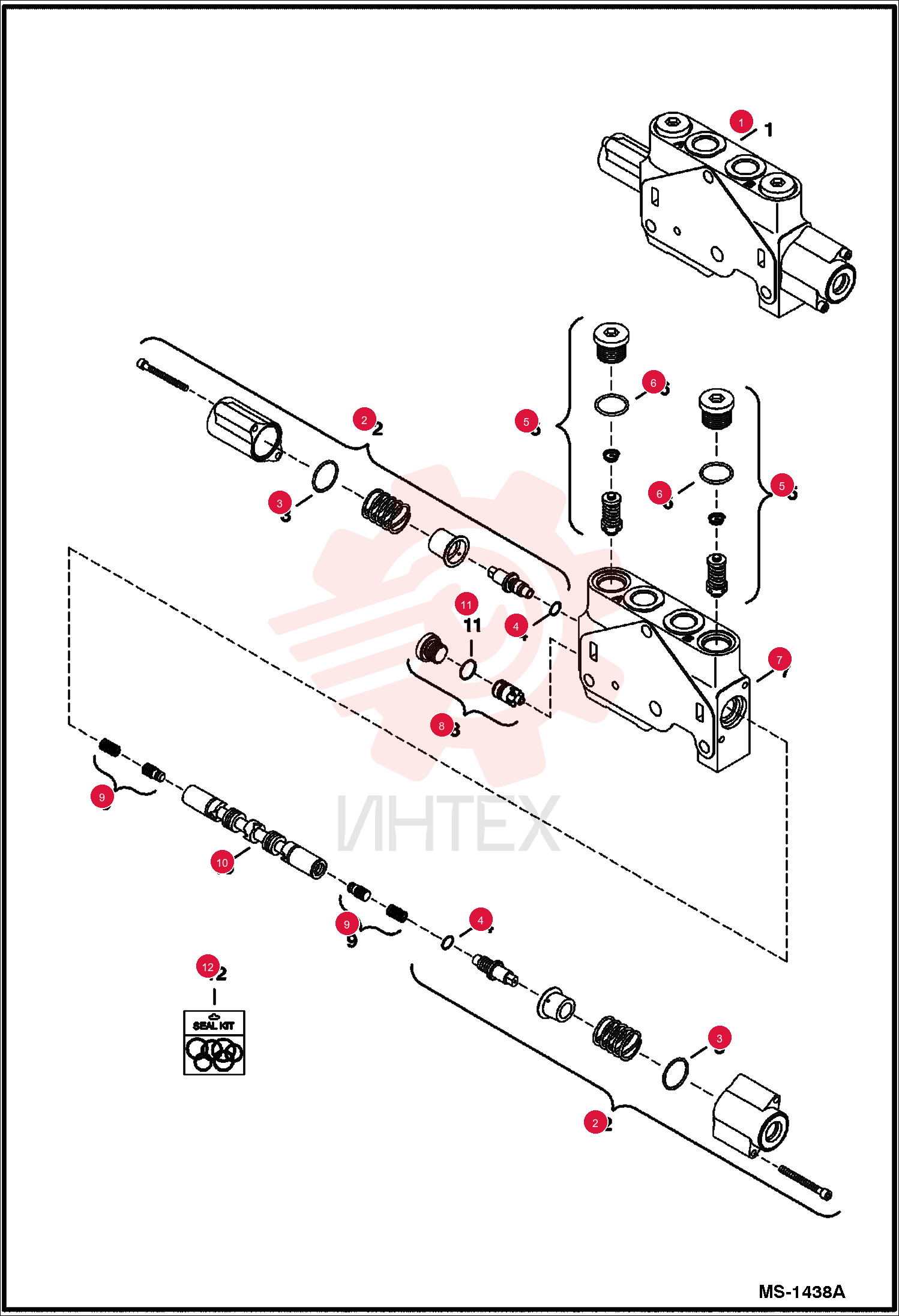

VALVE SECTION 6691122 (1)

VALVE SECTION 6691122 (1)

VALVE SECTION 6691122 (1)

1 6691122

  • 6691122 - VALVE SECTION
  • arm - W/Ref. 2-11 - Was 6691123

2 6687065

  • 6687065 - KIT
  • Was 6691145

3 6691146

  • 6691146 - VALVE RELIEF

4 6687058

  • 6687058 - KIT
  • pressure compensator - Was 6691140

5 6687057

  • 6687057 - KIT
  • Was 6691138

6 6687071

  • 6687071 - KIT
  • SECTION VALVE
  • Includes Ref. 3
  • 4
  • & 6 - Was 6691143
