Bobcat
/
425.0
/

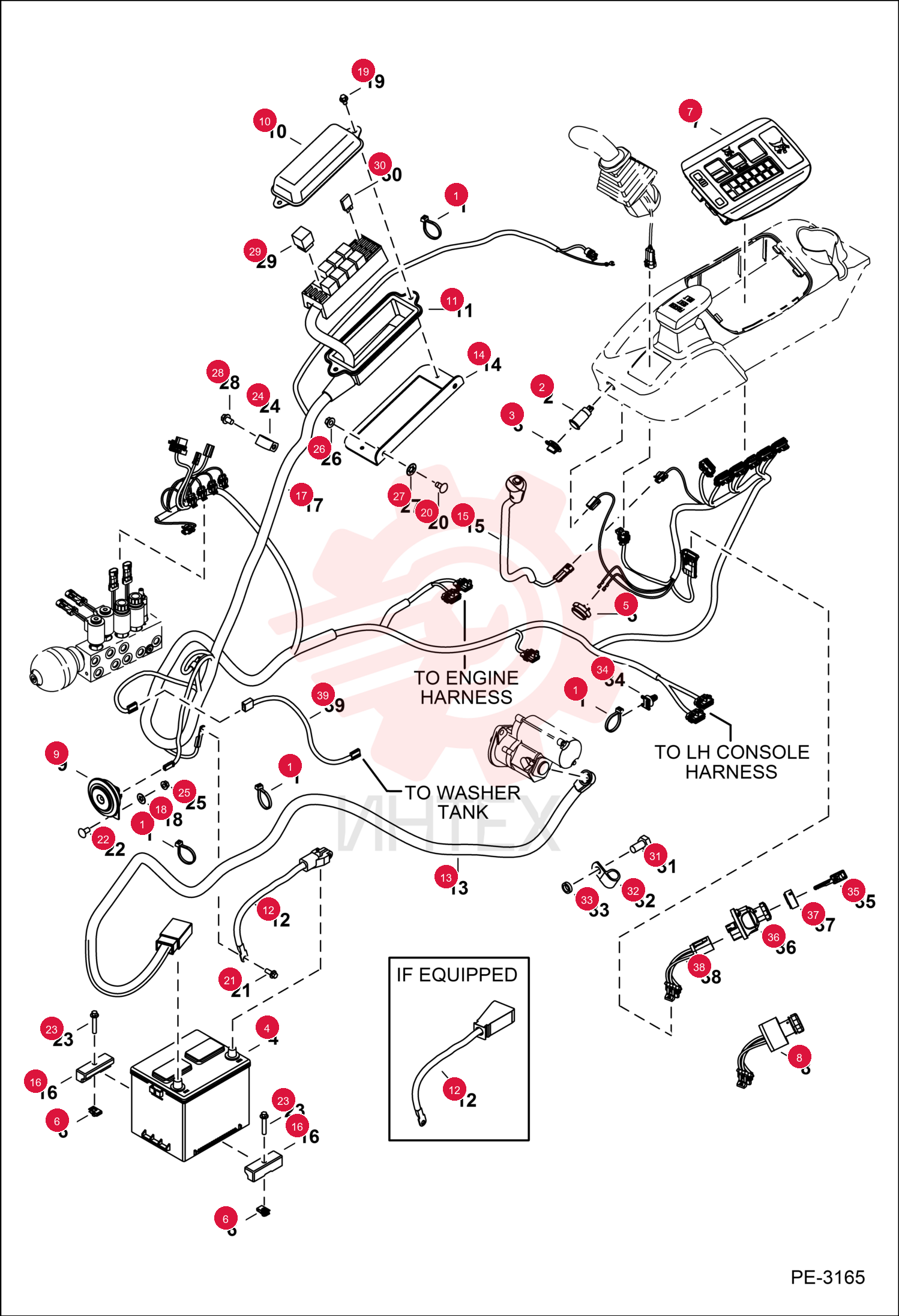

STRAP, TIE 6624289 (3)

STRAP, TIE 6624289 (3)

STRAP, TIE 6624289 (3)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6664223

  • 6664223 - OUTLET ELECTRICAL

3 6664224

  • 6664224 - CAP

4 7269858

  • 7269858 - BATTERY WET 540 CCA
  • - Was 6670251

5 6675705

  • 6675705 - ALARM

6 6676169

  • 6676169 - NUT

7 6691431

  • 6691431 - CONTROLLER
  • KEYLESS PANEL
  • - keyless - Was 6678684

8 6691430

  • 6691430 - CONTROLLER
  • - keyed - Was 6678683

9 6691276

  • 6691276 - ALARM

10 6716621

  • 6716621 - COVER
  • FUSE

11 6718659

  • 6718659 - HOUSING FUSE RELAY

12 6807431

  • 6807431 - CABLE
  • NEGATIVE

13 6809043

  • 6809043 - CABLE
  • POSITIVE
  • pos

14 6809110

  • 6809110 - BRACKET

15 7117038

  • 7117038 - TUBE

16 6675832

  • 6675832 - HANDLE
  • back half

17 6675831

  • 6675831 - HANDLE
  • front half

18 6675721

  • 6675721 - SWITCH
  • momentary

19 7120672

  • 7120672 - TIE DOWN
  • battery

20 7130798

  • 7130798 - HARNESS

21 6675859

  • 6675859 - RETAINER
  • Was 10EM80

22 26GM8016

  • 26GM8016 - SCREW SELF TAPPING

23 28CM1020

  • 28CM1020 - BOLT CARRIAGE 8.8

24 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

25 28CM816

  • 28CM816 - BOLT CARRIAGE 8.8
  • Was 29CM820

26 29CM845

  • 29CM845 - SCREW HEX FLANGE

27 30H50

  • 30H50 - CLAMP

28 43DM8

  • 43DM8 - NUT FLANGED HEX

29 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

30 6674264

  • 6674264 - RETAINER BOLT

31 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

32 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

33 6702444

  • 6702444 - FUSE 25A 5

34 6625575

  • 6625575 - FUSE
  • 20A

35 6654806

  • 6654806 - FUSE
  • 15A

36 6654805

  • 6654805 - FUSE 10A

37 6654803

  • 6654803 - FUSE 5A

38 5CM1020

  • 5CM1020 - SCREW FL THD HEX CAP

39 30H46

  • 30H46 - CLIP

40 6810385

  • 6810385 - BUSHING SPACER

41 6678666

  • 6678666 - MOUNT
  • STRAP TIE

42 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

43 6693245

  • 6693245 - SWITCH
  • IGN
  • W/O attached harness

44 7000328

  • 7000328 - ADAPTER SWITCH

45 6697965

  • 6697965 - HARNESS

46 7169145

  • 7169145 - HARNESS
  • JUMPER
  • modified design
