430.0
/

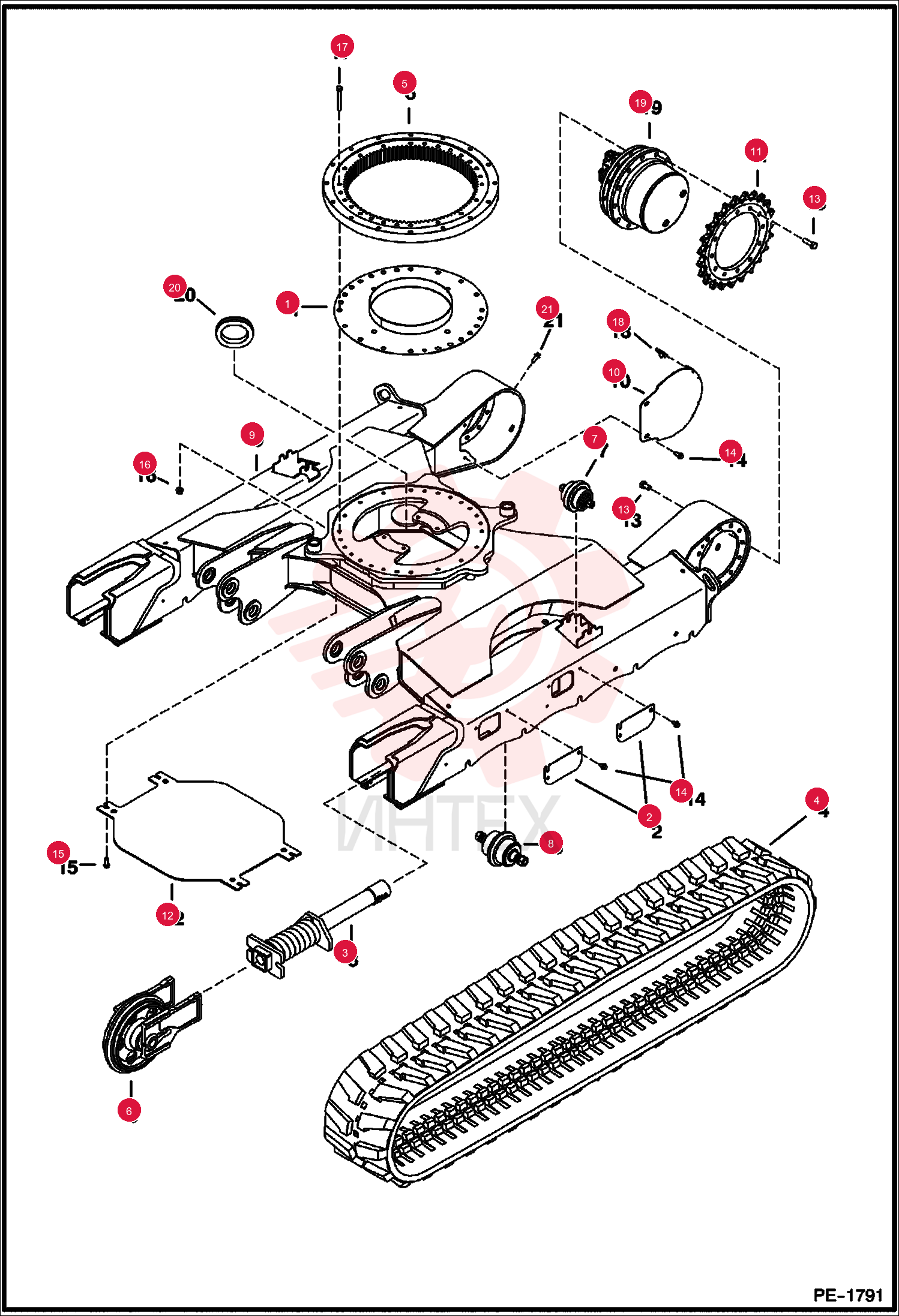

SHIELD 6535548 (3)

SHIELD 6535548 (3)

SHIELD 6535548 (3)

1 6535548

  • 6535548 - SHIELD

2 6596723

  • 6596723 - COVER

3 6678952

  • 6678952 - RING
  • SLEW

4 7161764

  • 7161764 - UNDERCARRIAGE
  • Was 7142044

5 6816483

  • 6816483 - COVER

6 7199007

  • 7199007 - SPROCKET
  • MACHINED
  • Was 7162768SUB

7 7102346

  • 7102346 - COVER
  • PLATE
  • Was 6813288

8 55CM1445

  • 55CM1445 - SCREW

9 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

10 26GM10030

  • 26GM10030 - SCREW SELF TAPPING

11 51DM12

  • 51DM12 - NUT
  • Use W/NLA 6810822 undercarriage

12 7161099

  • 7161099 - BOLT
  • Use W/7128367 undercarriage - Was 55CM1280

13 7CM1290

  • 7CM1290 - SCREW
  • Use W/NLA 6810822 undercarriage

14 6675722

  • 6675722 - NUT

15 6683380

  • 6683380 - MOTOR
  • DRIVE HYD

16 7127210

  • 7127210 - GROMMET

17 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP
