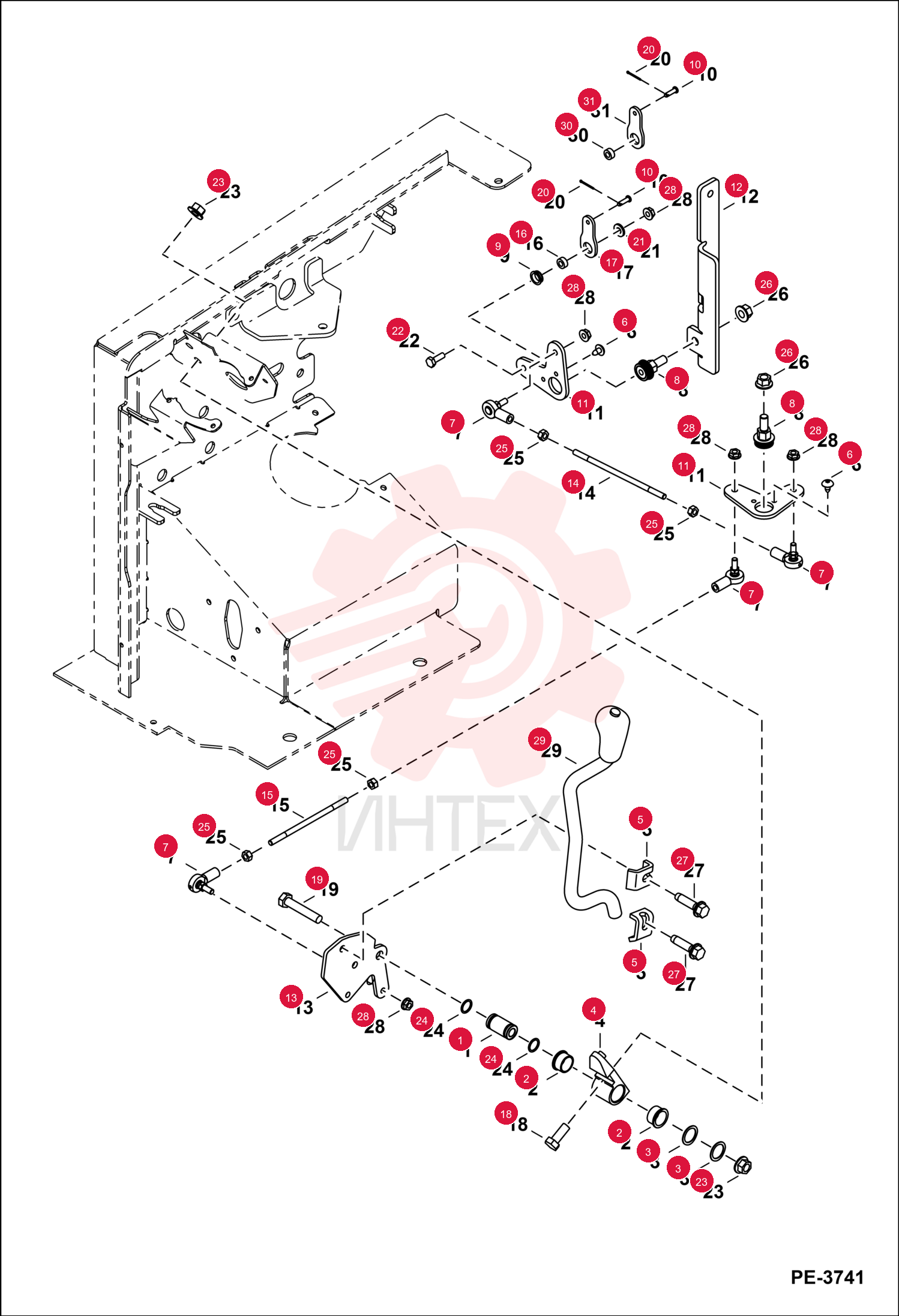

SLEEVE 6536545 (5)
1 6536545
- 6536545 - SLEEVE
2 6536801
- 6536801 - BUSHING
3 6536802
- 6536802 - WASHER
4 6537481
- 6537481 - MOUNT
5 6562266
- 6562266 - CLAMP TUBE
6 6589675
- 6589675 - SCREW
7 6631036
- 6631036 - BALLJOINT
8 6675992
- 6675992 - BEARING
9 6698186
- 6698186 - BEARING
- CLIP
- modified design - Use W/Ref. 16 & 17
10 6801068
- 6801068 - PIN
11 6812938
- 6812938 - BELLCRANK
12 7146674
- 7146674 - BRACKET
- CONTROL BLADE
13 7147269
- 7147269 - PLATE
- CONTROL BLADE
14 7147432
- 7147432 - ROD
- THREADED
15 7147432
- 7147432 - ROD
- THREADED
16 7155219
- 7155219 - ROD
- THREADED
17 7155449
- 7155449 - SPACER
- modified design - Use W/Ref. 9 & 17
18 7157679
- 7157679 - LINK
- SPOOL
- modified design - Use W/Ref. 9 & 16
19 1CM1025
- 1CM1025 - BOLT
20 1CM1055
- 1CM1055 - BOLT
21 1F212
- 1F212 - PIN
22 25E13
- 25E13 - WASHER FLAT PLAIN
23 18C412
- 18C412 - BOLT
24 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
25 58K015
- 58K015 - O-RING 10
26 62D4
- 62D4 - NUT HEX FINISHED GR5
27 83D6
- 83D6 - LKNUT HEX FLG GR8
28 84G3720
- 84G3720 - SCREW THD ROLLING TT
29 98D4
- 98D4 - NUT
30 7117038
- 7117038 - TUBE
31 6675832
- 6675832 - HANDLE
- back half
32 6675721
- 6675721 - SWITCH
- momentary
33 6675831
- 6675831 - HANDLE
- front half
