Bobcat
/
435.0
/

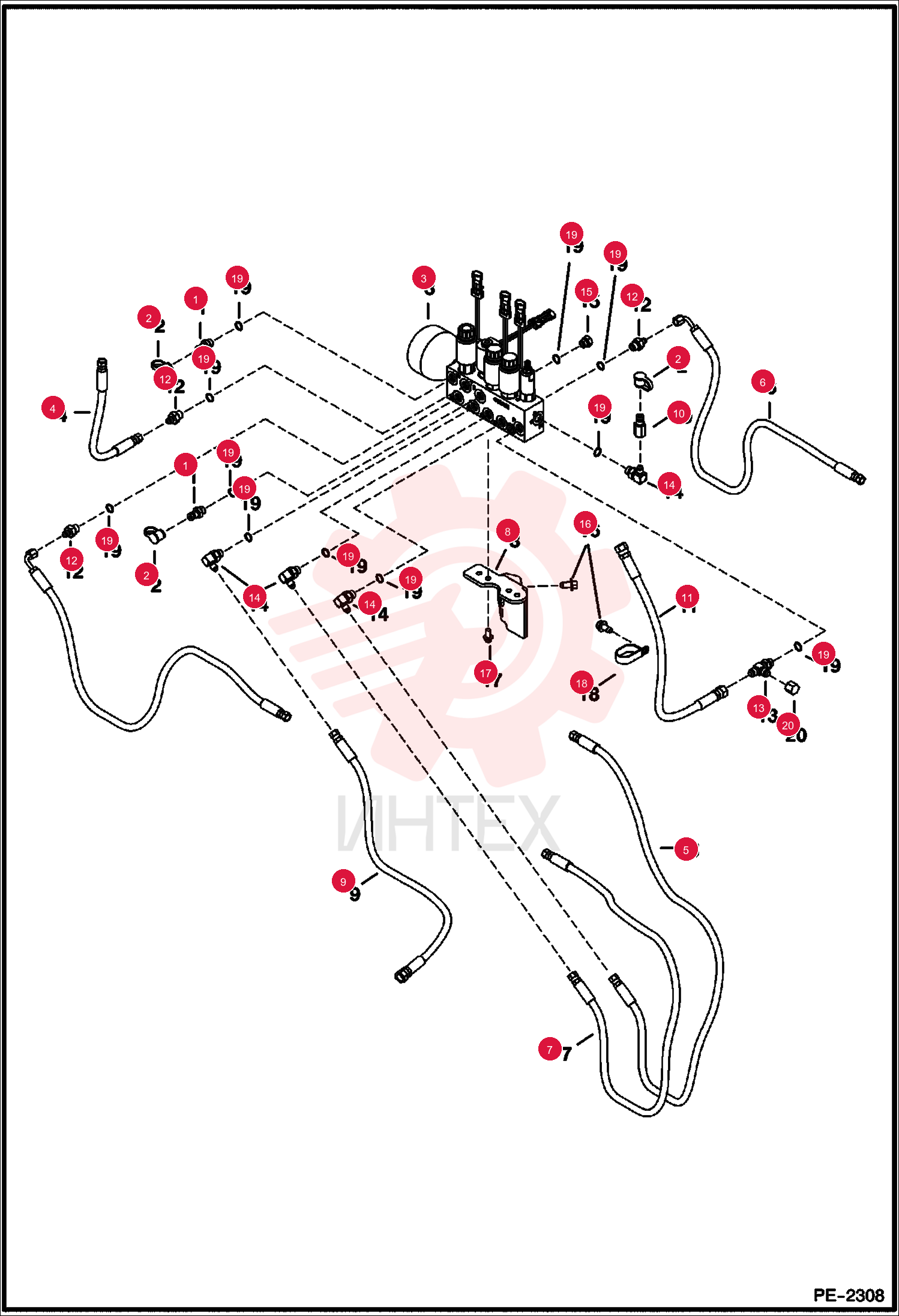

COUPLER, DIAGNOSTIC 6630168

COUPLER, DIAGNOSTIC 6630168

COUPLER, DIAGNOSTIC 6630168

1 6630168

  • 6630168 - COUPLER
  • DIAGNOSTIC

2 6630367

  • 6630367 - CAP

3 7125149

  • 7125149 - HOSE
  • Was 6706228

4 7106597

  • 7106597 - HOSE
  • Was 6802066

5 7106600

  • 7106600 - HOSE
  • Was 6807945

6 6812855

  • 6812855 - HOSE

7 7109134

  • 7109134 - BRACKET

8 6813694

  • 6813694 - BRACKET

9 7107673

  • 7107673 - HOSE
  • Was 6815221

10 7000009

  • 7000009 - PLUG

11 7107843

  • 7107843 - HOSE
  • Was 6800260

12 15KB0406

  • 15KB0406 - FITTING
  • HYD CONNECTOR
  • W/Ref. 19 - flat boss face

13 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR
  • W/O hydraulic exchange option - W/Ref. 19

14 21KB0606

  • 21KB0606 - FITTING
  • HYD TEE
  • W/hydraulic exchange option - W/Ref. 19

15 17KB0406

  • 17KB0406 - FITTING
  • HYD ELBOW
  • W/Ref. 19

16 24K5

  • 24K5 - PLUG

17 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

18 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

19 31H38

  • 31H38 - CLAMP

20 79K6

  • 79K6 - O RING 10

21 36K5

  • 36K5 - CAP
