435.0
/

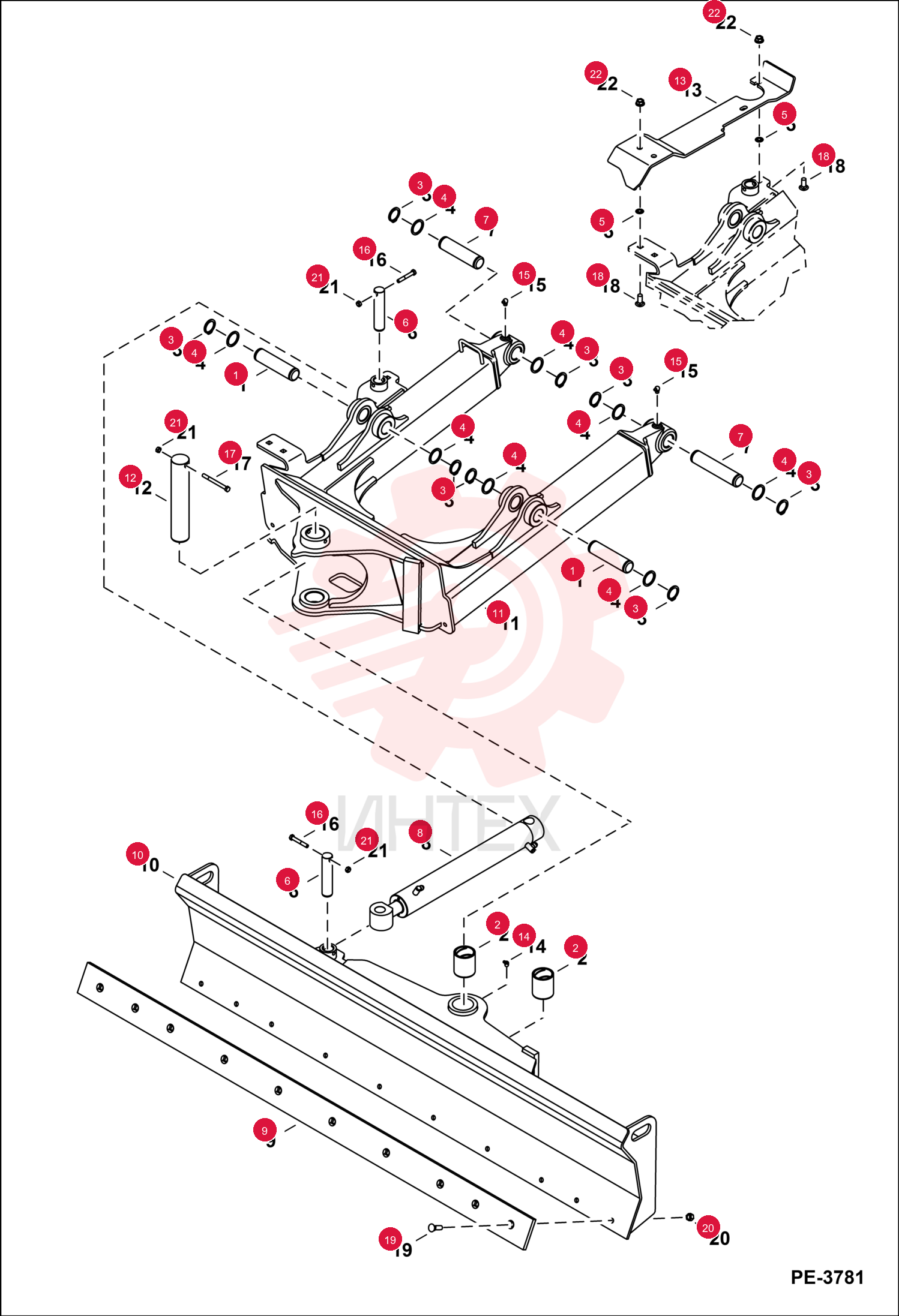

PIN 6597461 (2)

PIN 6597461 (2)

PIN 6597461 (2)

1 6597461

  • 6597461 - PIN

2 6597689

  • 6597689 - BUSHING
  • PRESS FIT

3 6665618

  • 6665618 - RING
  • SNAP

4 6666549

  • 6666549 - WASHER

5 6685062

  • 6685062 - RETAINER
  • BOLT

6 6702935

  • 6702935 - PIN
  • PIVOT

7 6813208

  • 6813208 - PIN

8 7134017

  • 7134017 - CYLINDER

9 7156778

  • 7156778 - EDGE
  • CUTTING BOLT-ON 76"

10 7156967

  • 7156967 - BLADE
  • EXCAVATOR W/A

11 7156968

  • 7156968 - ARM
  • BLADE

12 7156988

  • 7156988 - PIN

13 7156989

  • 7156989 - GUARD
  • BLADE ANGLE

14 11H15

  • 11H15 - FTG GREASE STRAIGHT

15 12H15

  • 12H15 - FTG GREASE 90

16 17C640

  • 17C640 - BOLT

17 17C664

  • 17C664 - BOLT

18 37C820

  • 37C820 - BOLT SQ NECK RND HD

19 39C828

  • 39C828 - BOLT

20 63D8

  • 63D8 - NUT

21 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

22 97D8

  • 97D8 - NUT
