Главная
/
Бренды
/
Bobcat
/
435.0
/

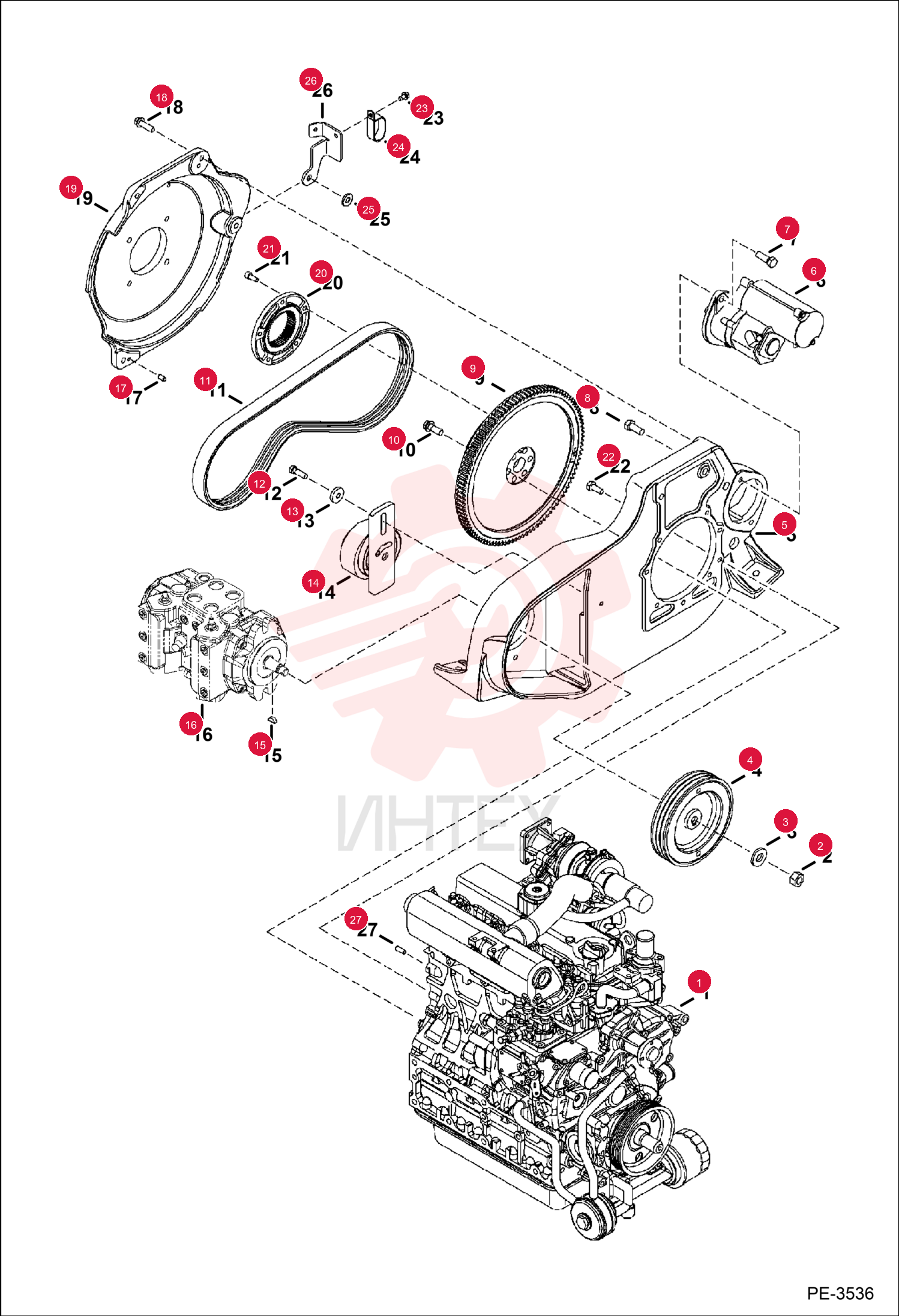

NUT 96D10 (3)

NUT 96D10 (3)

NUT 96D10 (3)

1 96D10

  • 96D10 - NUT

2 27E10

  • 27E10 - WASHER

3 7125003

  • 7125003 - PULLEY

4 7127604

  • 7127604 - MOUNT
  • ENGINE

5 6681858

  • 6681858 - STARTER

6 4CM1235

  • 4CM1235 - BOLT
  • Was 1CM1235

7 6719828

  • 6719828 - BOLT

8 14J1808

  • 14J1808 - PIN

9 6510470

  • 6510470 - ВЕНЕЦ МАХОВИКА
  • BOBCAT

10 RG60000

  • RG60000 - ВЕНЕЦ МАХОВИКА
  • AUTOWELT

11 7161408

  • 7161408 - FLYWHEEL ENGINE ASSEMBLY
  • - Was 7152035

12 6598275

  • 6598275 - BOLT

13 7125004

  • 7125004 - BELT

14 17C620

  • 17C620 - BOLT

15 6704484

  • 6704484 - WASHER

16 7101660

  • 7101660 - IDLER ASSEMBLY
  • assy

17 5J806

  • 5J806 - KEY

18 7101341

  • 7101341 - PIN

19 29CM1035

  • 29CM1035 - SCREW HEX 10MMX35MM

20 6811732

  • 6811732 - HOUSING

21 6670757

  • 6670757 - COUPLER
  • FLANGE

22 3GM820

  • 3GM820 - SCREW

23 6719825

  • 6719825 - SCREW FLTHD HEX CAP

24 26GM8016

  • 26GM8016 - SCREW SELF TAPPING

25 31H42

  • 31H42 - CLIP

26 15EM100

  • 15EM100 - WASHER

27 7102968

  • 7102968 - BRACKET

28 23JM1024

  • 23JM1024 - PIN HARDENED PARALLE
  • - Was 20JM1025
