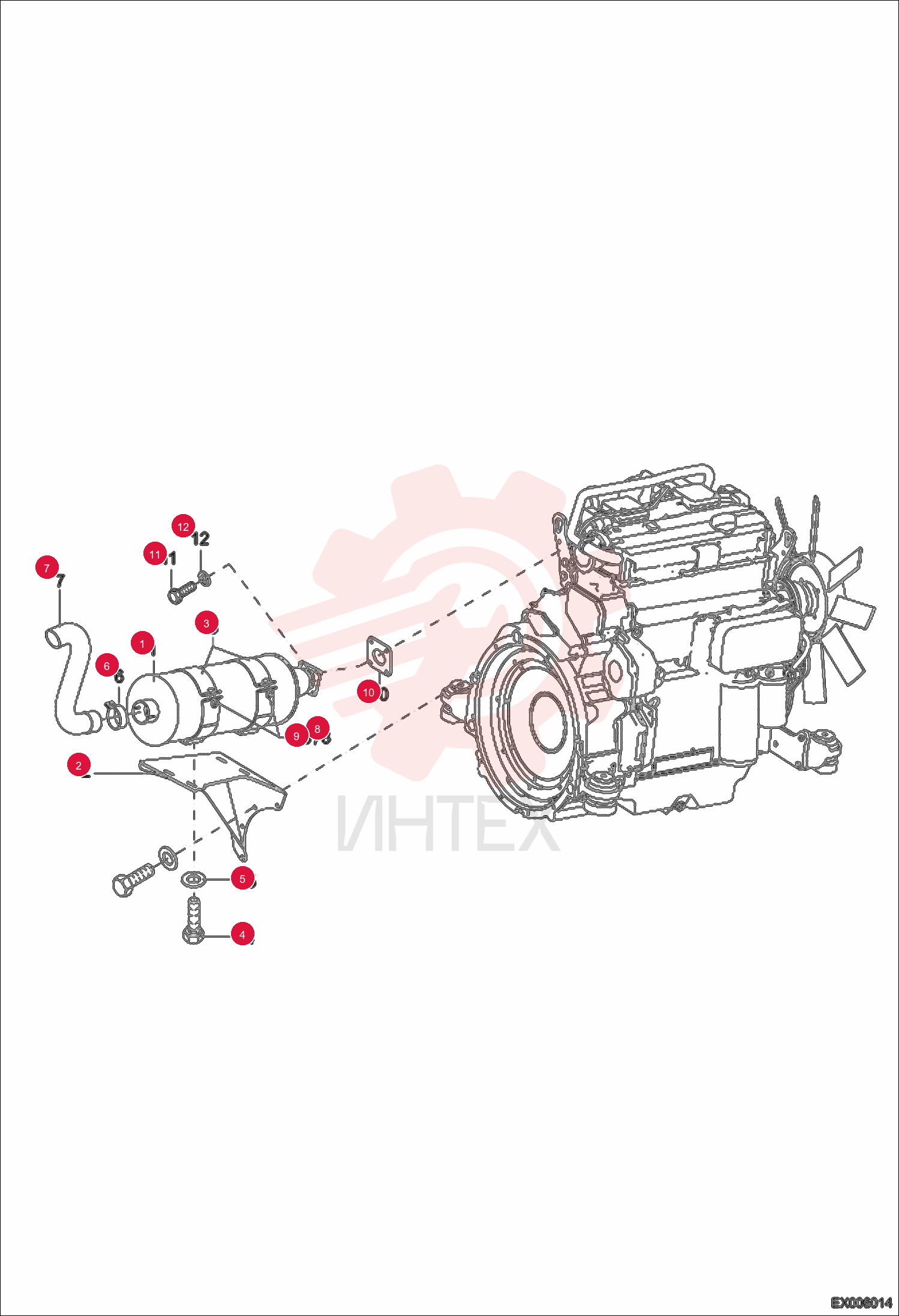

SILENCER 5761659750 (2)

SILENCER 5761659750 (2)

SILENCER 5761659750 (2)

1 5761659750

  • 5761659750 - SILENCER

2 6207516016

  • 6207516016 - SUPPORT
  • EXHAUST

3 5501660675

  • 5501660675 - BRACKET

4 1008707018

  • 1008707018 - BOLT

5 1343707057

  • 1343707057 - WASHER

6 5761660035

  • 5761660035 - CLIP
  • PIPE

7 0207516030

  • 0207516030 - PIPE
  • EXHAUST

8 1045707719

  • 1045707719 - BOLT

9 1210707011

  • 1210707011 - NUT

10 5411664496

  • 5411664496 - SEAL

11 5411664497

  • 5411664497 - STUD

12 5411656427

  • 5411656427 - NUT
