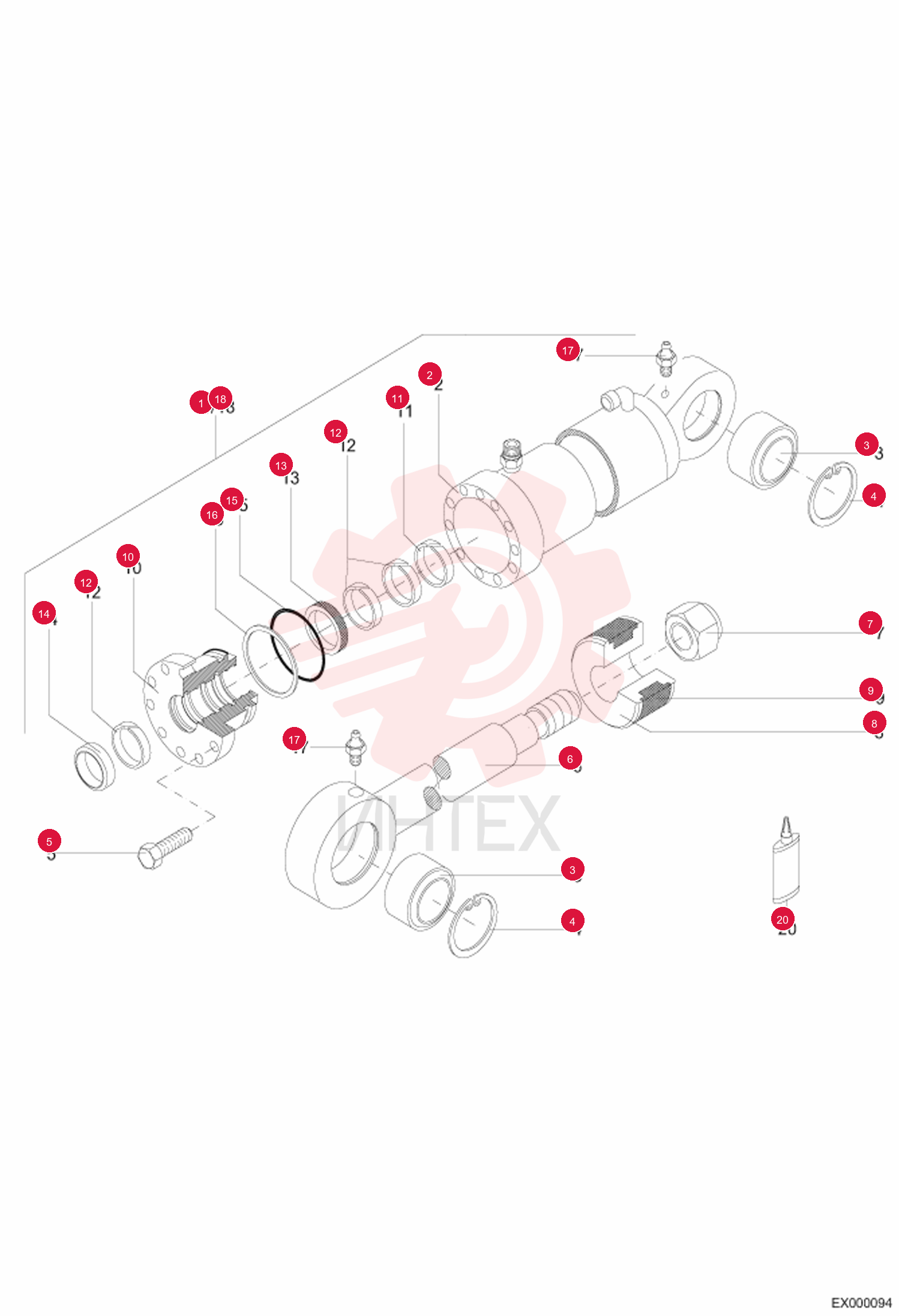

CYLINDER, HYD 6500782000 (1)

CYLINDER, HYD 6500782000 (1)

CYLINDER, HYD 6500782000 (1)

1 6500782000

  • 6500782000 - CYLINDER
  • HYD
  • Includes Ref. 2 to 16

2 6500782003

  • 6500782003 - TUBE
  • CYL

3 1950000814

  • 1950000814 - LINKAGE BEARING

4 1456622363

  • 1456622363 - CIRCLIP

5 1017341424

  • 1017341424 - BOLT
  • M10X40

6 6500760011

  • 6500760011 - ROD
  • PISTON

7 1212251832

  • 1212251832 - NUT
  • Secure with SCHAEFFLOCK 2070

8 0500760015

  • 0500760015 - PISTON

9 1634935661

  • 1634935661 - PISTON SEAL

10 0500782017

  • 0500782017 - BUSHING
  • PIERCING

11 5060502050

  • 5060502050 - ROD SEAL

12 5060501050

  • 5060501050 - ROAD SEAL

13 1965956565

  • 1965956565 - SEAL
  • ROAD

14 1974955050

  • 1974955050 - RING
  • SCRAPER

15 1971958509

  • 1971958509 - O-RING

16 1966960908

  • 1966960908 - BACK UP RING

17 1607003006

  • 1607003006 - GREASE NIPPLE

18 1976999084

  • 1976999084 - KIT
  • SEAL
  • Includes Ref. 7 + 9 + 11 to 16
