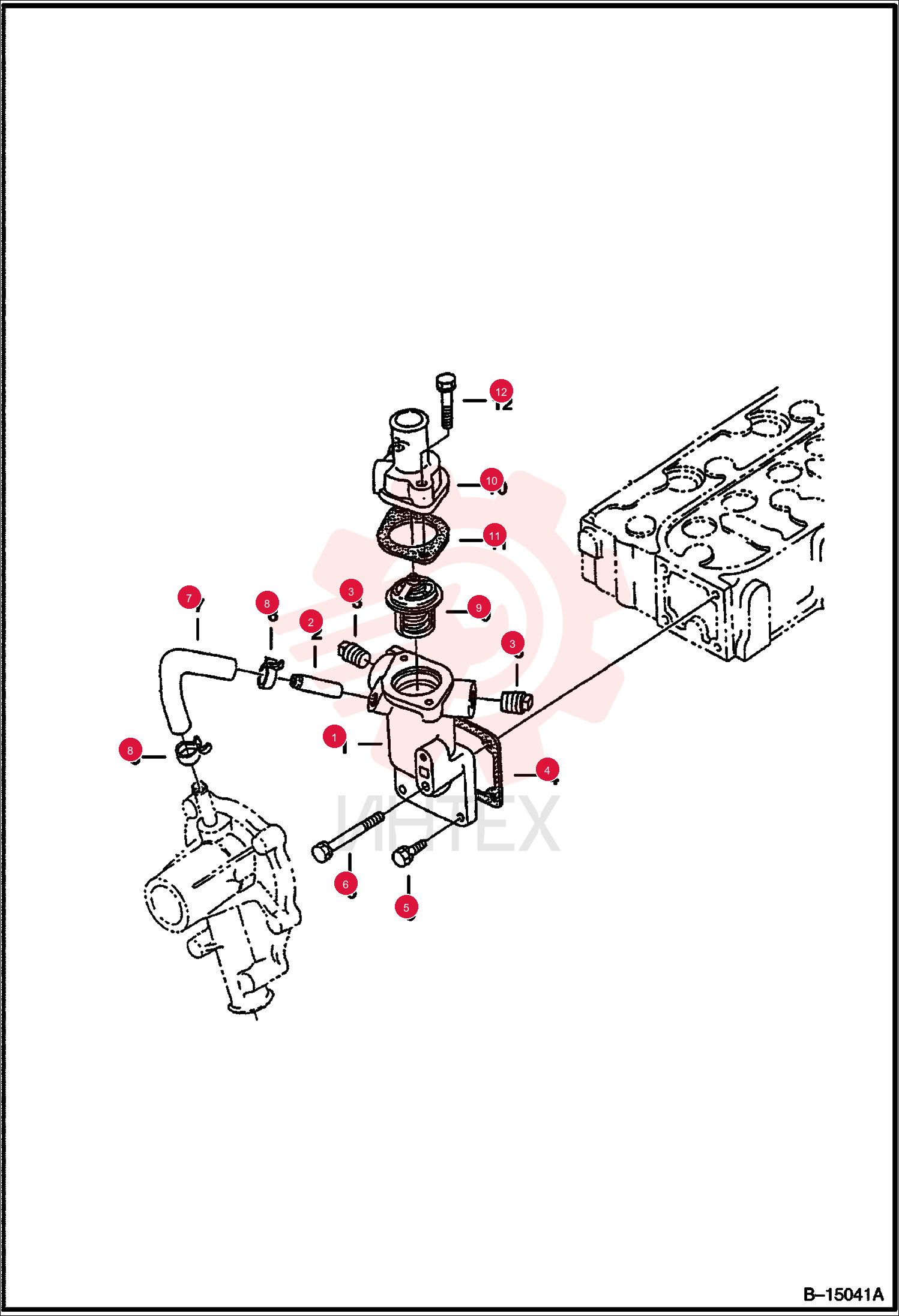

HOUSING 6672482 (3)

HOUSING 6672482 (3)

HOUSING 6672482 (3)

1 6672482

  • 6672482 - HOUSING
  • W/Ref. 2

2 6670785

  • 6670785 - ADAPTER

3 6684857

  • 6684857 - PLUG
  • Was 6670504

4 6657583

  • 6657583 - GASKET
  • Was 6672444

5 1CM616

  • 1CM616 - SCREW HEX CAP
  • Was 4CM616

6 6657413

  • 6657413 - BOLT

7 6657584

  • 6657584 - PIPE

8 6680580

  • 6680580 - CLAMP
  • Was 6652748

9 6680512

  • 6680512 - THERMOSTAT

10 6672479

  • 6672479 - COVER

11 6684863

  • 6684863 - GASKET

12 1CM835

  • 1CM835 - BOLT
