Bobcat
/
463
/

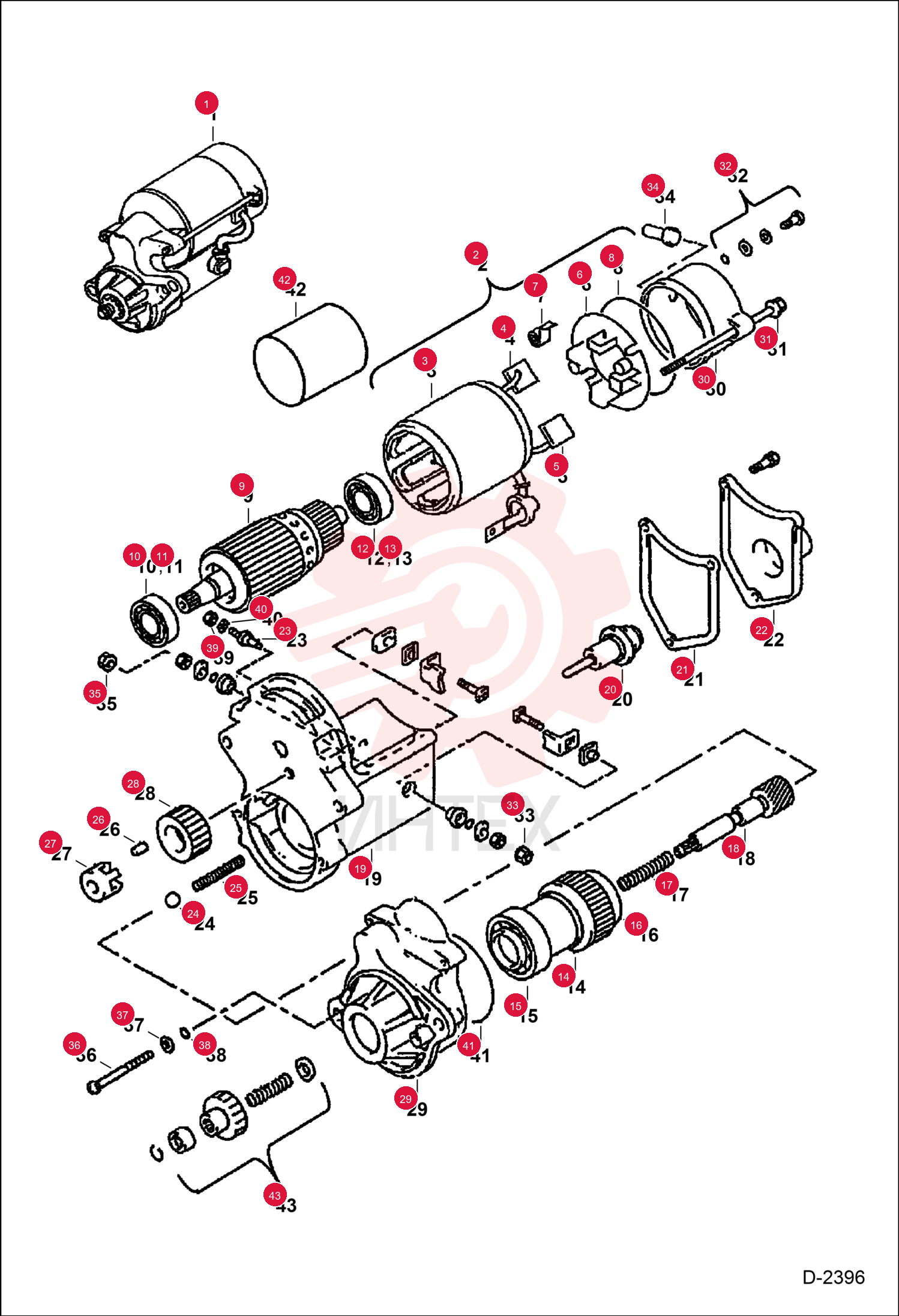

STARTER 6667987 (2)

STARTER 6667987 (2)

STARTER 6667987 (2)

1 6667987

  • 6667987 - STARTER
  • Was 6667987EF

2 6667987REM

  • 6667987REM - STARTER

3 6667987

  • 6667987 - STARTER

4 6671976

  • 6671976 - YOKE
  • W/Ref. 3-8 & 42

5 6671977

  • 6671977 - YOKE
  • W/Ref. 4

6 6671978

  • 6671978 - BRUSH KIT

7 6671979

  • 6671979 - BRUSH KIT

8 6671980

  • 6671980 - HOLDER
  • W/Ref. 7

9 6671981

  • 6671981 - SPRING

10 6671982

  • 6671982 - O-RING

11 6671983

  • 6671983 - ARMATURE
  • W/Ref. 10-13

12 6671986

  • 6671986 - BEARING

13 6671987

  • 6671987 - BEARING

14 6671988

  • 6671988 - CLUTCH
  • W/Ref. 15 & 16

15 6671989

  • 6671989 - BEARING

16 6671990

  • 6671990 - BEARING

17 6671991

  • 6671991 - SPRING

18 6671993

  • 6671993 - HOUSING

19 6671994

  • 6671994 - PLUNGER

20 6671995

  • 6671995 - GASKET

21 6671996

  • 6671996 - COVER

22 6671997

  • 6671997 - BOLT

23 6632435

  • 6632435 - BALL

24 6671998

  • 6671998 - SPRING

25 6671999

  • 6671999 - ROLLER

26 6672000

  • 6672000 - RETAINER

27 6672001

  • 6672001 - PINION

28 6672002

  • 6672002 - HOUSING

29 6672003

  • 6672003 - FRAME

30 6672004

  • 6672004 - BOLT

31 6672005

  • 6672005 - SCREW
  • W/ O-rings

32 6672006

  • 6672006 - NUT

33 6672007

  • 6672007 - BUSHING

34 6672008

  • 6672008 - NUT

35 6672009

  • 6672009 - BOLT

36 6672010

  • 6672010 - WASHER

37 6666631

  • 6666631 - O-RING

38 6672011

  • 6672011 - NUT

39 6672012

  • 6672012 - WASHER

40 6672013

  • 6672013 - O-RING

41 6672205

  • 6672205 - COVER

42 6672172

  • 6672172 - DRIVEGEAR
