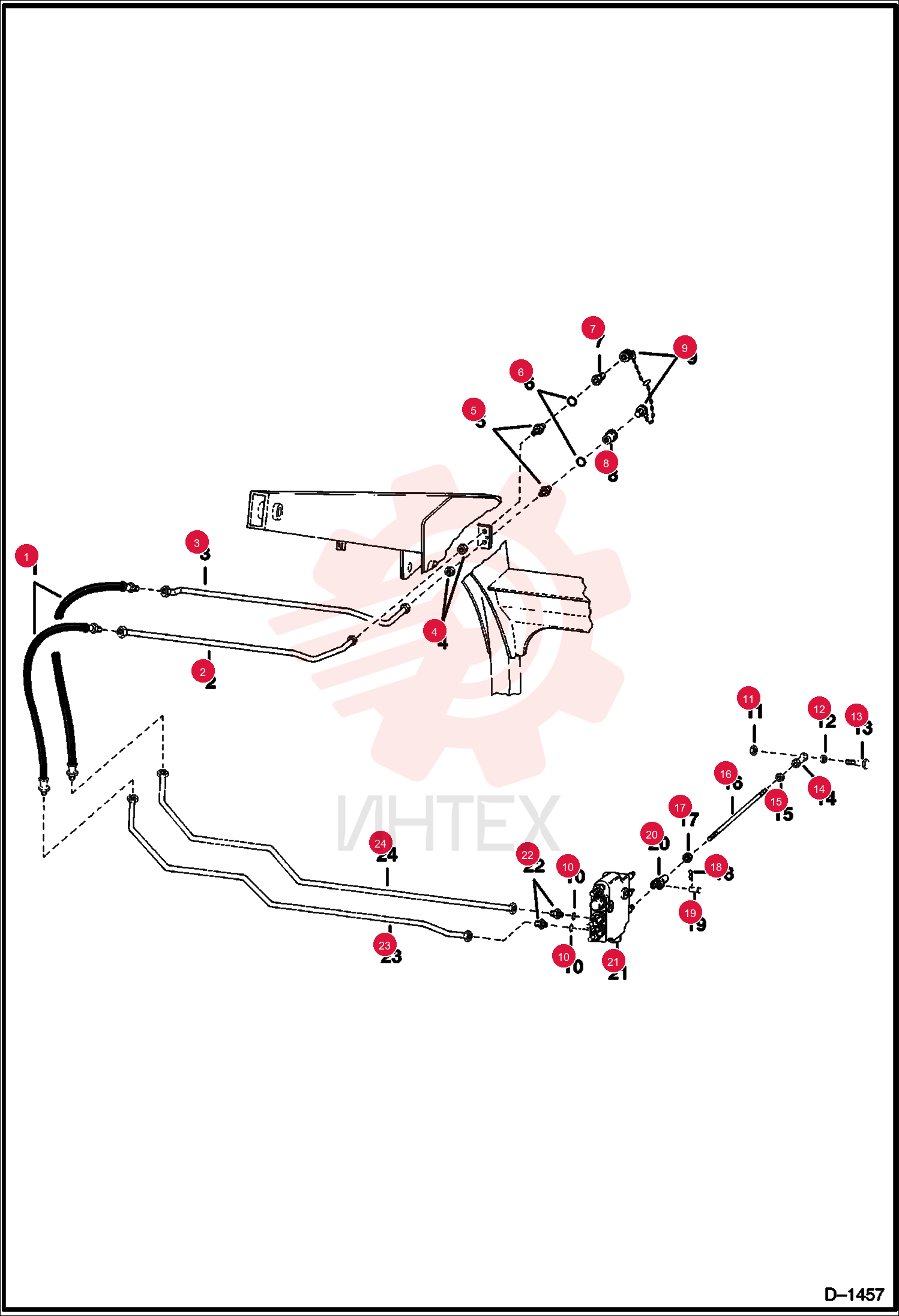

HOSES 6558484 (1)

HOSES 6558484 (1)

HOSES 6558484 (1)

1 6558484

  • 6558484 - HOSES

2 6558415

  • 6558415 - TUBE
  • Was 6558730

3 6558414

  • 6558414 - TUBELINE

4 86F7

  • 86F7 - NUT 5

5 45K7

  • 45K7 - CONNECTR
  • W/Ref. 6

6 79K10

  • 79K10 - O RING 10

7 6598757

  • 6598757 - COUPLER
  • POPPET MALE
  • straight

8 6598758

  • 6598758 - COUPLER FF FEMALE
  • straight

9 48K16

  • 48K16 - O RING 10

10 6665430

  • 6665430 - RING
  • BACK-UP

11 6513709

  • 6513709 - CAP AND PLUG
  • assy. - Rubber

12 6515167

  • 6515167 - CAP
  • Steel

13 6515168

  • 6515168 - CAP
  • Steel

14 79K8

  • 79K8 - O RING 10

15 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

16 6557831

  • 6557831 - WASHER CONTROLS

17 17C620

  • 17C620 - BOLT

18 6512955

  • 6512955 - CONNECTOR ROD END
  • LH threads

19 13D6

  • 13D6 - NUT LH HEX JAM

20 6567057

  • 6567057 - ROD

21 8D6

  • 8D6 - NUT HEX JAM

22 6513495

  • 6513495 - PIN 5

23 6559014

  • 6559014 - PIN
  • CLEVIS

24 6560526

  • 6560526 - CLEVIS

25 6562031

  • 6562031 - VALVE
  • HYDRAULIC

26 15K6

  • 15K6 - ADAPTER
  • W/Ref. 9

27 6557150

  • 6557150 - TUBE ASSEMBLY

28 6553458

  • 6553458 - TUBE
