Bobcat
/
543.0
/

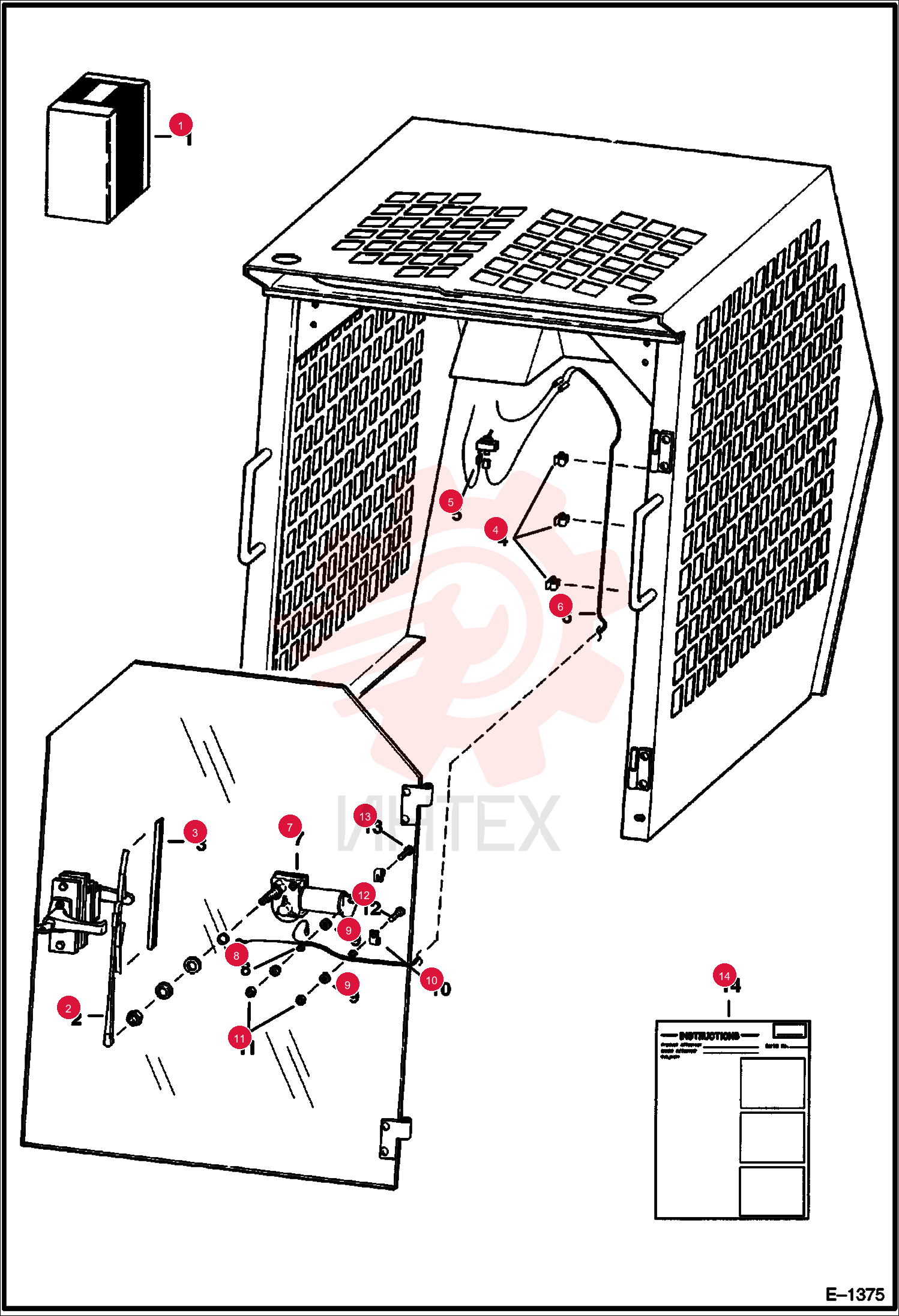

KIT, WIPER 6562123 (1)

KIT, WIPER 6562123 (1)

KIT, WIPER 6562123 (1)

1 6562123

  • 6562123 - KIT
  • WIPER
  • wiper - Ref. 2-14

2 1744552

  • 1744552 - ARM
  • Was 852454B

3 1550697

  • 1550697 - BLADE

4 6514850

  • 6514850 - CLIP

5 6515521

  • 6515521 - SWITCH

6 6561592

  • 6561592 - HARNESS
  • WIPER

7 6561971

  • 6561971 - MOTOR

8 12E10

  • 12E10 - WASHER

9 25E10

  • 25E10 - WASHER FLAT PLAIN

10 30H14

  • 30H14 - CLIP

11 51D10

  • 51D10 - NUT

12 86G1012

  • 86G1012 - SCREW AF

13 86G1016

  • 86G1016 - SCREW

14 6556703

  • 6556703 - INSTRUCTIONS
