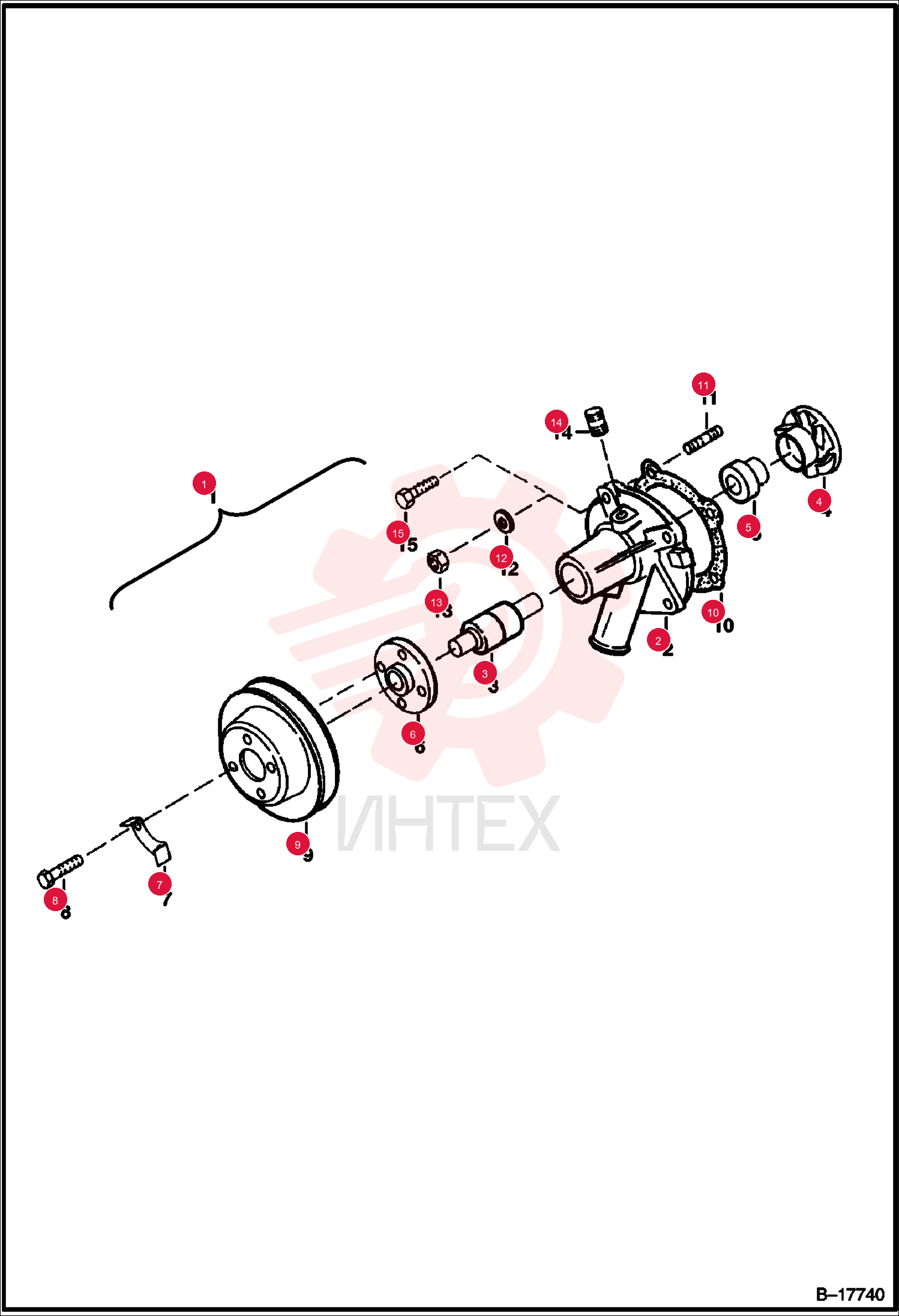

PUMP, WATER 6652753

PUMP, WATER 6652753

PUMP, WATER 6652753

1 6652753

  • 6652753 - PUMP
  • WATER
  • Ref. 2-6

2 6599123

  • 6599123 - BEARING

3 6599061

  • 6599061 - IMPELLER

4 6649319

  • 6649319 - SEAL

5 6599090

  • 6599090 - WASHER
  • Use without flanged bolt

6 29CM612

  • 29CM612 - BOLT
  • FLANGED
  • Was 6652762

7 6599063

  • 6599063 - PULLEY

8 6666797

  • 6666797 - GASKET
  • Was 6599120

9 6599750

  • 6599750 - STUD

10 6EM60

  • 6EM60 - WASHER
  • spring

11 1DM6

  • 1DM6 - NUT

12 6599131

  • 6599131 - PIPE
  • Screw In

13 6649537

  • 6649537 - PIPE
  • Press In

14 1CM625

  • 1CM625 - BOLT
  • Was 4CM625
