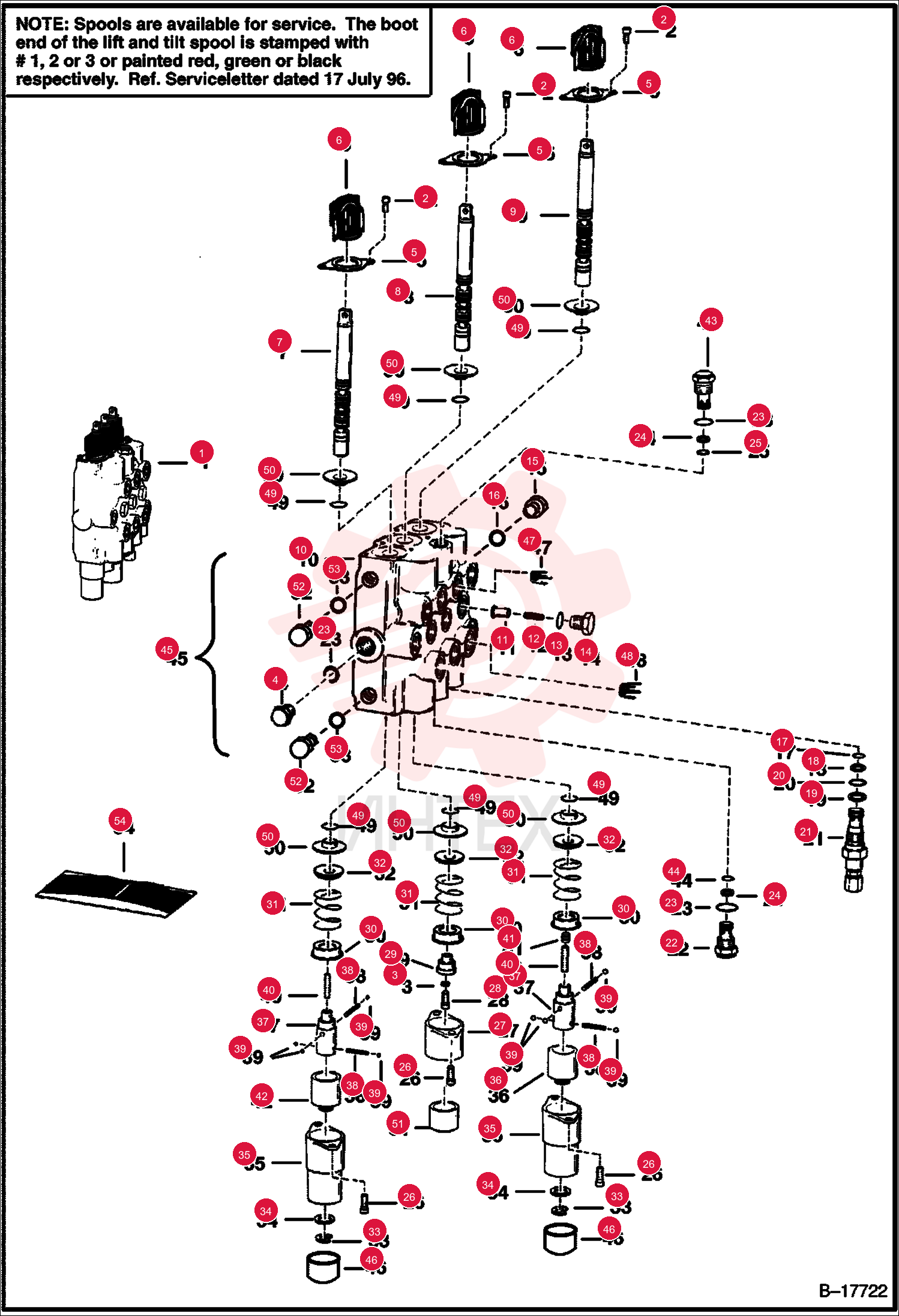

SCREW 6588165
1 6588165
- 6588165 - SCREW
2 22E4
- 22E4 - WASHER
3 24K7
- 24K7 - PLUG
- W/Ref. 23
4 6592123
- 6592123 - RETAINER
5 6587763
- 6587763 - BOOT
6 6589663
- 6589663 - SPOOL AUX
- auxiliary - Was NSS
7 6666591
- 6666591 - SPOOL
- TILT
- Tilt - #1 or red - See note
8 6666592
- 6666592 - SPOOLTILT
- Tilt - #2 or green - See note
9 6666593
- 6666593 - SPOOL
- TILT
- Tilt - #3 or black - See note
10 6666588
- 6666588 - SPOOL BOM
- Lift - #1 or red - See note
11 6666589
- 6666589 - SPOOL BOM
- Lift - #2 or green - See note
12 6666590
- 6666590 - SPOOL BOM
- Lift - #3 or black - See note
13 6592115
- 6592115 - SEAT
14 6592117
- 6592117 - SPRING
- LOAD CHECK
15 79K8
- 79K8 - O RING 10
16 6592116
- 6592116 - NUT
17 24K8
- 24K8 - PLUG
- W/Ref. 16 - Flat Boss Face
18 24K8
- 24K8 - PLUG
- W/Ref. 16 - Tapered Boss Face - Was 24KN00008B
19 79K10
- 79K10 - O RING 10
- Flat Boss Face
20 99K10
- 99K10 - O-RING
- Tapered Boss Face
21 7219324
- 7219324 - VALVE
- RELIEF
- W/ O-rings - pressure to be set in field - Was 6686360
22 6667549
- 6667549 - VALVE
- CHECK
- anti-cav. check - W/Ref. 23
- 24 & 44 - Was 6665533
23 79K10
- 79K10 - O RING 10
24 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
25 58K014
- 58K014 - O-RING 10
- back-up washer required
26 6677106
- 6677106 - O-RING
- BACK-UP WASHER NOT REQUIRED
27 29G416
- 29G416 - BOLT
- Was 6588982
28 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- Was 6587633
29 6592109
- 6592109 - ADAPTER
30 6592100
- 6592100 - COLLAR
31 6587580
- 6587580 - SPRING
32 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
33 799119
- 799119 - RING
34 6592098
- 6592098 - WASHER
35 6589226
- 6589226 - COVER
- END
- 0.63" flange
36 6531270
- 6531270 - SLEEVE
- DETENT
- lift
37 6587575
- 6587575 - ADAPTER
38 6592107
- 6592107 - SPRING
- DETENT 5
39 6592105
- 6592105 - BALL 5
40 6586918
- 6586918 - SCREW
- DETENT
41 54K20002
- 54K20002 - O'RING 10
42 6596807
- 6596807 - PLUG
- plastic - 0.46" long
43 6595027
- 6595027 - SLEEVE
- auxiliary
44 6592720
- 6592720 - PLUG
- W/Ref. 23-25
45 25K20016
- 25K20016 - O RING 10
46 6660644
- 6660644 - CAP
47 6587315
- 6587315 - RESTRICTR
- 0.11
48 6587304
- 6587304 - ORIFICE
- 0.125
49 6665089
- 6665089 - SEAL 5
- lip seal
50 6538466
- 6538466 - BUSHING
- W/Part Number stamped on face
51 6662848
- 6662848 - CAP
52 6816855
- 6816855 - PLUG
- Was 6534973
53 79K7
- 79K7 - O RING 10
54 6816251
- 6816251 - KIT
- SEAL
- - Ref. 6
- 13
- 16-20
- 23-25
- 41
- 44 & 49 - Was 6816717
55 6816250
- 6816250 - KIT
- SEAL
- - Ref. 6
- 26 & 49 - For One Spool - Was 6596310
56 6661328
- 6661328 - SEAL KIT
- Ref. 17-20
57 6809425
- 6809425 - SEAL KIT
- Ref. 13 & 23-25 - Was 6586461
