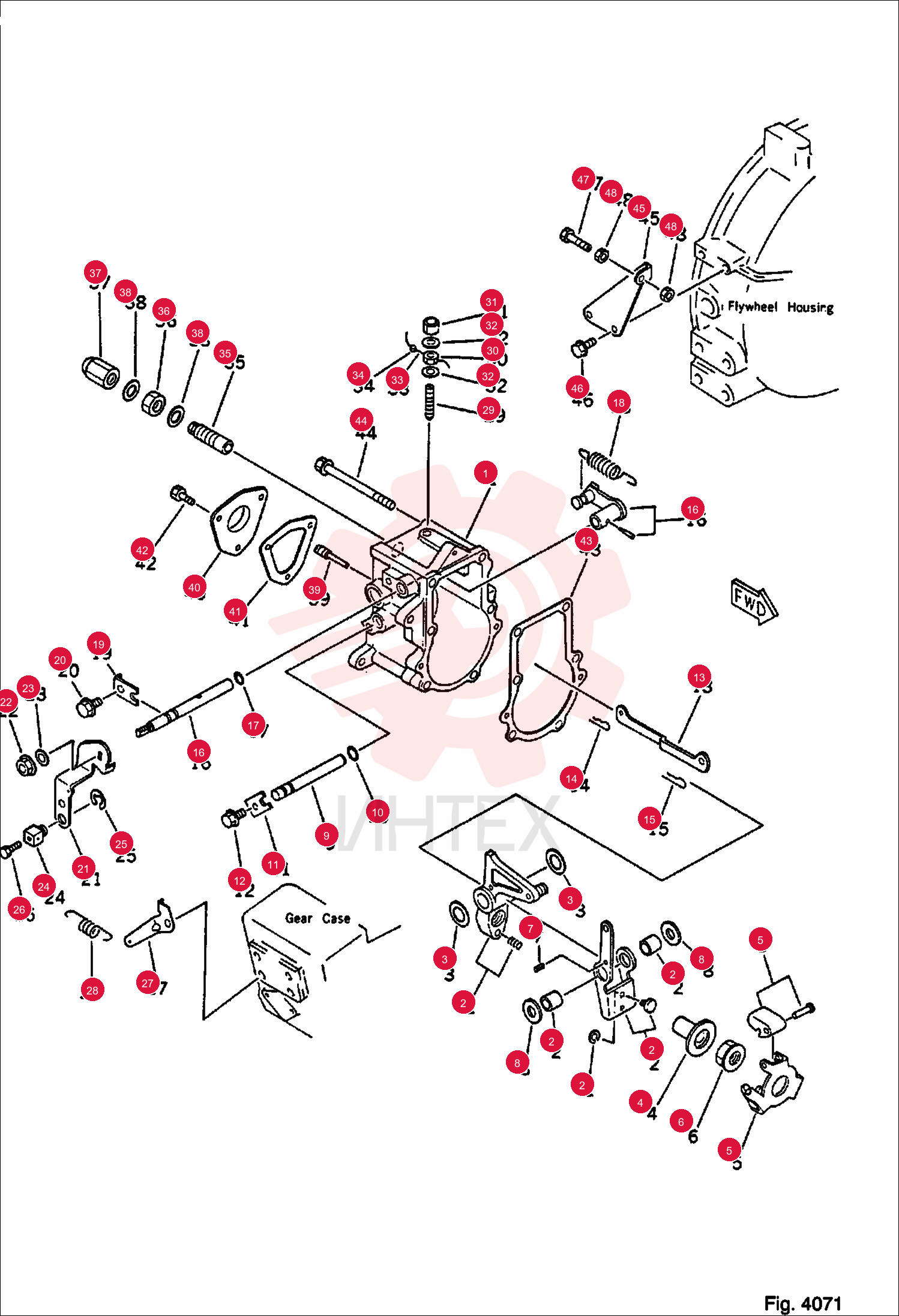

HOUSING 6636477

HOUSING 6636477

HOUSING 6636477

1 6636477

  • 6636477 - HOUSING

2 6636486

  • 6636486 - LEVER

3 6636772

  • 6636772 - SHIM ASSEMBLY

4 6636484

  • 6636484 - BEARING

5 6636482

  • 6636482 - WEIGHT

6 6636483

  • 6636483 - NUT

7 6636794

  • 6636794 - PIN

8 6636723

  • 6636723 - WASHER

9 6636485

  • 6636485 - SHAFT

10 6636687

  • 6636687 - O-RING

11 6636487

  • 6636487 - STOPPER

12 6636834

  • 6636834 - BOLT

13 6636481

  • 6636481 - LINK

14 6636797

  • 6636797 - PIN

15 6636799

  • 6636799 - PIN

16 6636424

  • 6636424 - SHAFT

17 6636687

  • 6636687 - O-RING

18 6636440

  • 6636440 - SPRING

19 6636487

  • 6636487 - STOPPER

20 6636834

  • 6636834 - BOLT

21 6636441

  • 6636441 - HANDLE

22 6636883

  • 6636883 - NUT

23 6636775

  • 6636775 - WASHER

24 6636589

  • 6636589 - STOPPER

25 6636786

  • 6636786 - RING

26 6636866

  • 6636866 - BOLT

27 6636450

  • 6636450 - BRACE

28 6636750

  • 6636750 - SPRING

29 6636488

  • 6636488 - SCREW

30 6636617

  • 6636617 - LOCK NUT

31 6636894

  • 6636894 - NUT

32 6636911

  • 6636911 - WASHER

33 6636800

  • 6636800 - WIRE

34 6636748

  • 6636748 - LEAD

35 6636443

  • 6636443 - LIMITER

36 6636624

  • 6636624 - NUT

37 6636895

  • 6636895 - NUT

38 6636913

  • 6636913 - SEAL

39 6636603

  • 6636603 - SCREW

40 6636479

  • 6636479 - COVER

41 6636480

  • 6636480 - PACKING

42 6636867

  • 6636867 - SCREW

43 6636478

  • 6636478 - PACKING

44 6636844

  • 6636844 - BOLT

45 6636442

  • 6636442 - BRACKET

46 6636847

  • 6636847 - BOLT

47 6636309

  • 6636309 - BOLT

48 6636898

  • 6636898 - NUT
