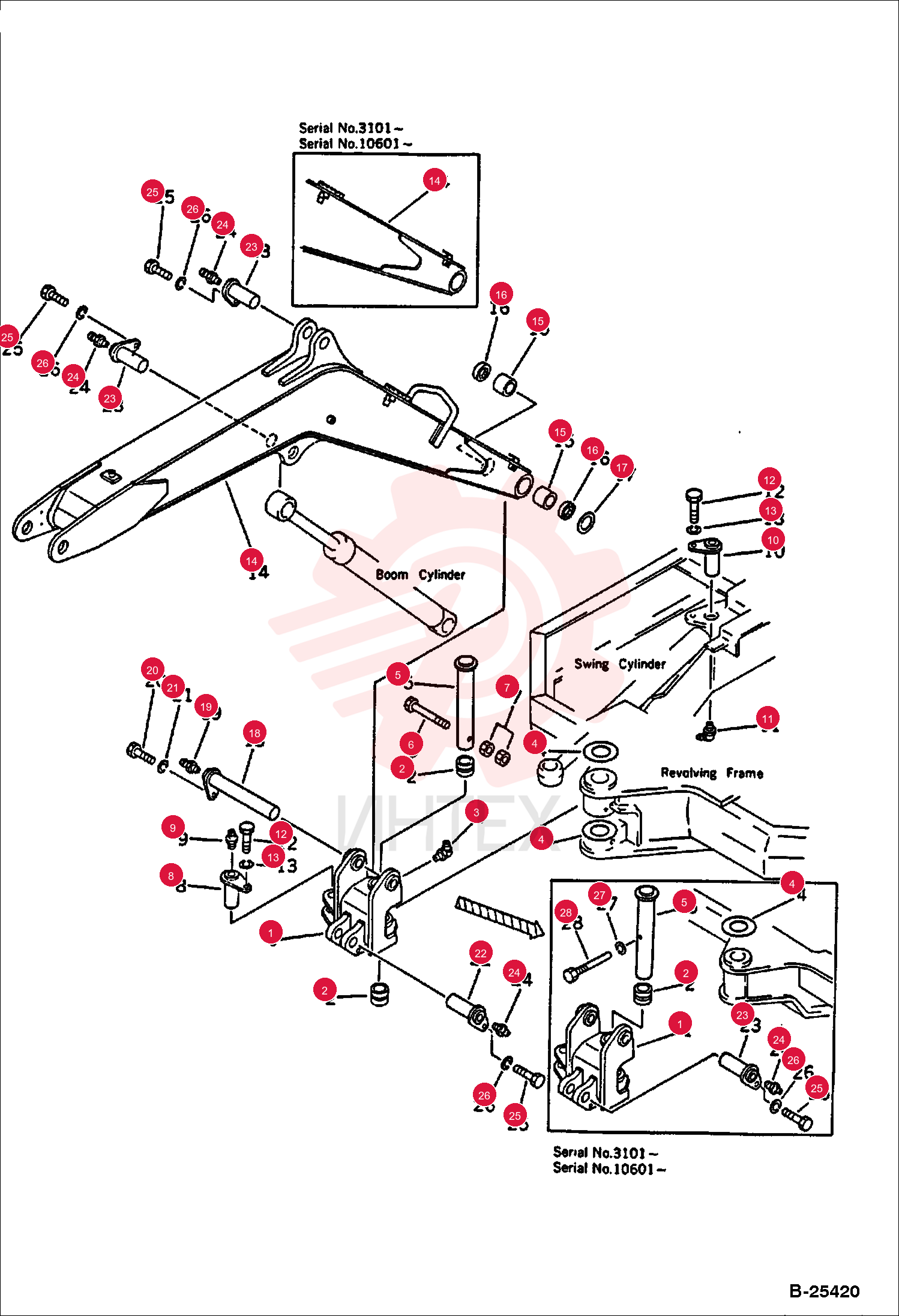

BRACKET 6638143

BRACKET 6638143

BRACKET 6638143

1 6638143

  • 6638143 - BRACKET

2 6642373

  • 6642373 - BRACKET

3 6642366

  • 6642366 - BRACKET A

4 6637527

  • 6637527 - BUSHING

5 6637432

  • 6637432 - FITTING

6 6638134

  • 6638134 - SHIELD

7 6638134

  • 6638134 - SHIELD

8 6642367

  • 6642367 - PIN

9 6638144

  • 6638144 - PIN

10 6637108

  • 6637108 - NUT

11 6642368

  • 6642368 - PIN

12 6638145

  • 6638145 - PIN

13 6637430

  • 6637430 - FITTING

14 6638135

  • 6638135 - PIN

15 6637431

  • 6637431 - FITTING

16 6636966

  • 6636966 - BOLT

17 6637135

  • 6637135 - WASHER

18 6638136

  • 6638136 - BOOM

19 6642372

  • 6642372 - BOOM ASSY

20 6642371

  • 6642371 - ASSY
  • BOOM

21 6637520

  • 6637520 - BUSHING

22 6637531

  • 6637531 - SEAL
  • DUST

23 6638487

  • 6638487 - SHIM

24 6638127

  • 6638127 - PIN

25 6637430

  • 6637430 - FITTING

26 6636966

  • 6636966 - BOLT

27 6637135

  • 6637135 - WASHER

28 6642365

  • 6642365 - PIN

29 6638129

  • 6638129 - PIN

30 6638129

  • 6638129 - PIN

31 6637430

  • 6637430 - FITTING

32 6636966

  • 6636966 - BOLT

33 6637135

  • 6637135 - WASHER

34 6637136

  • 6637136 - WASHER

35 6642374

  • 6642374 - BOLT
