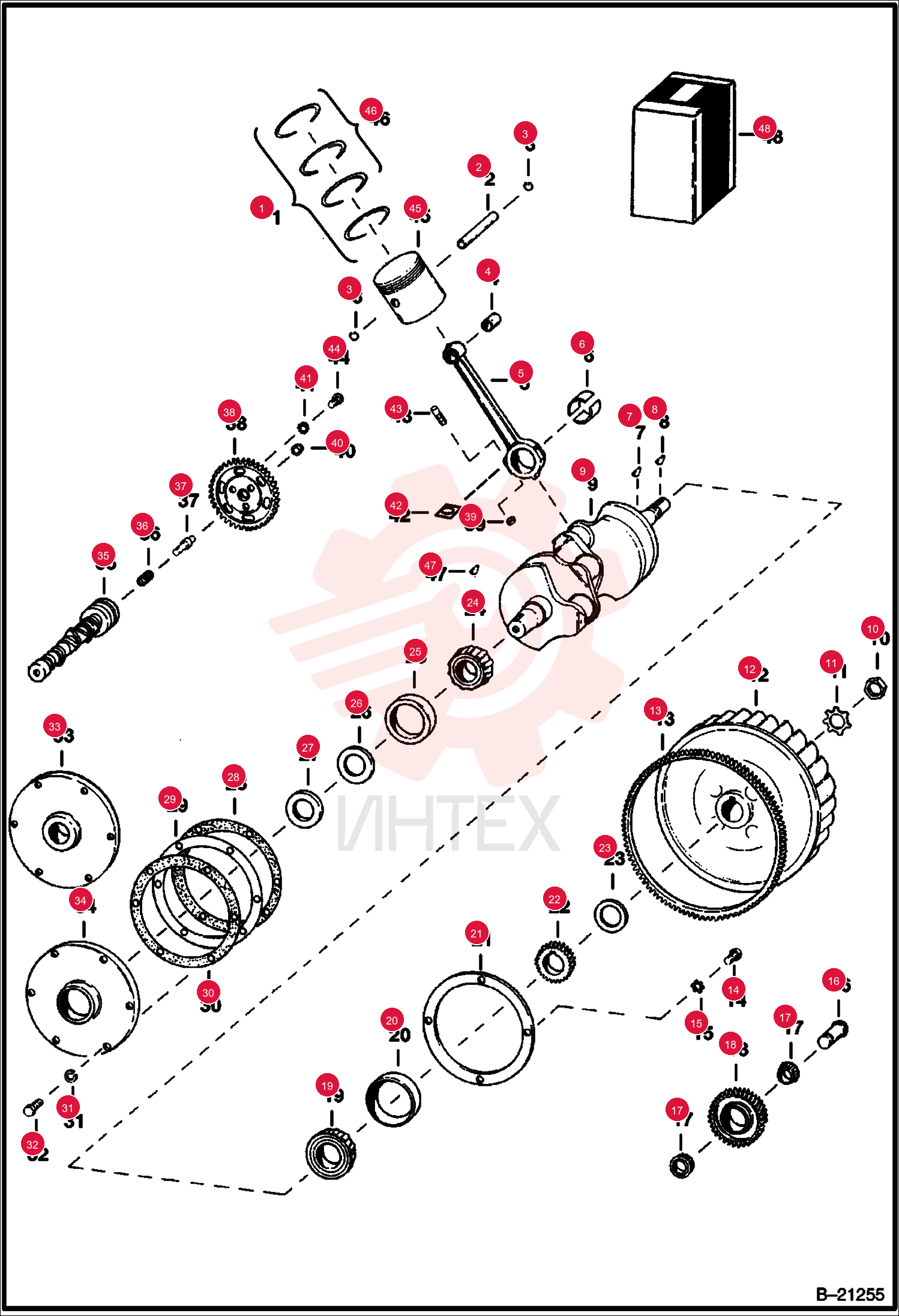

SET, RING 6516464
1 6516464
- 6516464 - SET
- RING
- Std. - 4 ring
2 6516466
- 6516466 - RG SET 4P
- +.020" (0
- 51mm) - 4 ring
3 6516467
- 6516467 - SET
- RING
- +.030" (0
- 76mm) - 4 ring
4 6516470
- 6516470 - SET
- RING
- trichrome - +.020" (0
- 51 mm) - 4 ring - complete set
5 6516469
- 6516469 - SET
- RING
- trichrome - +.010" (0
- 25 mm) - 4 ring - complete set
6 6516476
- 6516476 - PIN
- piston - Std.
7 6517474
- 6517474 - PIN
- piston - +.010" (0
- 25mm)
8 6516463
- 6516463 - RETAINER
9 6517472
- 6517472 - ROD
- W/Ref. 4
- 39 & 43
10 6517475
- 6517475 - BRG PAIR
- rod - Std. - one bearing
11 6517478
- 6517478 - BRG PAIR
- rod - .010" (0
- 25 mm) - one bearing
12 6517479
- 6517479 - BRG PAIR
- rod -.020" (0
- 51 mm) - one bearing
13 6J1011
- 6J1011 - KEY
- flywheel
14 6516449
- 6516449 - NUT
15 6516682
- 6516682 - GEAR
- RING
16 7G512
- 7G512 - SCREW
17 6E5
- 6E5 - WASHER INTL T LOCK
18 6516523
- 6516523 - STUD
- idler gear
19 6517514
- 6517514 - BEARING
20 6660248
- 6660248 - GEAR
- idler - See Ref. 48 for gear kit
21 6516452
- 6516452 - BEARING
- front - W/Ref. 20
22 6516525
- 6516525 - PLATE
23 6516451
- 6516451 - GEAR
24 6516450
- 6516450 - SLINGER
- oil
25 872144
- 872144 - BEARING
- rear - W/Ref. 25
26 6516456
- 6516456 - GASKET
- .003" (0
- 08mm)
27 6516458
- 6516458 - GASKET
- .006" (0
- 15mm)
28 4E6
- 4E6 - WASHER
29 17C620
- 17C620 - BOLT
30 6511300
- 6511300 - PLATE
31 6516517
- 6516517 - CAMSHAFT
32 6516518
- 6516518 - SPRING
33 6516519
- 6516519 - PLUNGER
- thrust
34 6516520
- 6516520 - GEAR
- camshaft
35 86D5
- 86D5 - NUT
36 6516522
- 6516522 - BUTTON
37 6516521
- 6516521 - WASHER
38 6516460
- 6516460 - SHIM
39 6516461
- 6516461 - BOLT
- W/Ref. 39
40 17C516
- 17C516 - BOLT
41 6630711
- 6630711 - PISTON
- .030'' (0
- 76mm) - 4 Ring - Was 6516475
42 6512146
- 6512146 - ONEPISTON
- .010" (0
- 25mm) - 3 Ring - 1 piston
43 6630708
- 6630708 - PISTON
- std - 4 ring - one piston
44 6630709
- 6630709 - PISTON
- .010" (0
- 25MM) - 4 RING
45 6630710
- 6630710 - PISTON
- .020" (0
- 51MM) - 4 RING
46 6630711
- 6630711 - PISTON
- .030" (0
- 76MM) - 4 RING
47 6630710
- 6630710 - PISTON
- .020 (0
- 51mm) - 4 Ring - Was 6516474
48 6630709
- 6630709 - PISTON
- .010 (0
- 25mm) - ring - Was 6516473
49 6630708
- 6630708 - PISTON
- std - 4 ring - Was 6516472
50 6512150
- 6512150 - RING
- .010 - 3 ring - complete set
51 6512151
- 6512151 - RING
- .020 - 3 ring - complete set
52 6630712
- 6630712 - SET
- RING
- Std. - 4 Ring
53 6630713
- 6630713 - SET
- RING
- .010" (0
- 25MM) - 4 RING
54 6630714
- 6630714 - SET
- RING
- .020" (0
- 51mm) - 4 Ring - 2 ring sets
55 6630715
- 6630715 - SET
- RING
- .030" (0
- 76mm) - 4 Ring - 2 ring sets
56 6J808
- 6J808 - KEY
- WOODRUFF
57 6516524
- 6516524 - GEAR ASSEMBLY
- W/Ref. 16 - 18
