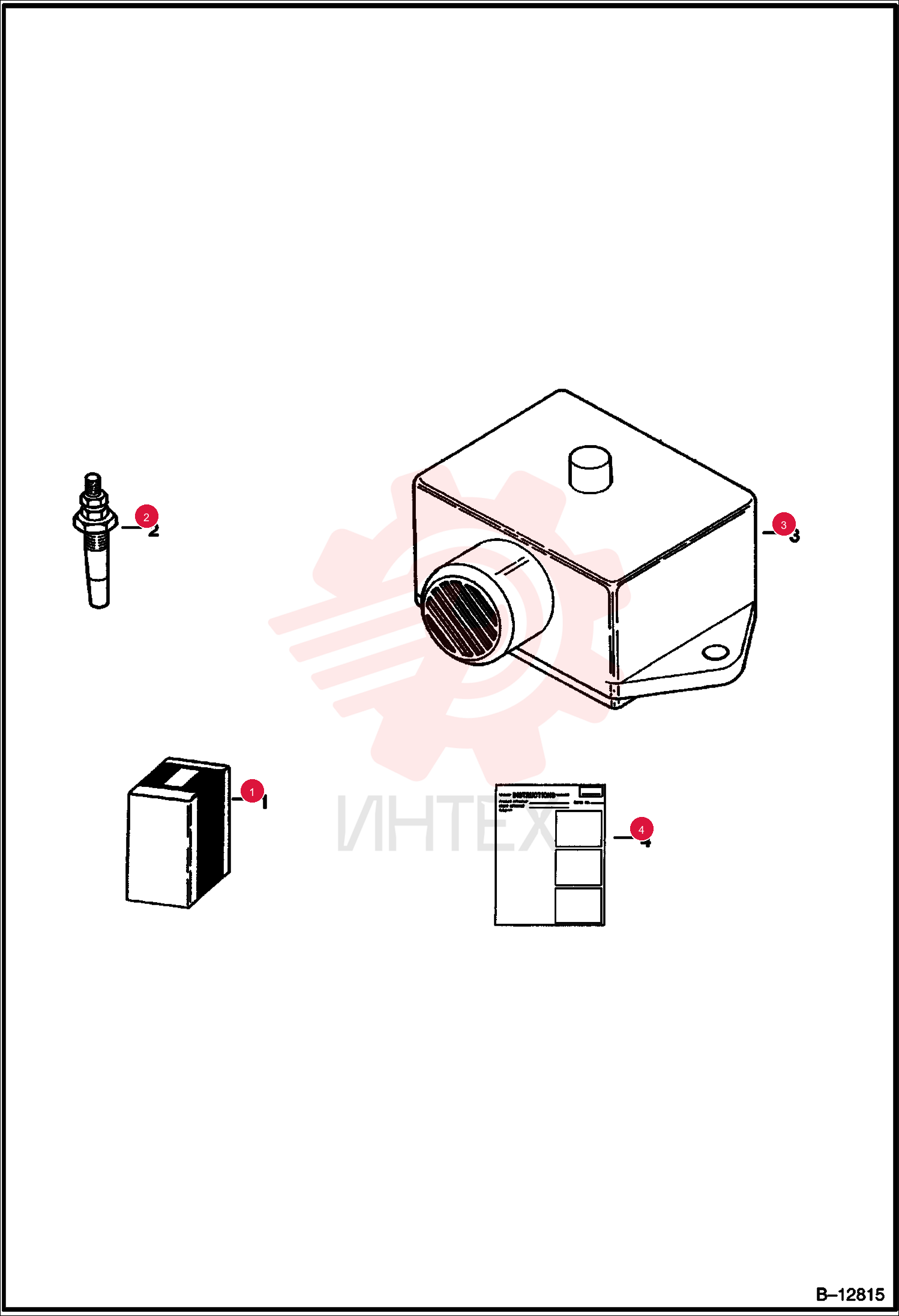

WATER KIT 6571700 (1)

WATER KIT 6571700 (1)

WATER KIT 6571700 (1)

1 6571700

  • 6571700 - WATER KIT
  • water level sensor - Ref. 2-4

2 6632471

  • 6632471 - WATER SEN
  • Was 6632954

3 6570238ENUS

  • 6570238ENUS - INSTRUCTIONS
  • Was 6570238
