Bobcat
/
653.0
/

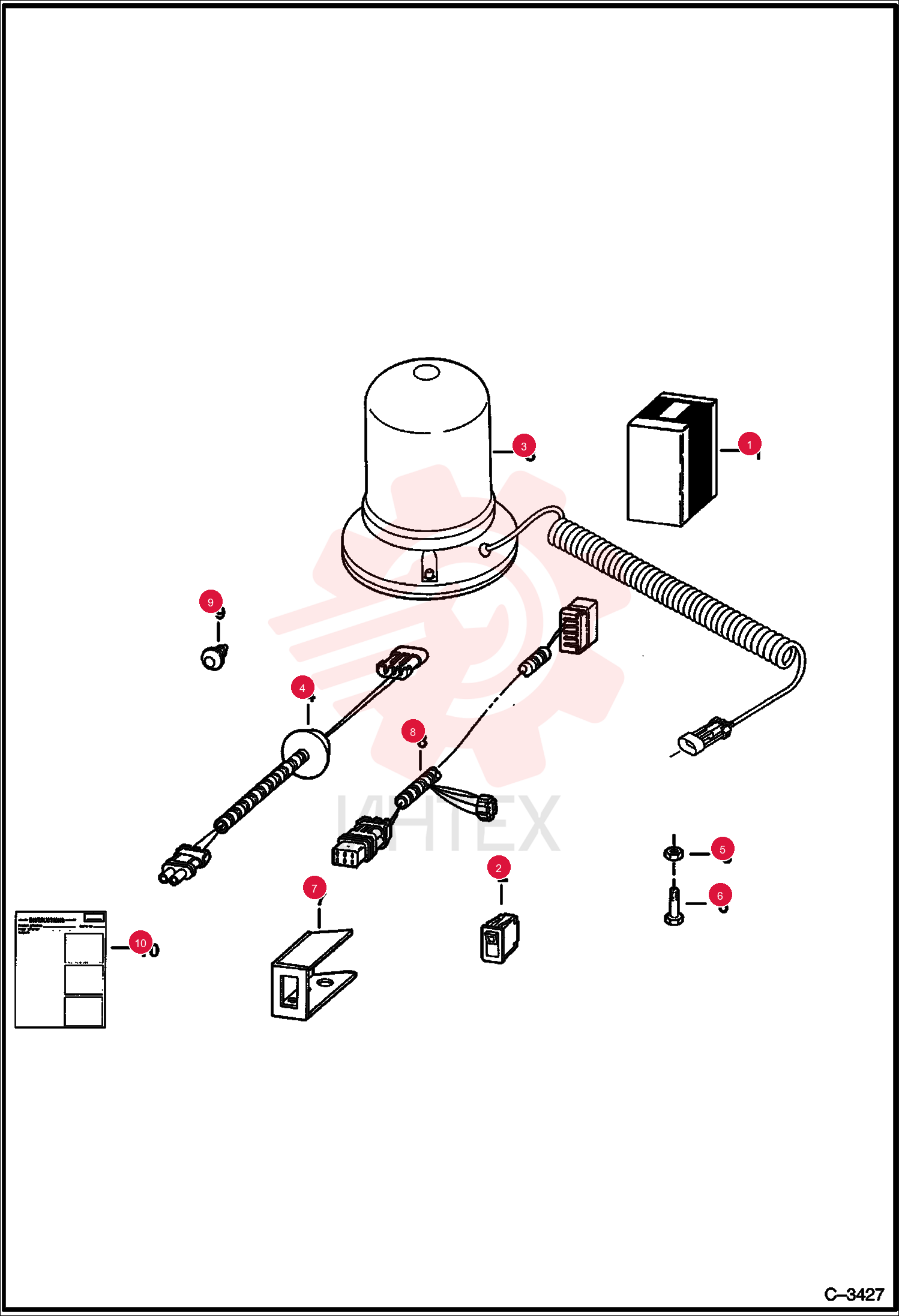

KIT, LIGHT 6712692

KIT, LIGHT 6712692

KIT, LIGHT 6712692

1 6712692

  • 6712692 - KIT
  • LIGHT
  • Ref. 2-5 - Was 6708342

2 6668816

  • 6668816 - SWITCH
  • Was 6665317

3 6666572

  • 6666572 - LENS
  • amber

4 6666571

  • 6666571 - BULB

5 7341779

  • 7341779 - LIGHT BEACON
  • Was 6675523

6 6708318

  • 6708318 - HARNESS
  • beacon

7 7160765

  • 7160765 - NUT
  • Was 6660988

8 35C412

  • 35C412 - SCREW FLGD HEX CAP

9 6711708

  • 6711708 - MOUNT

10 6712258

  • 6712258 - HARNESS
  • strobe

11 6669308

  • 6669308 - RETAINER
  • snap in

12 6724071ENUS

  • 6724071ENUS - INSTRUCTIONS
