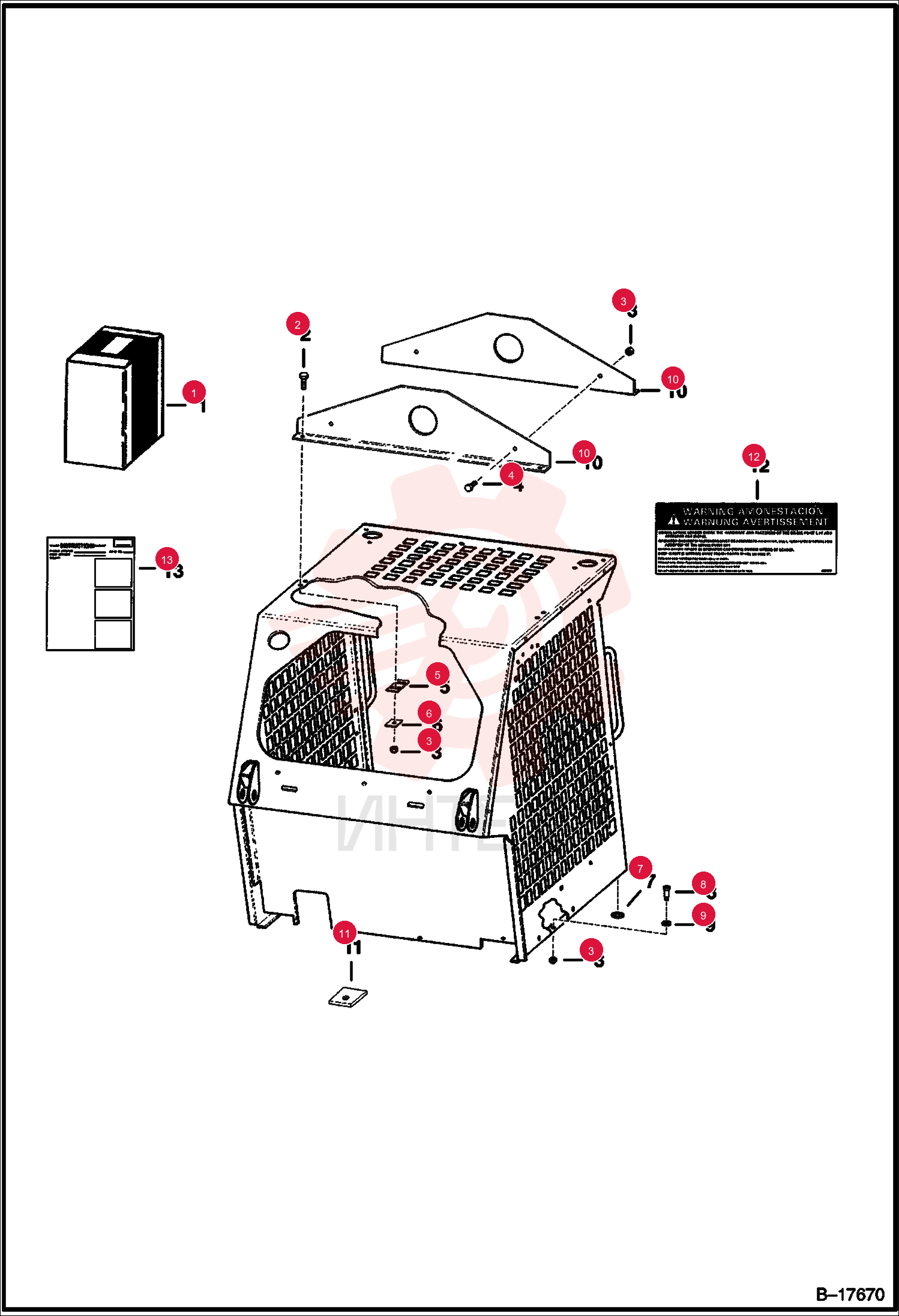

BOLT 5

BOLT 5

BOLT 5

1 17C824

  • 17C824 - BOLT 5

2 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

3 17C816

  • 17C816 - BOLT

4 6563494

  • 6563494 - SHIM

5 6553709

  • 6553709 - WASHER RECTANGULAR

6 6560900

  • 6560900 - RETAINER

7 672401

  • 672401 - BOLT

8 6563495

  • 6563495 - WASHER

9 6560175

  • 6560175 - ANGLE

10 6563551

  • 6563551 - WASHER

11 6565932

  • 6565932 - DECAL
  • WARNING
  • safety
