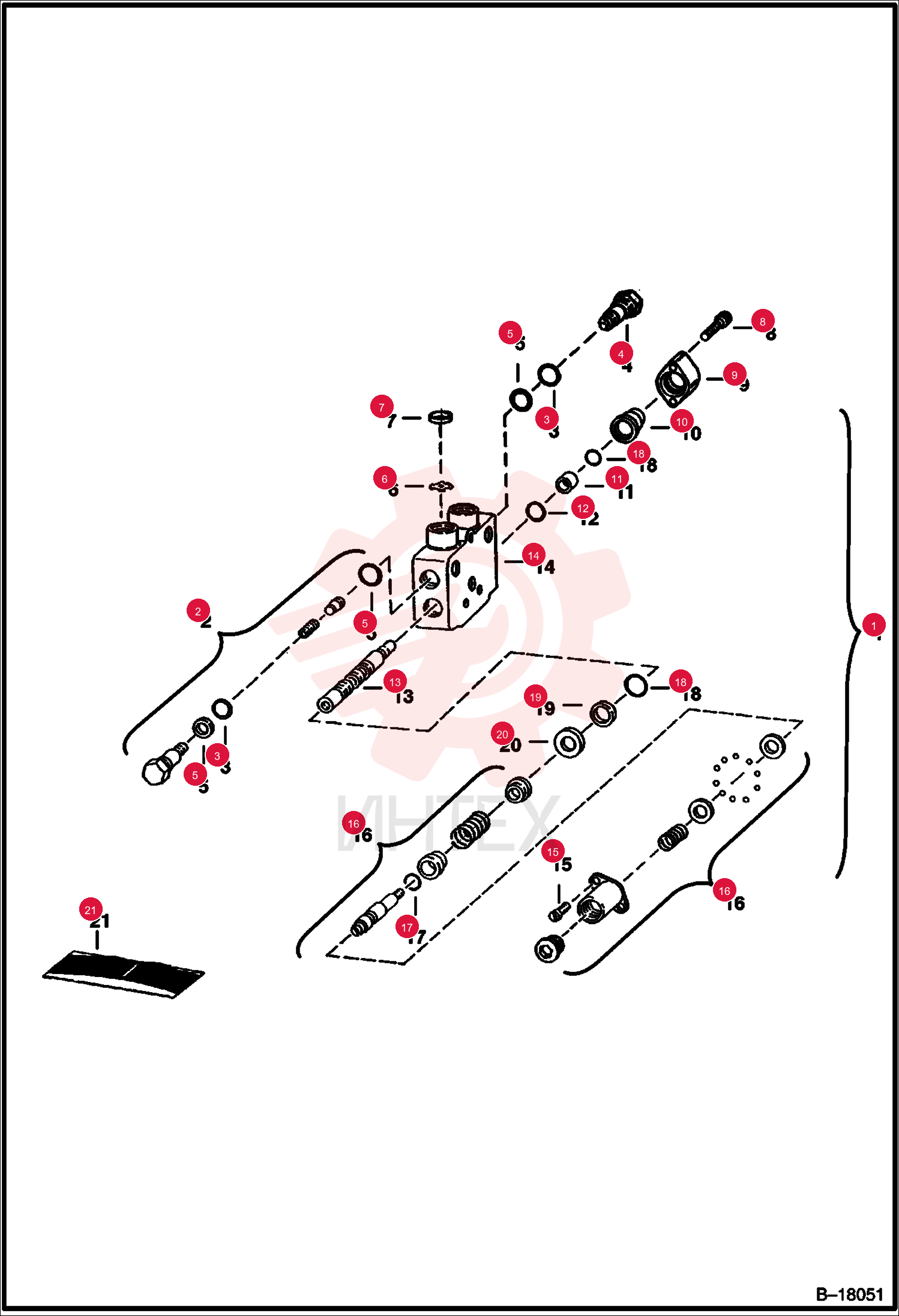

VALVE, SECTION 6659259

VALVE, SECTION 6659259

VALVE, SECTION 6659259

1 6659259

  • 6659259 - VALVE
  • SECTION
  • Was 6650701

2 6650692

  • 6650692 - VALVE
  • RELIEF

3 6650694

  • 6650694 - VALVE

4 6598689

  • 6598689 - ORIFICE

5 6598690

  • 6598690 - SPRING

6 89G408

  • 89G408 - BOLT

7 6659527

  • 6659527 - SPACER

8 6659526

  • 6659526 - SEAL

9 6659528

  • 6659528 - SLEEVE
  • back-up

10 6659530

  • 6659530 - O-RING

11 7030462

  • 7030462 - BOLT
  • Was 89G414

12 6659344

  • 6659344 - POSITIONER
  • Was 6651324

13 6659529

  • 6659529 - 0'RING

14 6650693

  • 6650693 - RETAINER

15 6650691

  • 6650691 - SEAL KIT
  • Ref. 3 & 5

16 6659560

  • 6659560 - SEAL KIT
  • Ref. 11 & 12
