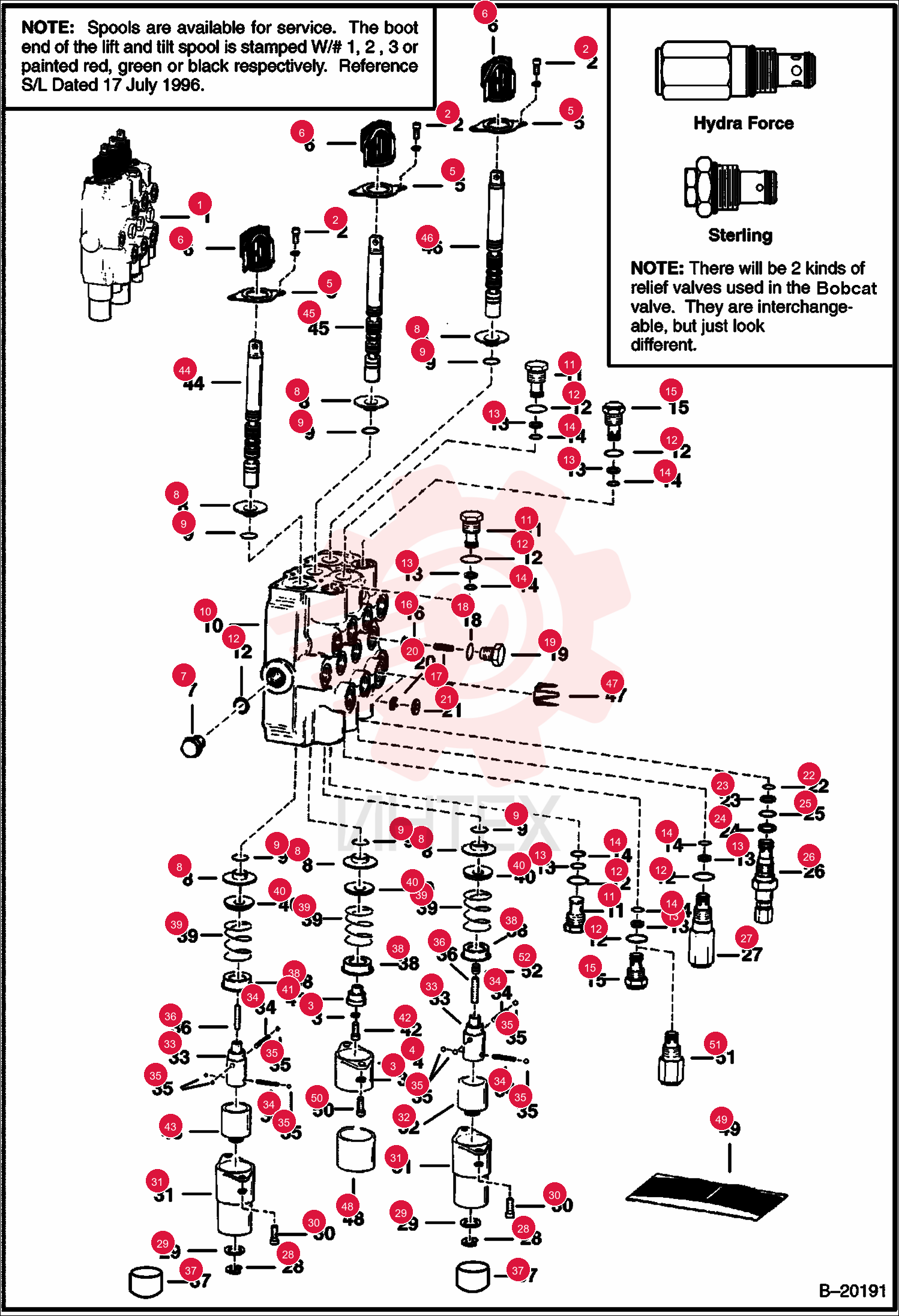

SCREW 6588165 (3)

SCREW 6588165 (3)

SCREW 6588165 (3)

1 6588165

  • 6588165 - SCREW
  • Was 73G000410B

2 22E4

  • 22E4 - WASHER

3 7101345

  • 7101345 - BONNET
  • DETENT HYD VALVE
  • W/.50" flange thickness - Was 6587633

4 6592123

  • 6592123 - RETAINER

5 6587763

  • 6587763 - BOOT
  • Was 6583727

6 47K7

  • 47K7 - PLUG

7 6592103

  • 6592103 - BUSHING

8 6538466

  • 6538466 - BUSHING
  • With part # stamped on

9 6665089

  • 6665089 - SEAL 5
  • lip seal - Was 6659554

10 6592720

  • 6592720 - PLUG
  • W/Ref. 12-14

11 79K10

  • 79K10 - O RING 10

12 80K14

  • 80K14 - BKUP WSH5
  • Was 73K000014B

13 58K014

  • 58K014 - O-RING 10
  • back-up washer required

14 6677106

  • 6677106 - O-RING
  • back up washer not required

15 6667549

  • 6667549 - VALVE
  • CHECK
  • anti-cavitation - W/Ref. 12-14 - Was 6661345

16 6592115

  • 6592115 - SEAT

17 6592117

  • 6592117 - SPRING
  • LOAD CHECK

18 79K8

  • 79K8 - O RING 10

19 6592116

  • 6592116 - NUT
  • load check

20 6593680

  • 6593680 - RETAINER

21 7219324

  • 7219324 - VALVE
  • RELIEF
  • W/ O-rings - pressure to be set in field - Was 6686360

22 6599161

  • 6599161 - VALVE
  • RELIEF
  • W/Ref. 12-14 - See Note

23 799119

  • 799119 - RING

24 6592098

  • 6592098 - WASHER

25 6588163

  • 6588163 - SCREW
  • 7/8" - Was 69G000412B

26 29G416

  • 29G416 - BOLT
  • 1" - Was 6588982

27 6589226

  • 6589226 - COVER
  • END
  • 0.63" flange

28 6592096

  • 6592096 - SLEEVE
  • lift

29 6587575

  • 6587575 - ADAPTER
  • Was 6592099

30 6592107

  • 6592107 - SPRING
  • DETENT 5

31 6592105

  • 6592105 - BALL 5

32 6586918

  • 6586918 - SCREW
  • DETENT

33 6660644

  • 6660644 - CAP

34 6592100

  • 6592100 - COLLAR

35 6587580

  • 6587580 - SPRING
  • Was 6592106

36 7211397

  • 7211397 - WASHER
  • SPRING
  • Was 6587523

37 6592109

  • 6592109 - ADAPTER

38 6593349

  • 6593349 - SLEEVE
  • aux.

39 6587304

  • 6587304 - ORIFICE

40 6662848

  • 6662848 - CAP
  • Use with 6587633 Bonnet

41 6809425

  • 6809425 - SEAL KIT
  • Upper Deck - Ref. 12-14 & 18 - Was 6586461

42 6661328

  • 6661328 - SEAL KIT
  • main relief - Ref. 22-25

43 6816250

  • 6816250 - KIT
  • SEAL
  • - Ref. 2
  • 6
  • 9
  • 30 & 52 - for one spool - Was 6803605

44 6816251

  • 6816251 - KIT
  • SEAL
  • - Ref. 6
  • 9
  • 12-14
  • 18
  • 22-25 & 52 - Was 6803606

45 6588164

  • 6588164 - SCREW

46 6664373

  • 6664373 - VALVE
  • RELIEF
  • optional - port relief & anti-cav. - W/Ref. 12 - 2500 PSI - use in tilt cylinder base end port

47 6596807

  • 6596807 - PLUG
  • plastic - 0.46" long

48 54K20002

  • 54K20002 - O'RING 10
