Bobcat
/
742.0
/

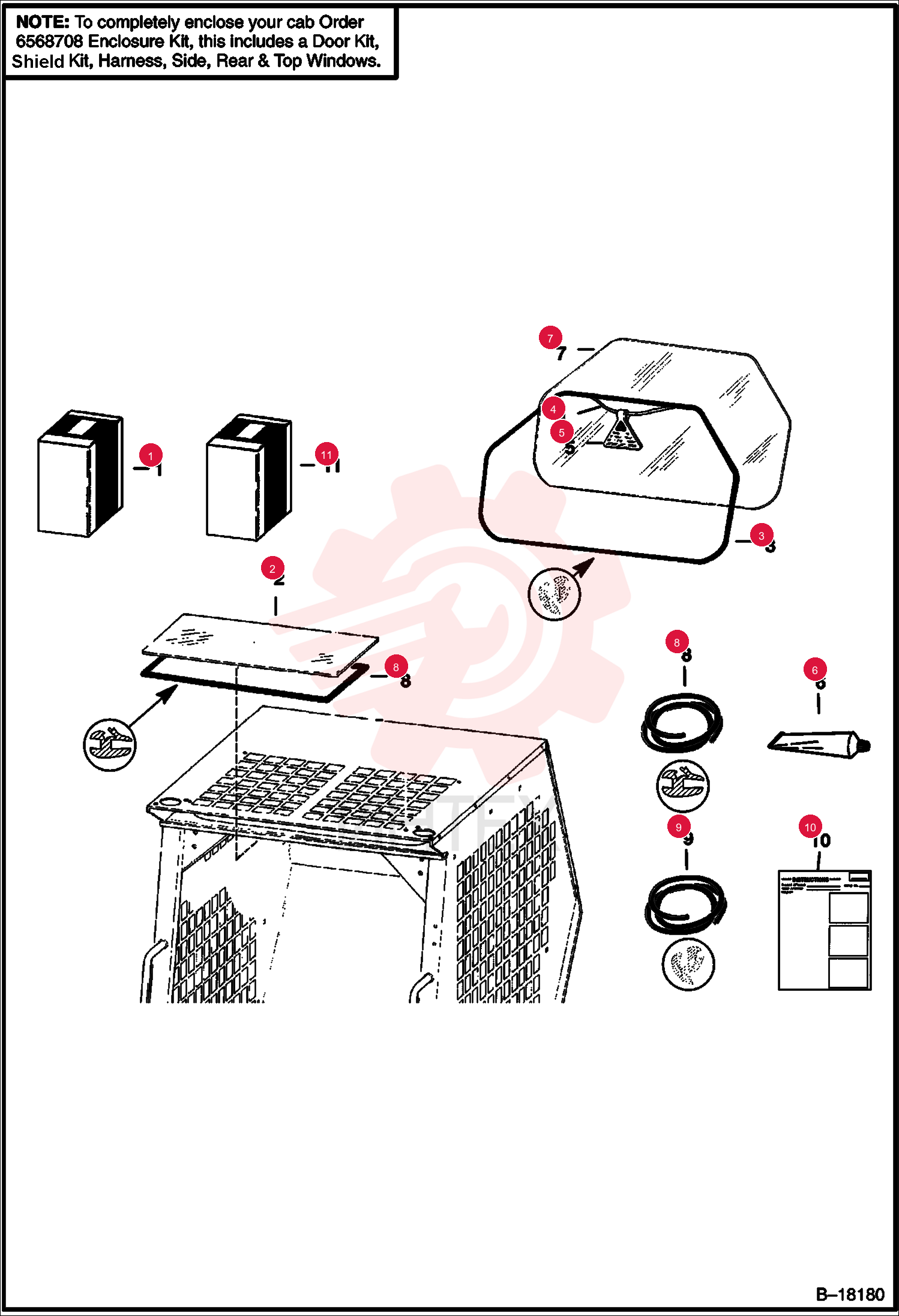

RWINDOWKT 6568709 (1)

RWINDOWKT 6568709 (1)

RWINDOWKT 6568709 (1)

1 6568709

  • 6568709 - RWINDOWKT
  • rear window

2 6701986

  • 6701986 - WINDOW
  • TOP
  • top - Use W/Ref. 6

3 6705735

  • 6705735 - WINDOW TOP CAB
  • top - Use W/Ref. 8

4 6658352

  • 6658352 - MOULDING
  • 8.5' (2590
  • 8 mm) - Order Ref. 9

5 6731478

  • 6731478 - TAG EXIT
  • Was 6559515

6 6555350

  • 6555350 - ADHESIVE

7 6704891

  • 6704891 - WINDOW REAR

8 6664351

  • 6664351 - MOULDING
  • Use W/cab headliner & Ref. 2 (6705735 window)

9 6665012

  • 6665012 - SEAL RUBBER
  • Use W/O cab headliner & Ref. 2 (6705735 window)

10 6658352

  • 6658352 - MOULDING
  • bulk - sold per foot

11 6554149

  • 6554149 - CORD
  • bulk - sold per foot

12 6566955

  • 6566955 - INSTRUCTIONS

13 6568708

  • 6568708 - CAB ENCL
  • cab enclosure - includes LH hinged door
  • shield kit
  • top window
  • side windows & rear window
