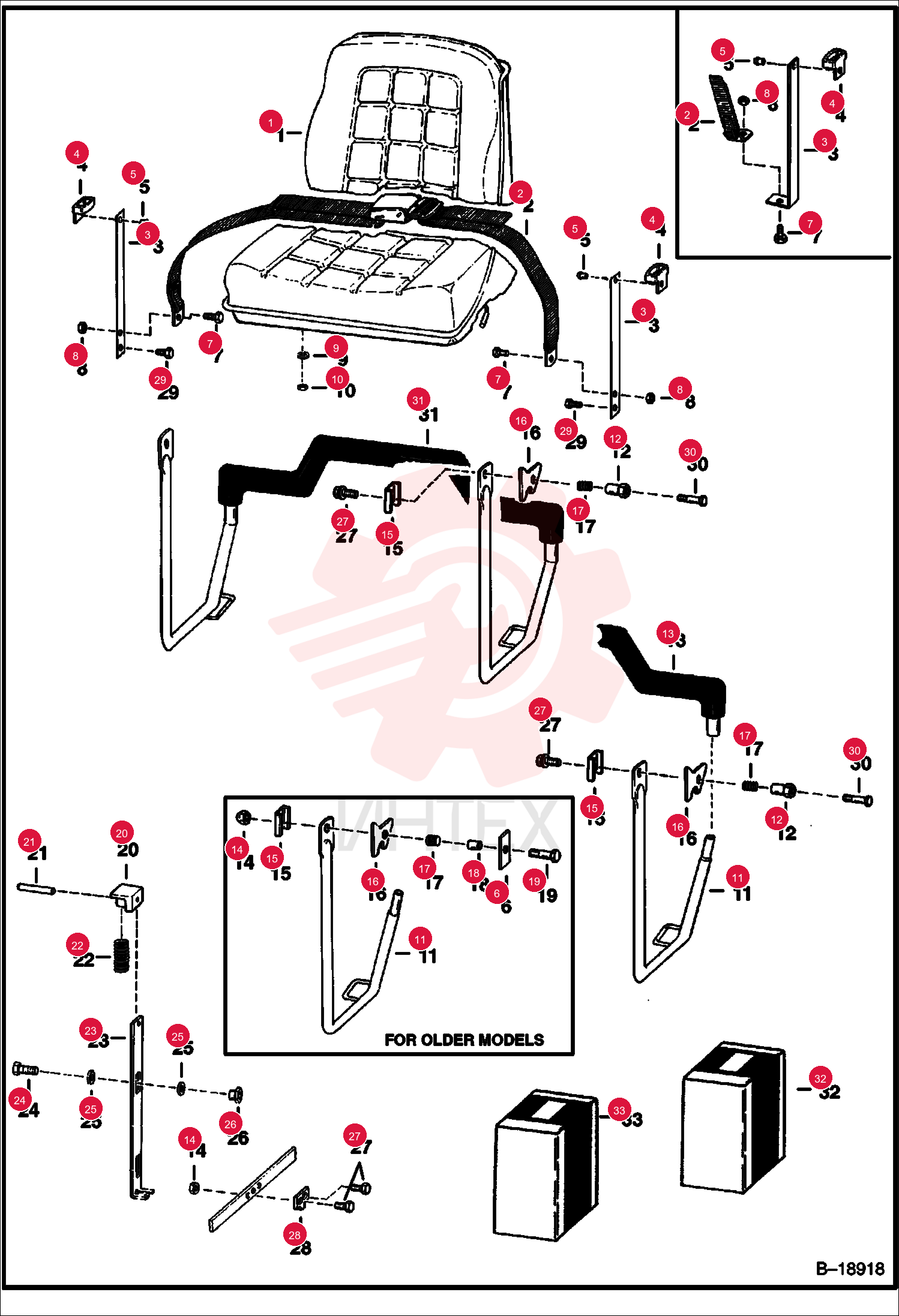

SEATBELT STANDARD 6675074 (1)

SEATBELT STANDARD 6675074 (1)

SEATBELT STANDARD 6675074 (1)

1 6675074

  • 6675074 - SEATBELT STANDARD
  • W/O spring plates

2 6563206

  • 6563206 - GUIDE ASSEMBLY
  • L.H. - W/Ref. 4 & 5

3 6563207

  • 6563207 - GUIDE ASSEMBLY
  • R.H. - W/Ref. 4 & 5

4 6711908

  • 6711908 - SPNG PLATE
  • Use W/Ref. 2 (NLA/6667875 seat belt)

5 6725373

  • 6725373 - SPRING BELT GUIDE
  • Use W/Ref. 2 (6675074 seal belt)

6 6630207

  • 6630207 - RIVET POP
  • Was 6512797

7 6564506

  • 6564506 - WASHER

8 17C716

  • 17C716 - BOLT

9 85D7

  • 85D7 - NUT PRETRQ HEX LOCK

10 4E5

  • 4E5 - WASHER
  • Was 4E000006B

11 61D5

  • 61D5 - NUT HEX FINISHED GR5
  • Was 61D000006B

12 6568742

  • 6568742 - BUSHING

13 83D6

  • 83D6 - LKNUT HEX FLG GR8

14 6563557

  • 6563557 - WASHER

15 6563313

  • 6563313 - RETAINER

16 6704453

  • 6704453 - SPRING COMPRESSION
  • Was 6503387

17 6564507

  • 6564507 - BUSHING

18 17C636

  • 17C636 - BOLT

19 6563148

  • 6563148 - BLOCK
  • SPRING

20 14J2512

  • 14J2512 - PIN 5

21 6702430

  • 6702430 - SPRING
  • COMPRESSION
  • Was 6563149

22 6563150

  • 6563150 - LOCK

23 17C612

  • 17C612 - SCREW HEX CAP

24 6700170

  • 6700170 - WASHER
  • nylon - Was 6563152

25 6559479

  • 6559479 - NUT RETAINING

26 17C616

  • 17C616 - BOLT 5

27 6563151

  • 6563151 - LINK

28 84G3712

  • 84G3712 - SCREW THD ROLLING TT

29 35C608

  • 35C608 - BOLT

30 6706324

  • 6706324 - ARM
  • SEAT BAR
  • 1 Piece - Was 6703301

31 6706796

  • 6706796 - KIT
  • SEAT BAR
  • GAS SPRING SEAT BAR
