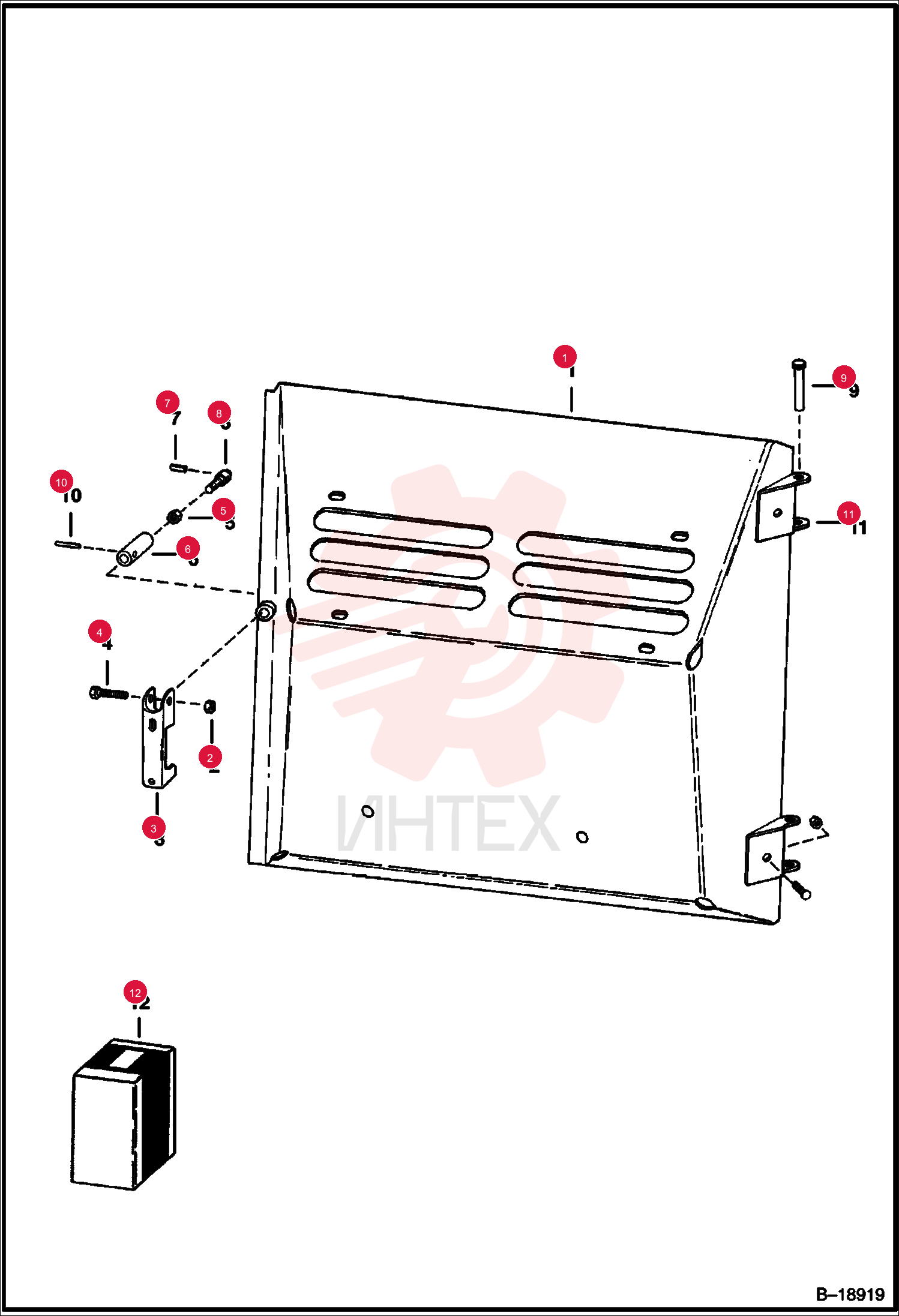

TAILGATE 6704328 (1)

TAILGATE 6704328 (1)

TAILGATE 6704328 (1)

1 6704328

  • 6704328 - TAILGATE
  • Was 6565073

2 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

3 6563681

  • 6563681 - HANDLE

4 38C624

  • 38C624 - BOLT 5
  • Was 6564599

5 61D8

  • 61D8 - NUT 5
  • 1/2''

6 6565627

  • 6565627 - NUT 5
  • 5/8'' Fine Thread

7 6563624

  • 6563624 - NUT JAM
  • 5/8'' Coarse Thread

8 6565628

  • 6565628 - NUT
  • 5/8'' Fine Thread

9 6599361

  • 6599361 - PIN 5

10 6565629

  • 6565629 - SCREW
  • 5/8'' Fine Thread

11 6564340

  • 6564340 - PIN HINGE

12 33G404

  • 33G404 - SET SCRW5

13 6562225

  • 6562225 - HINGE

14 6579448

  • 6579448 - KIT
  • LATCH REAR
  • Ref. 2-8 & 10
