Bobcat
/
742.0
/

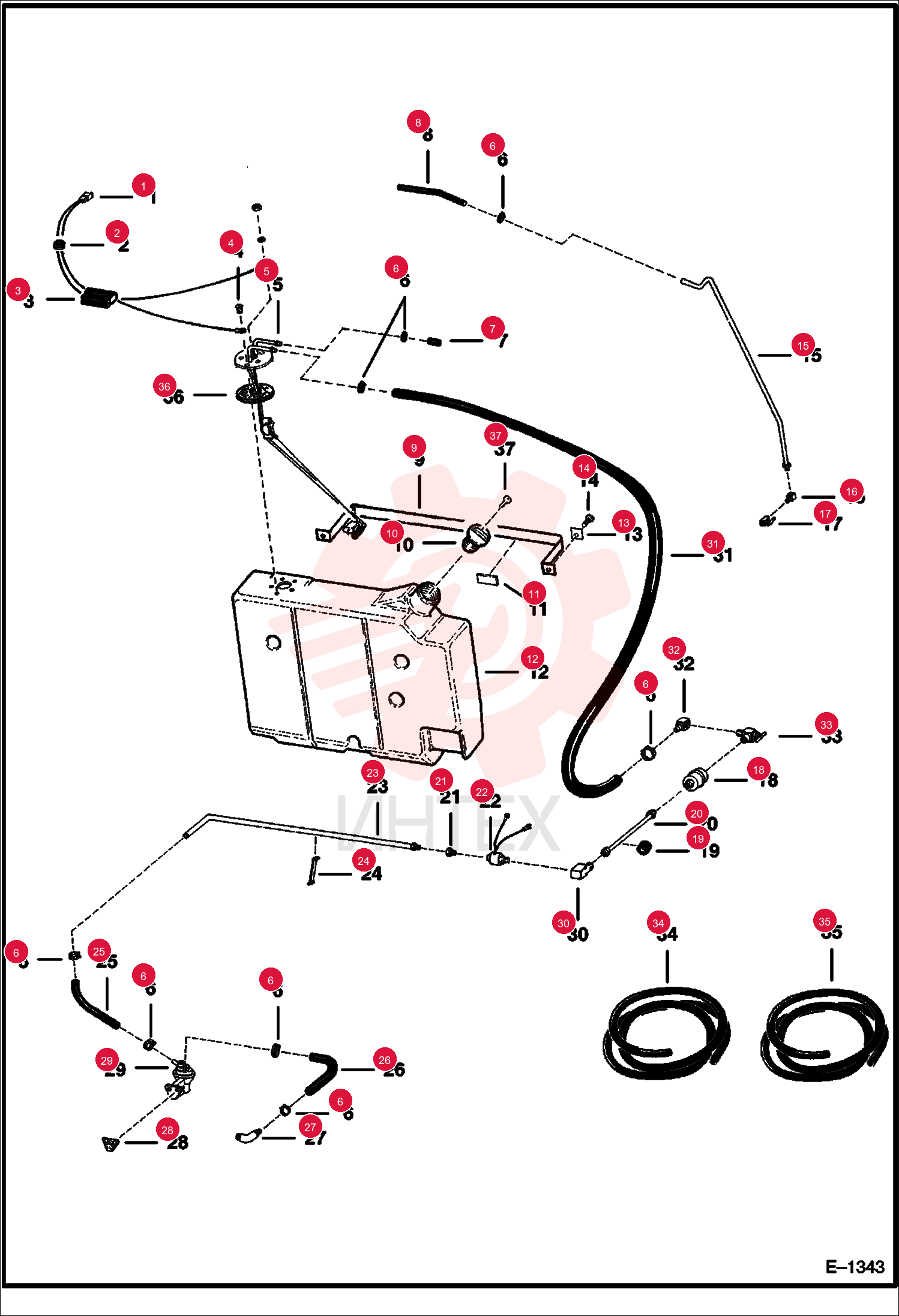

WIRE 6560117 (1)

WIRE 6560117 (1)

WIRE 6560117 (1)

1 6560117

  • 6560117 - WIRE

2 742876

  • 742876 - GROMMET

3 6562606

  • 6562606 - SEAL
  • Use 3" (76
  • 2 mm) of 6513152

4 87G1010

  • 87G1010 - SCREW
  • Was 85G001010B

5 6563210

  • 6563210 - SENDER
  • Fuel - includes gasket

6 42HS04

  • 42HS04 - CLAMP HOSE TYPE M
  • Was 6515575

7 6562559

  • 6562559 - BAND

8 6632468

  • 6632468 - FUEL CAP
  • Was 6555717

9 6662770

  • 6662770 - CAP
  • LOCK
  • locking - W/Ref. 37 - Code PK510

10 6591273

  • 6591273 - STRIPBULK
  • rubber - Was 6563233

11 6559447

  • 6559447 - WASHER
  • square

12 84G3716

  • 84G3716 - SCREW THD ROLLING TT

13 62F4

  • 62F4 - ELBOW

14 6562553

  • 6562553 - VALVE
  • shut off

15 6512106

  • 6512106 - FILTER
  • FUEL

16 6515603

  • 6515603 - GROMMET

17 6562993

  • 6562993 - TUBE
  • 2.83'' (71
  • 8 mm)

18 7024822

  • 7024822 - SOLENOID
  • FUEL
  • Was 6559117

19 6562994

  • 6562994 - TUBE
  • 2 Bends

20 6563724

  • 6563724 - TUBE
  • 1 Bend

21 6515156

  • 6515156 - ELBOW
  • To Carburetor

22 6512519

  • 6512519 - GASKET
  • spacer

23 6660165

  • 6660165 - GASKET

24 6512518

  • 6512518 - PUMP
  • FUEL
  • W/Ref. 28

25 62F4

  • 62F4 - ELBOW
  • Use W/6563723 Tube

26 6598753

  • 6598753 - ELBOW

27 6512138

  • 6512138 - VALVE
  • shut-off

28 6577821

  • 6577821 - HOSE
  • BULK
  • sold per foot - Was 672221

29 6577822

  • 6577822 - HOSE BULK
  • sold per foot - Was 6562515

30 6630972

  • 6630972 - GASKET

31 6587458

  • 6587458 - KEY CAP FUEL 2
  • Code PK510

32 6654374

  • 6654374 - 2 KEYS
  • Code GC020
