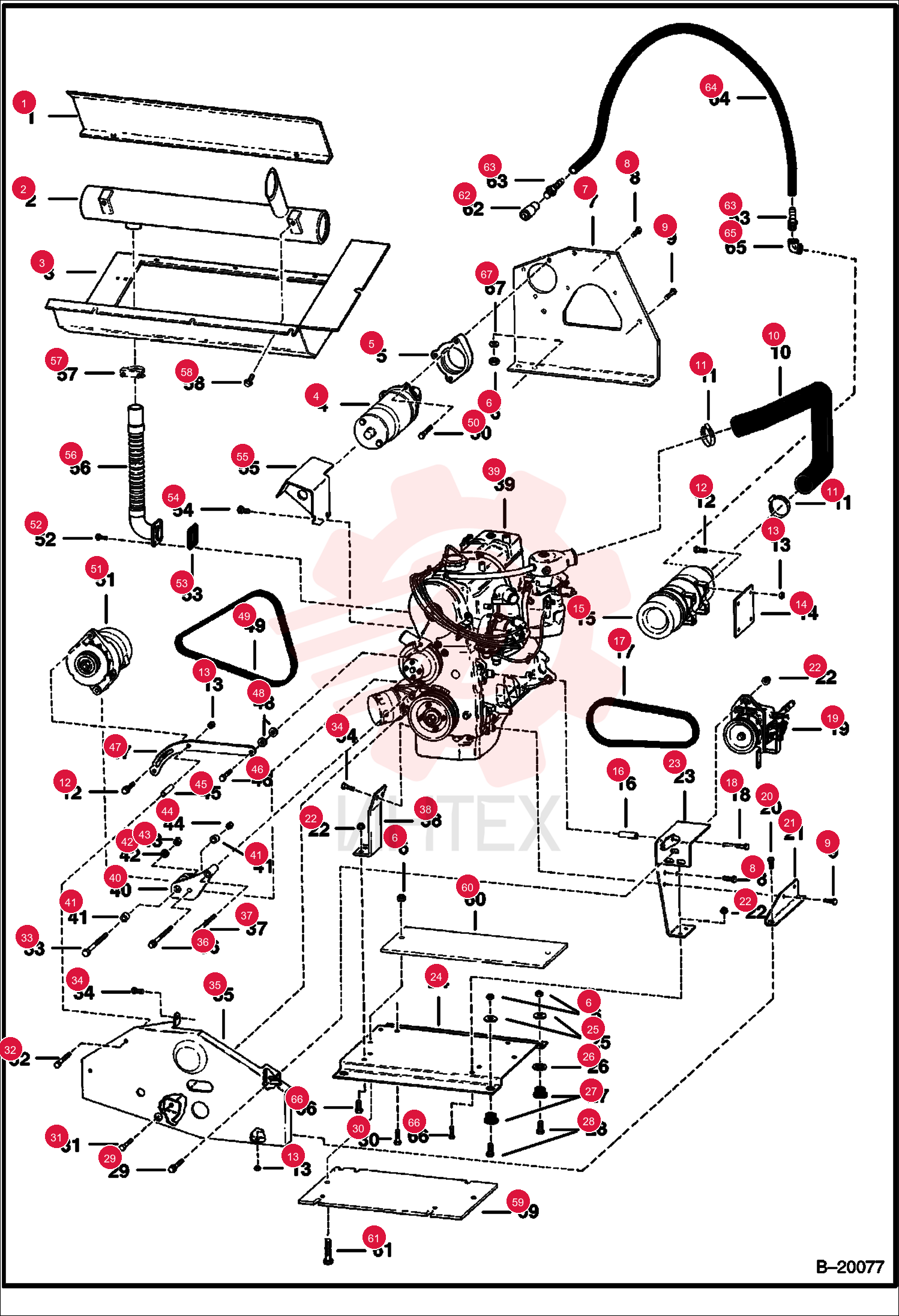

SHIELD 6561285 (2)

SHIELD 6561285 (2)

SHIELD 6561285 (2)

1 6561285

  • 6561285 - SHIELD

2 6514737

  • 6514737 - MUFFLER
  • SPARK ARRESTOR

3 6578176

  • 6578176 - MOUNT
  • Was 6563590

4 6562480

  • 6562480 - BLOCK

5 61D8

  • 61D8 - NUT 5

6 6571678

  • 6571678 - MOUNT

7 5CM1020

  • 5CM1020 - SCREW FL THD HEX CAP

8 5CM1030

  • 5CM1030 - SCREW FL THD HEX CAP

9 6571684

  • 6571684 - HOSE

10 42H32

  • 42H32 - HS CLAMP5
  • Was 6513395

11 35C516

  • 35C516 - SCREW HEX HD W/F GR5

12 83D5

  • 83D5 - LKNUT HEX FLG GR8

13 6571686

  • 6571686 - MOUNT

14 6571763

  • 6571763 - SPACER

15 6579755

  • 6579755 - BELT
  • Governor

16 2CM1070

  • 2CM1070 - BOLT

17 35C512

  • 35C512 - SCREW FLGD HEX CAP

18 6572071

  • 6572071 - BRACKET

19 57D6

  • 57D6 - NUT HEX FLNG GR8

20 6571762

  • 6571762 - MOUNT

21 6700110

  • 6700110 - MOUNT

22 6515817

  • 6515817 - WASHER

23 6560899

  • 6560899 - WASHER

24 6560633

  • 6560633 - DAMPER
  • VIBRATION

25 17C836

  • 17C836 - BOLT

26 35C616

  • 35C616 - SCREW FLGD HEX CAP

27 17C832

  • 17C832 - BOLT

28 29CM835

  • 29CM835 - BOLT

29 17C544

  • 17C544 - BOLT

30 17C664

  • 17C664 - BOLT

31 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

32 6571702

  • 6571702 - COVER

33 17C564

  • 17C564 - BOLT

34 1CM885

  • 1CM885 - BOLT

35 6571761

  • 6571761 - MOUNT

36 6571877

  • 6571877 - SPACER

37 25E17

  • 25E17 - WASHER FLAT PLAIN

38 61D6

  • 61D6 - NUT HEX FINISHED GR5

39 61D5

  • 61D5 - NUT HEX FINISHED GR5

40 6571613

  • 6571613 - SPACER

41 29CM638

  • 29CM638 - BOLT

42 6571990

  • 6571990 - STRAP

43 25E16

  • 25E16 - WASHER FLAT PLAIN

44 6571857

  • 6571857 - BELT ALT
  • Alternator

45 17C632

  • 17C632 - BOLT 5

46 6563005

  • 6563005 - BOLT

47 6575580

  • 6575580 - GASKET
  • muffler

48 5CM1015

  • 5CM1015 - BOLT

49 6572069

  • 6572069 - SHIELD

50 6571696

  • 6571696 - TUBE

51 6677363

  • 6677363 - CLAMP
  • FULL CIRCLE
  • Was 657904B

52 35C610

  • 35C610 - BOLT 5

53 6579550

  • 6579550 - COUNTERWEIGHT

54 6700109

  • 6700109 - COUNTERWEIGHT

55 17C844

  • 17C844 - BOLT

56 1735188

  • 1735188 - INDICATR

57 6505813

  • 6505813 - ADAPTER

58 6557720

  • 6557720 - HOSE BULK
  • sold per foot

59 24F1

  • 24F1 - ELBOW

60 35C632

  • 35C632 - BOLT

61 25E21

  • 25E21 - WASHER FLAT PLAIN
