743.0
/

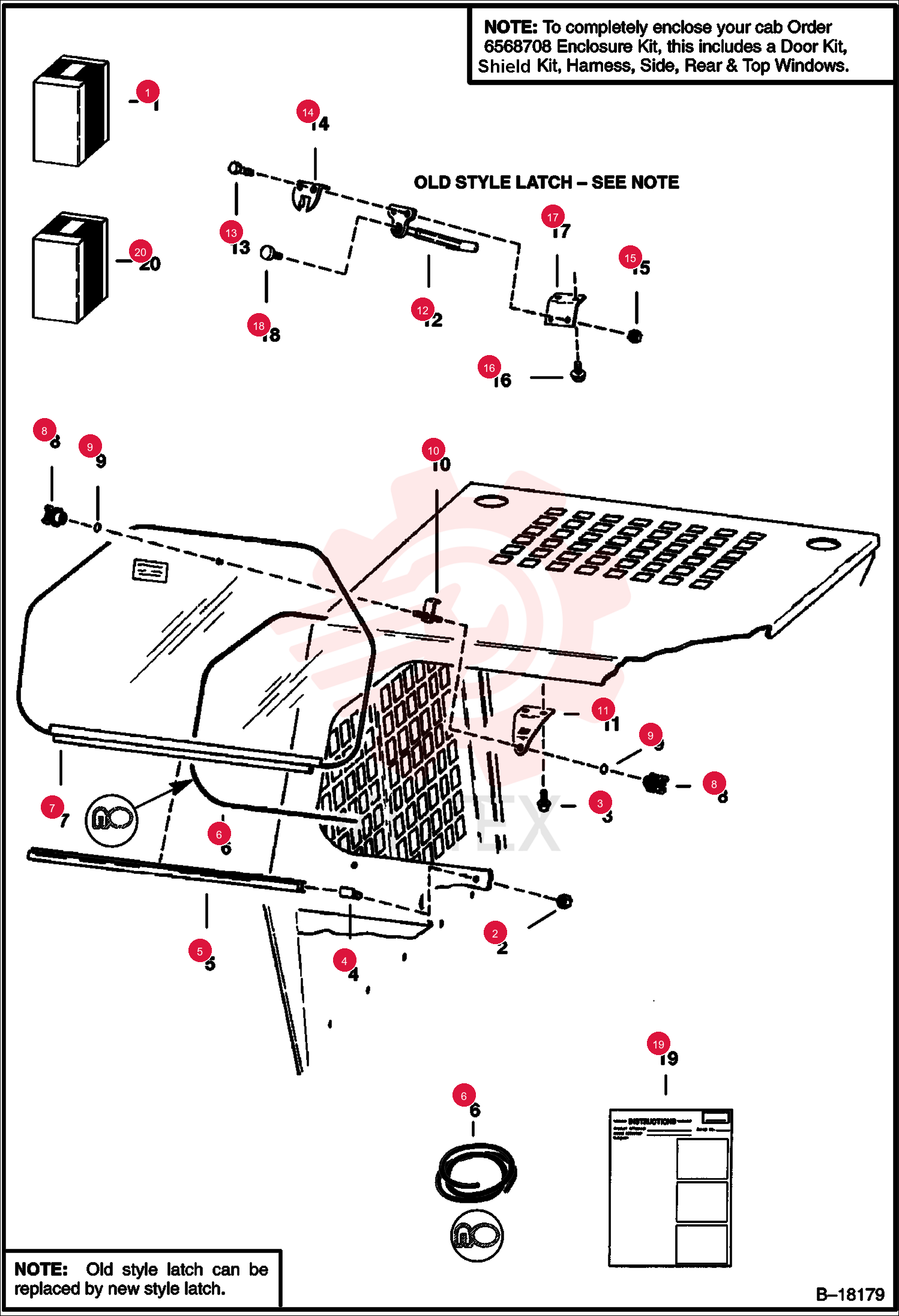

NUT LOCK HEX PT 59D4 (1)

NUT LOCK HEX PT 59D4 (1)

NUT LOCK HEX PT 59D4 (1)

1 59D4

  • 59D4 - NUT LOCK HEX PT

2 84G3112

  • 84G3112 - SCREW THD ROLLING TT

3 6576513

  • 6576513 - BOLT

4 6630926

  • 6630926 - HINGE

5 6555351

  • 6555351 - SEAL BULK/FT 15
  • bulk - sold per foot

6 6630925

  • 6630925 - WINDOW

7 6571529

  • 6571529 - KNOB

8 58K109

  • 58K109 - O RING 10

9 6571532

  • 6571532 - BRACKET

10 6571533

  • 6571533 - MOUNT

11 85G1014

  • 85G1014 - SCREW

12 50D10

  • 50D10 - LOCKNUT

13 84G3112

  • 84G3112 - SCREW THD ROLLING TT

14 6568540

  • 6568540 - MOUNT W L

15 6566955

  • 6566955 - INSTRUCTIONS
  • Rear Window

16 6568708

  • 6568708 - CAB ENCL
  • cab enclosure - includes LH hinged door
  • shield kit
  • top window
  • side windows & rear window
