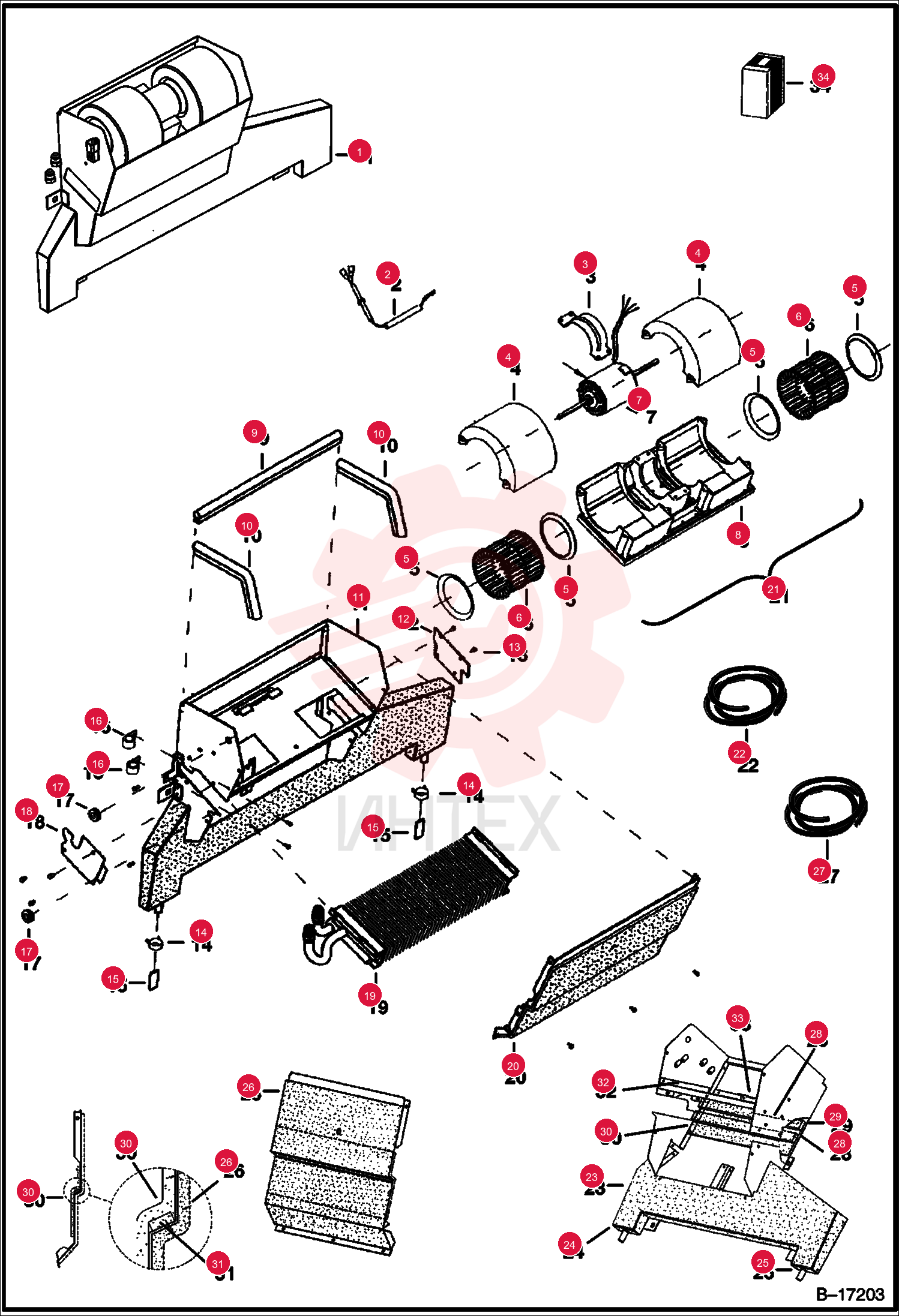

HTR ASMBLY 6676562

HTR ASMBLY 6676562

HTR ASMBLY 6676562

1 6676562

  • 6676562 - HTR ASMBLY
  • Ref. 2 - 22 - Was 6674933

2 6675508

  • 6675508 - HARNESS

3 6675506

  • 6675506 - MOUNT

4 6675507

  • 6675507 - COVER

5 6675504

  • 6675504 - RING

6 6676618

  • 6676618 - CLIP

7 6675505

  • 6675505 - BLOWER
  • WHEEL

8 6675509

  • 6675509 - MOTOR
  • HEATER CAB

9 6675503

  • 6675503 - HOUSING

10 6675499

  • 6675499 - HOUSING
  • W/Ref. 23 - 25 & 27 - 30

11 6675502

  • 6675502 - COVER
  • PLATE
  • cover

12 6675510

  • 6675510 - CLAMP

13 6675511

  • 6675511 - VALVE
  • DRAIN

14 6675512

  • 6675512 - CLAMP

15 6675513

  • 6675513 - GROMMET

16 6675501

  • 6675501 - COVER
  • PLATE
  • cover

17 6675500

  • 6675500 - COVER
  • W/Ref. 26
  • 27 & 30

18 6675497

  • 6675497 - BLOWER
  • HEATER AND A/C
  • Ref. 2 - 8

19 6675514

  • 6675514 - SEAL - PER FOOT
  • bulk - sold per foot

20 6688401

  • 6688401 - INSULATION
  • Was 6675607

21 6675608

  • 6675608 - INSULATION

22 6675609

  • 6675609 - INSULATION

23 6688400

  • 6688400 - INSULATION
  • Was 6675610

24 6696953

  • 6696953 - FOAM
  • bulk - sold per foot - Was 6675611

25 6675612

  • 6675612 - INSULATION

26 6675613

  • 6675613 - INSULATION

27 6675614

  • 6675614 - INSULATION

28 6728567

  • 6728567 - KIT
  • BLOWER SEAL
