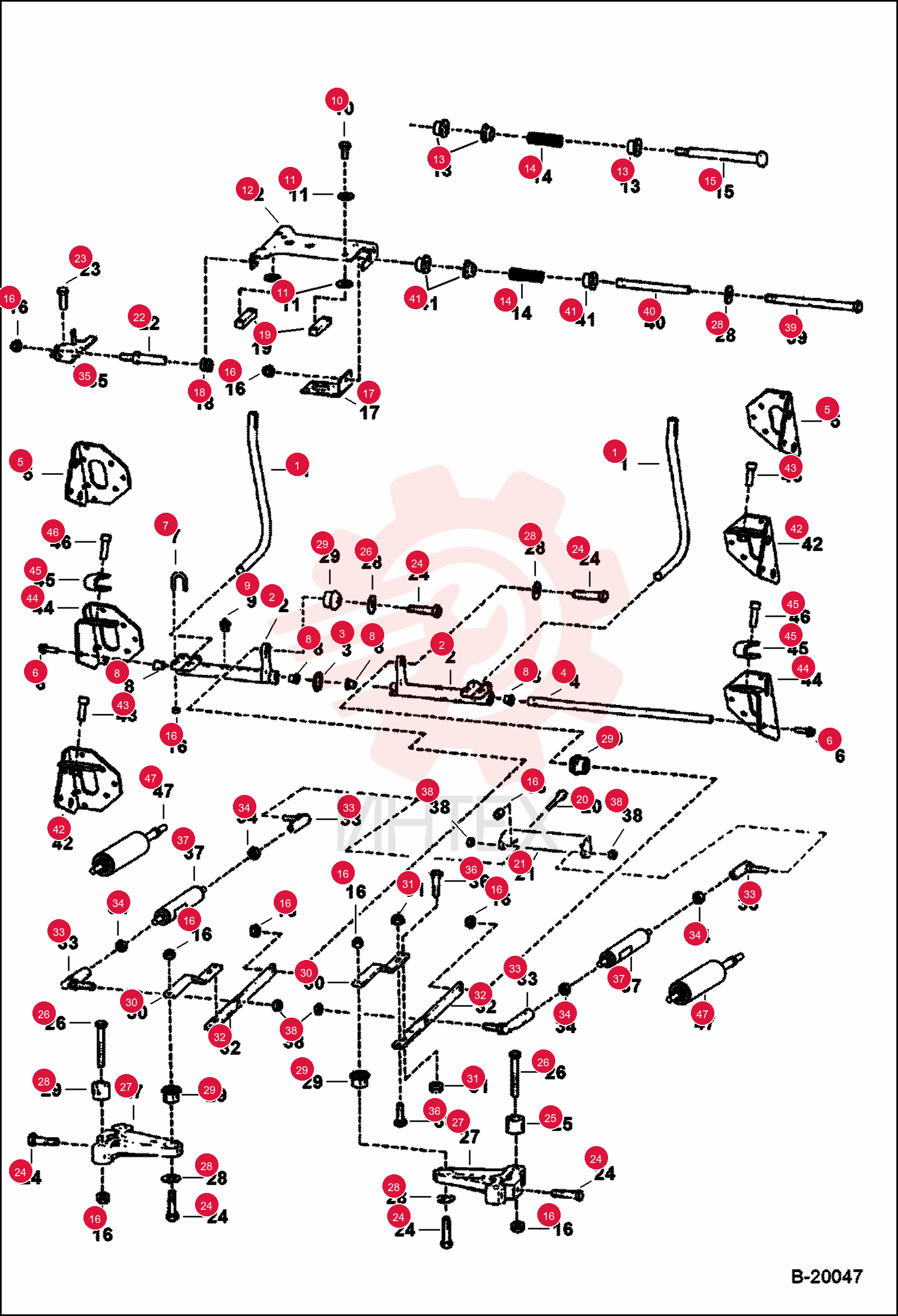

LEVER, STEERING 6702543 (3)

LEVER, STEERING 6702543 (3)

LEVER, STEERING 6702543 (3)

1 6702543

  • 6702543 - LEVER
  • STEERING

2 7110571

  • 7110571 - BELLCRANK
  • STEERING
  • W/notch for Ref. 8 (6703879 bushing) - Use W/Ref. 9 (10H35 grease zerk)

3 6599741

  • 6599741 - WASHER WAVE SPRING
  • wave

4 6716545

  • 6716545 - SHAFT
  • STRG
  • Use W/Ref. 6
  • 45C000620B Bolt

5 6577230

  • 6577230 - BRACKET
  • L shaped bracket

6 17C616

  • 17C616 - BOLT 5

7 45C620

  • 45C620 - BOLT

8 6732997

  • 6732997 - U-BOLT
  • Was 6700768

9 6703879

  • 6703879 - BUSHING
  • PLASTIC
  • W/tab

10 6518200

  • 6518200 - FITTNG
  • GREASE 10
  • press fit

11 10H35

  • 10H35 - FTG GREASE STRAIGHT
  • threaded

12 8C616

  • 8C616 - SCREW

13 6557831

  • 6557831 - WASHER CONTROLS

14 6706095

  • 6706095 - MOUNT

15 6701535

  • 6701535 - SPRING CENTERING

16 95D6

  • 95D6 - NUT HEXAGON
  • Was 91D000006B

17 6576196

  • 6576196 - BRACKET

18 6706098

  • 6706098 - GUIDE
  • PRESS FIT

19 6702716

  • 6702716 - BLOCK
  • WEAR

20 17C612

  • 17C612 - SCREW HEX CAP

21 6706106

  • 6706106 - MOUNT
  • optional

22 6577058

  • 6577058 - PIN
  • HAND CONTROL

23 4CM820

  • 4CM820 - SCREW HEX HD 8.8
  • Was 1CM820

24 17C626

  • 17C626 - BOLT

25 6704435

  • 6704435 - CAM
  • WEAR

26 93G616

  • 93G616 - SCREW

27 6701145

  • 6701145 - LEVER
  • PINTLE
  • .63'' lever pump shaft - Was NLA

28 6563914

  • 6563914 - WASHER
  • 1.00 in. (25
  • 4 mm) O.D.

29 619021

  • 619021 - WASHER
  • 0.13" thick - 32 mm (1.25") OD

30 6665701

  • 6665701 - BUSHING
  • PRESS FIT
  • neoprene - .885 in (22
  • 5 mm) O.D.

31 6685060

  • 6685060 - BUSHING TORSION
  • torsion - 26
  • 8 mm (1.055") OD - Was 6678067

32 6709024

  • 6709024 - LINK

33 83D6

  • 83D6 - LKNUT HEX FLG GR8

34 6576195

  • 6576195 - STEER.LIN

35 6599744

  • 6599744 - BALL JOINT
  • optional

36 8D6

  • 8D6 - NUT HEX JAM
  • optional

37 6706096

  • 6706096 - MOUNT

38 17C620

  • 17C620 - BOLT

39 62D6

  • 62D6 - NUT HEX FINISHED GR5

40 17C680

  • 17C680 - BOLT

41 6715164

  • 6715164 - SLEEVE
  • SPRING

42 6715163

  • 6715163 - BUSHING
  • PRESS FIT

43 93G824

  • 93G824 - BOLT
  • Was 73G824

44 7128600

  • 7128600 - BRACKET
  • RH

45 7128601

  • 7128601 - BRACKET
  • LH

46 7121779

  • 7121779 - PAD

47 73G828

  • 73G828 - BOLT

48 7188108

  • 7188108 - GAS SPRING
