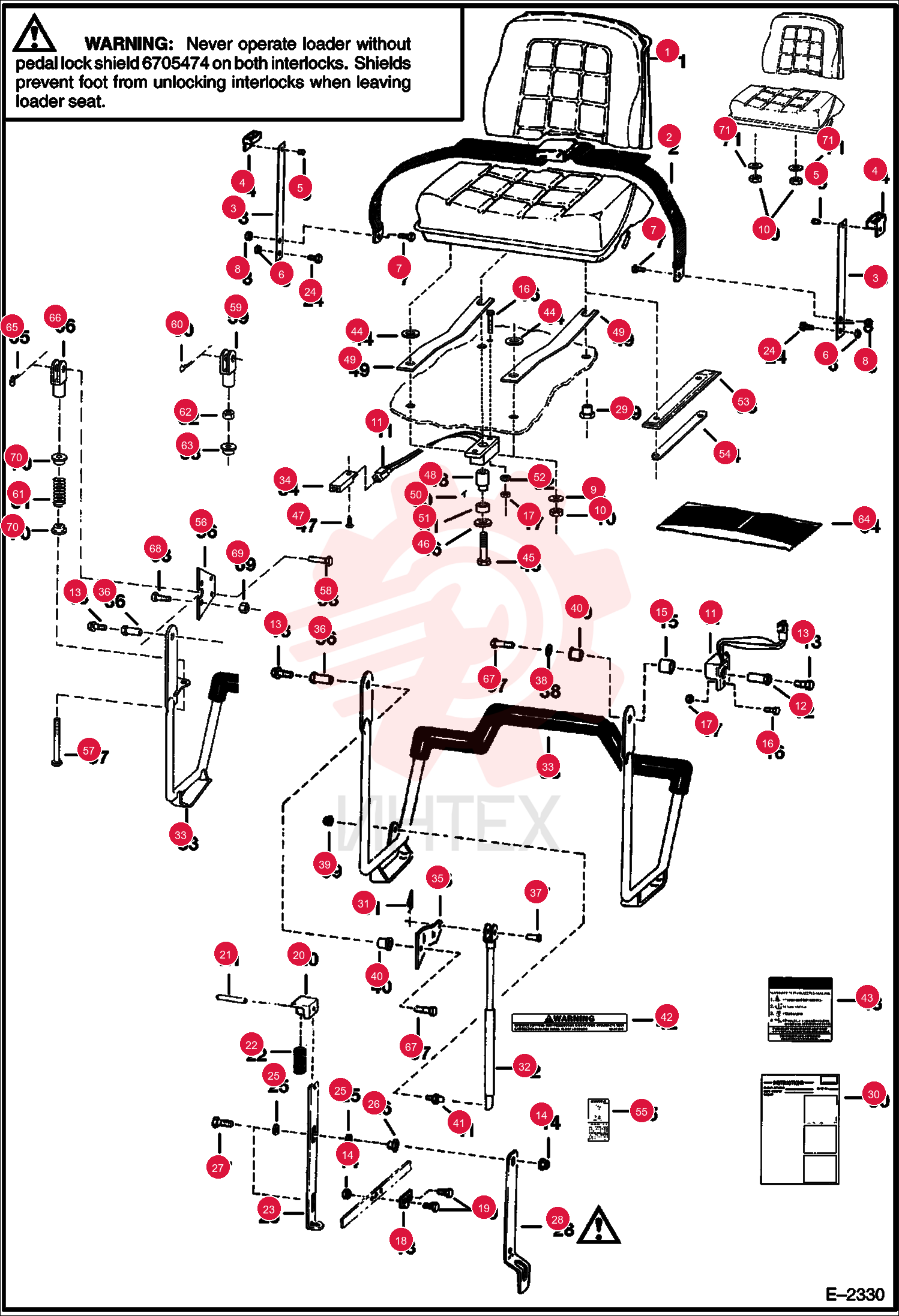

SEATBELT STANDARD 6675074 (3)
1 6675074
- 6675074 - SEATBELT STANDARD
- W/O spring plates
2 6711908
- 6711908 - SPNG PLATE
- Use W/Ref. 2 (NLA/6667875 Seat Belt)
3 6725373
- 6725373 - SPRING BELT GUIDE
- Use W/Ref. 2 (6675074 seal belt)
4 6630207
- 6630207 - RIVET POP
5 85D6
- 85D6 - NUT PRETRQ HEX LOCK
6 17C716
- 17C716 - BOLT
- Was 17C000715B
7 85D7
- 85D7 - NUT PRETRQ HEX LOCK
8 6701174
- 6701174 - WASHER FLAT
9 61D5
- 61D5 - NUT HEX FINISHED GR5
10 61D5
- 61D5 - NUT HEX FINISHED GR5
11 7105252
- 7105252 - SENSOR
- SEAT BAR POSITION
- Also Order Ref. 50 - Was 6670652
12 6706685
- 6706685 - BUSHING SPACER
13 35C608
- 35C608 - BOLT
14 35C612
- 35C612 - SCREW FLGD HEX CAP
15 83D6
- 83D6 - LKNUT HEX FLG GR8
16 6680473
- 6680473 - BUSHING
- MAGNET
- magnetic - Was 6671135
17 35C410
- 35C410 - SCREW HEX HD W/F GR5
- fastens thru tab of Ref. 11- 5/8"(15
- 9 mm) long
18 17C428
- 17C428 - BOLT
- fastens thru body of Ref. 11 - 1.75"(44
- 4 mm) long - Was 6710539
19 83D4
- 83D4 - LKNUT HEX FLG GR8
- fastens thru tab of Ref. 11
20 50D12
- 50D12 - NUT
- fastens thru body of Ref. 11
21 6563151
- 6563151 - LINK
22 17C616
- 17C616 - BOLT 5
23 6563148
- 6563148 - BLOCK
- SPRING
24 14J2512
- 14J2512 - PIN 5
25 6702430
- 6702430 - SPRING
- COMPRESSION
26 6578150
- 6578150 - LOCK
27 17C612
- 17C612 - SCREW HEX CAP
28 17C612
- 17C612 - SCREW HEX CAP
29 6700170
- 6700170 - WASHER
- plastic
30 6559479
- 6559479 - NUT RETAINING
31 6705489
- 6705489 - BOLT
32 6705474
- 6705474 - LOCK SHLD
- Never operate loader without pedal lock shield on both interlocks ... SEE WARNING ON PREVIOUS PAGE
33 6707319
- 6707319 - SPACER
- spacer
34 6722392
- 6722392 - INSTRUCTIONS
- For Ref. 28
35 6631418
- 6631418 - RING RUE
36 6664207
- 6664207 - CYLINDER
- GAS
37 6716778
- 6716778 - SEAT BAR
- for Use W/Gas Spring - Was 6706358
38 6716777
- 6716777 - SEAT BAR
- for Use W/compression springs - 6.13" (155
- 7 mm) from top hole to weld on tab - Was 6713609
39 6665000
- 6665000 - BRACKET MOUNTING
40 6706388
- 6706388 - BRACKET
41 6706962
- 6706962 - BUSHING PIVOT
42 4F5062
- 4F5062 - PIN
43 25E17
- 25E17 - WASHER FLAT PLAIN
- Was 25E000018B
44 85D5
- 85D5 - NUT PRETRQ HEX LOCK
45 6680441
- 6680441 - BUSHING KEYED
- keyed - Was 6664882
46 6649244
- 6649244 - BALL STUD
47 6577754
- 6577754 - DECAL
- WARNING 5
- gas spring
48 6707134
- 6707134 - DECAL
- INSTRUCTION
- instruction for LCS
49 6706890
- 6706890 - WASHER
50 17C508
- 17C508 - BOLT
51 25E16
- 25E16 - WASHER FLAT PLAIN
52 6664221
- 6664221 - RETAINER
53 6710751
- 6710751 - BUSHING
- spacer - 1.67"(42
- 4 mm) long
54 6706966
- 6706966 - SPRING
- SEAT
- plate
55 6680523
- 6680523 - KEY
- MAGNETIC
- magnet bushing - Was 6664881
56 6680472
- 6680472 - BUSHING
- MAGNET
- tapered magnetic - Was 6666608
57 25E10
- 25E10 - WASHER FLAT PLAIN
58 6711730
- 6711730 - STRIP
59 6705720
- 6705720 - DECAL
- lock shield
60 6710660
- 6710660 - MOUNT SPRING
61 6713887
- 6713887 - SCREW SOCKET CAP
- Was 6711897
62 4F6106
- 4F6106 - PIN HARDENED CLEVIS
63 2J6208
- 2J6208 - YOKE
- 2.85"(72
- 4 mm) long
64 1306637
- 1306637 - PIN HAIR
65 6701535
- 6701535 - SPRING CENTERING
66 8D6
- 8D6 - NUT HEX JAM
- jam
67 6571991
- 6571991 - GUIDE
68 6631418
- 6631418 - RING RUE
69 6713589
- 6713589 - CLEVIS ROD END
- 2.09"(53
- 1 mm) long
70 17C612
- 17C612 - SCREW HEX CAP
71 17C608
- 17C608 - BOLT
72 17C712
- 17C712 - BOLT
73 91D7
- 91D7 - NUT
74 6710659
- 6710659 - BUSHING
75 6707318
- 6707318 - WASHER
- Was 6571991
