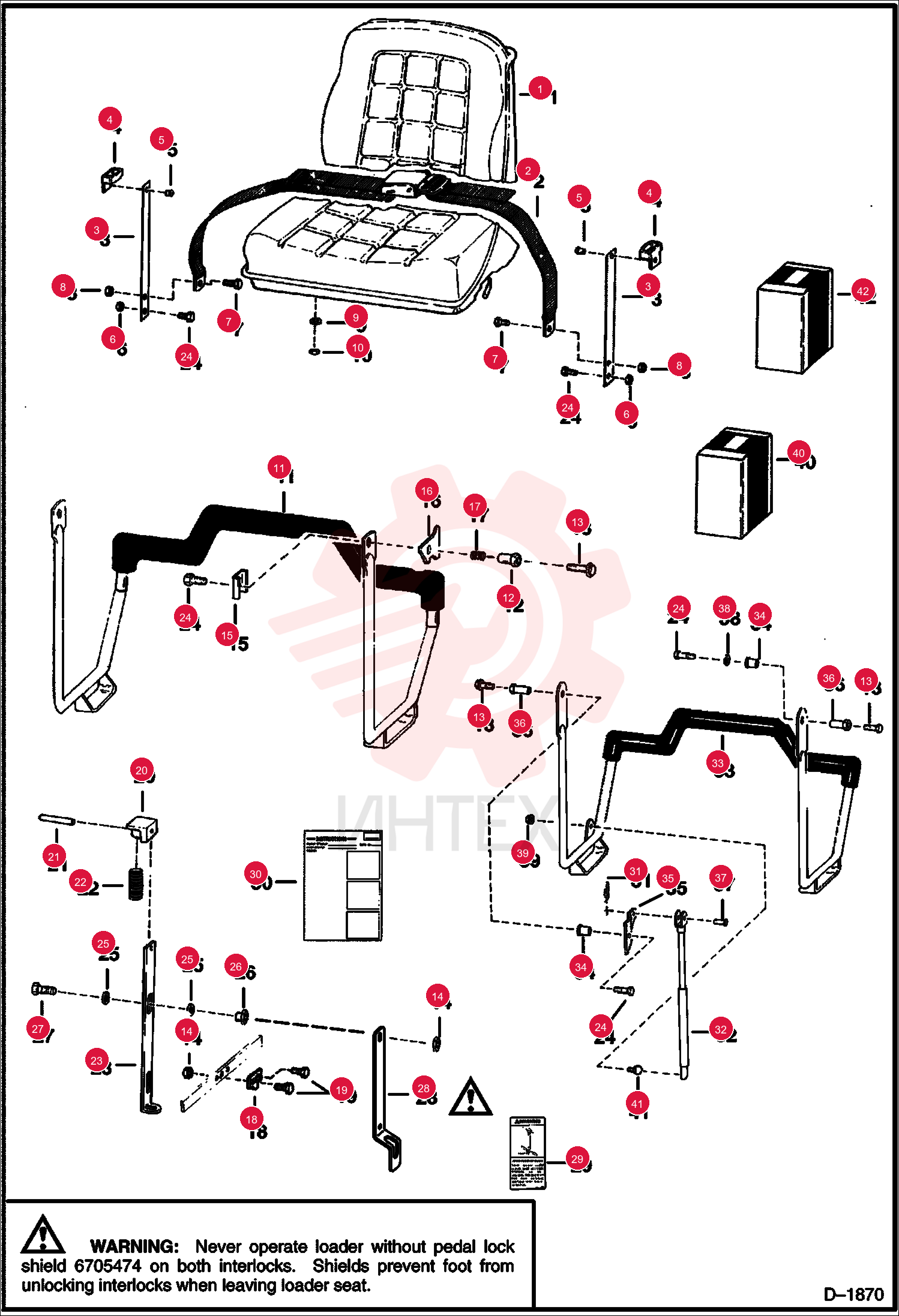

SEATBELT STANDARD 6675074 (1)
1 6675074
- 6675074 - SEATBELT STANDARD
- W/O spring plates
2 6711908
- 6711908 - SPNG PLATE
- Use W/Ref. 2 (NLA/6667875 Seat Belt)
3 6725373
- 6725373 - SPRING BELT GUIDE
- Use W/Ref. 2 (6675074 seal belt)
4 6630207
- 6630207 - RIVET POP
- Was 6512797
5 85D6
- 85D6 - NUT PRETRQ HEX LOCK
6 17C716
- 17C716 - BOLT
7 85D7
- 85D7 - NUT PRETRQ HEX LOCK
8 4E5
- 4E5 - WASHER
9 61D5
- 61D5 - NUT HEX FINISHED GR5
10 6706324
- 6706324 - ARM
- SEAT BAR
- one piece
11 6568742
- 6568742 - BUSHING
12 35C608
- 35C608 - BOLT
13 83D6
- 83D6 - LKNUT HEX FLG GR8
14 6563557
- 6563557 - WASHER
15 6563313
- 6563313 - RETAINER
16 6704453
- 6704453 - SPRING COMPRESSION
17 6563151
- 6563151 - LINK
18 17C616
- 17C616 - BOLT 5
19 6563148
- 6563148 - BLOCK
- SPRING
20 14J2512
- 14J2512 - PIN 5
21 6702430
- 6702430 - SPRING
- COMPRESSION
22 6578150
- 6578150 - LOCK
23 17C612
- 17C612 - SCREW HEX CAP
24 6700170
- 6700170 - WASHER
- plastic
25 6559479
- 6559479 - NUT RETAINING
26 6705489
- 6705489 - BOLT
27 6705474
- 6705474 - LOCK SHLD
- Never operate loader without pedal lock shield on both interlocks ... SEE WARNING ON PREVIOUS PAGE
28 6705720
- 6705720 - DECAL
29 6722392
- 6722392 - INSTRUCTIONS
- W/Ref. 28
30 6631418
- 6631418 - RING RUE
31 6664207
- 6664207 - CYLINDER
- GAS
32 6716778
- 6716778 - SEAT BAR
- for Use W/Gas Spring - Was 6706358
33 6706387
- 6706387 - BUSHING 5
34 6706388
- 6706388 - BRACKET
35 6706389
- 6706389 - BUSHING
36 4F5062
- 4F5062 - PIN
37 25E21
- 25E21 - WASHER FLAT PLAIN
38 83D5
- 83D5 - LKNUT HEX FLG GR8
39 6706796
- 6706796 - KIT
- SEAT BAR
- gas spring
40 6649244
- 6649244 - BALL STUD
