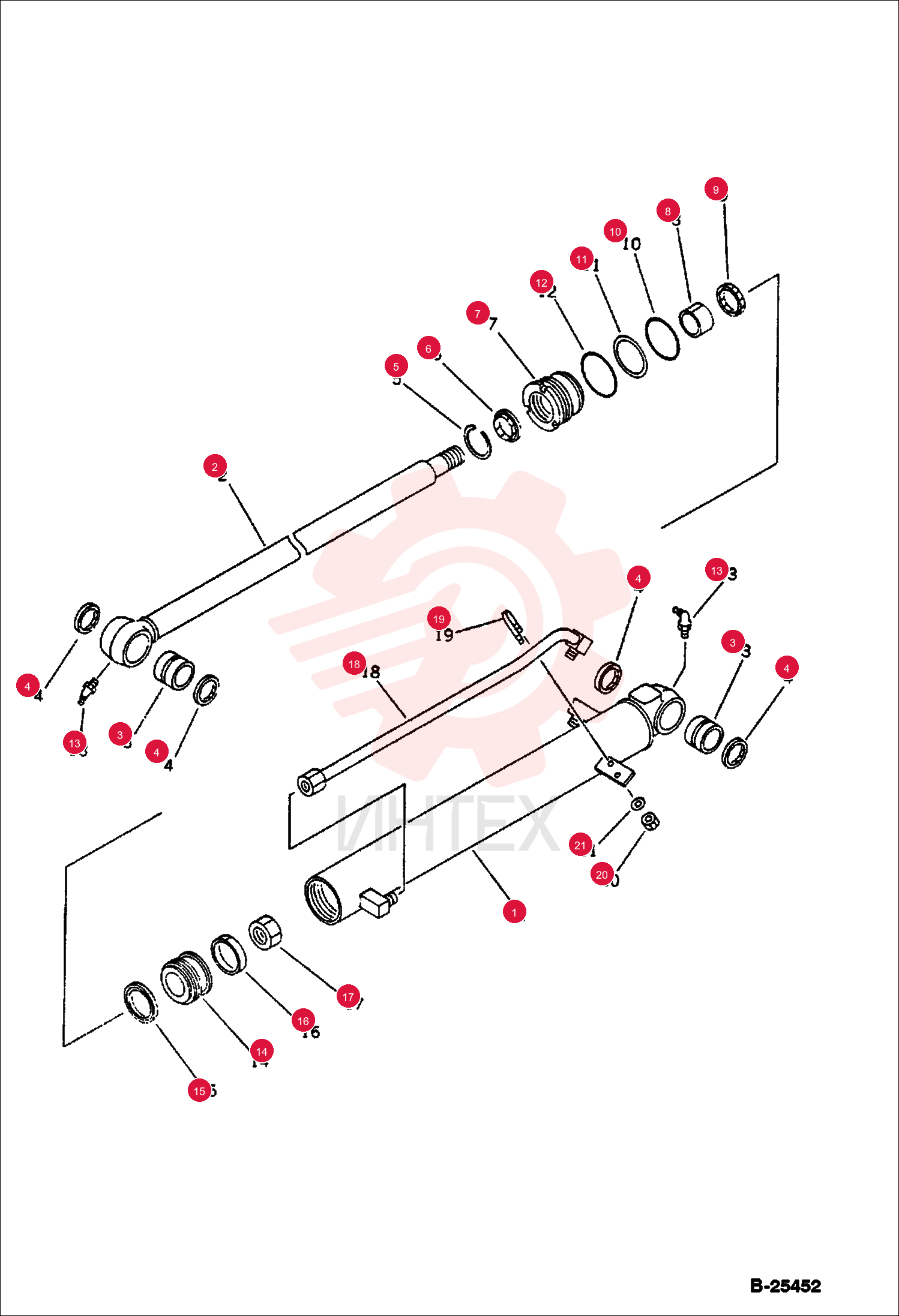

PISTONROD 6660517

PISTONROD 6660517

PISTONROD 6660517

1 6660517

  • 6660517 - PISTONROD

2 6637525

  • 6637525 - BUSHING

3 6637531

  • 6637531 - SEAL
  • DUST

4 6648863

  • 6648863 - SNAPRING

5 6640393

  • 6640393 - CYL HEAD

6 6637562

  • 6637562 - BUSHING

7 6640431

  • 6640431 - PACKING

8 6637375

  • 6637375 - O-RING

9 6637399

  • 6637399 - RING
  • BACK-UP

10 6637376

  • 6637376 - O-RING

11 6637432

  • 6637432 - FITTING

12 6637550

  • 6637550 - RING
  • PISTON

13 6637553

  • 6637553 - NUT

14 6654903

  • 6654903 - TUBE

15 6637636

  • 6637636 - CLIP

16 6637121

  • 6637121 - NUT

17 6637156

  • 6637156 - WASHER
