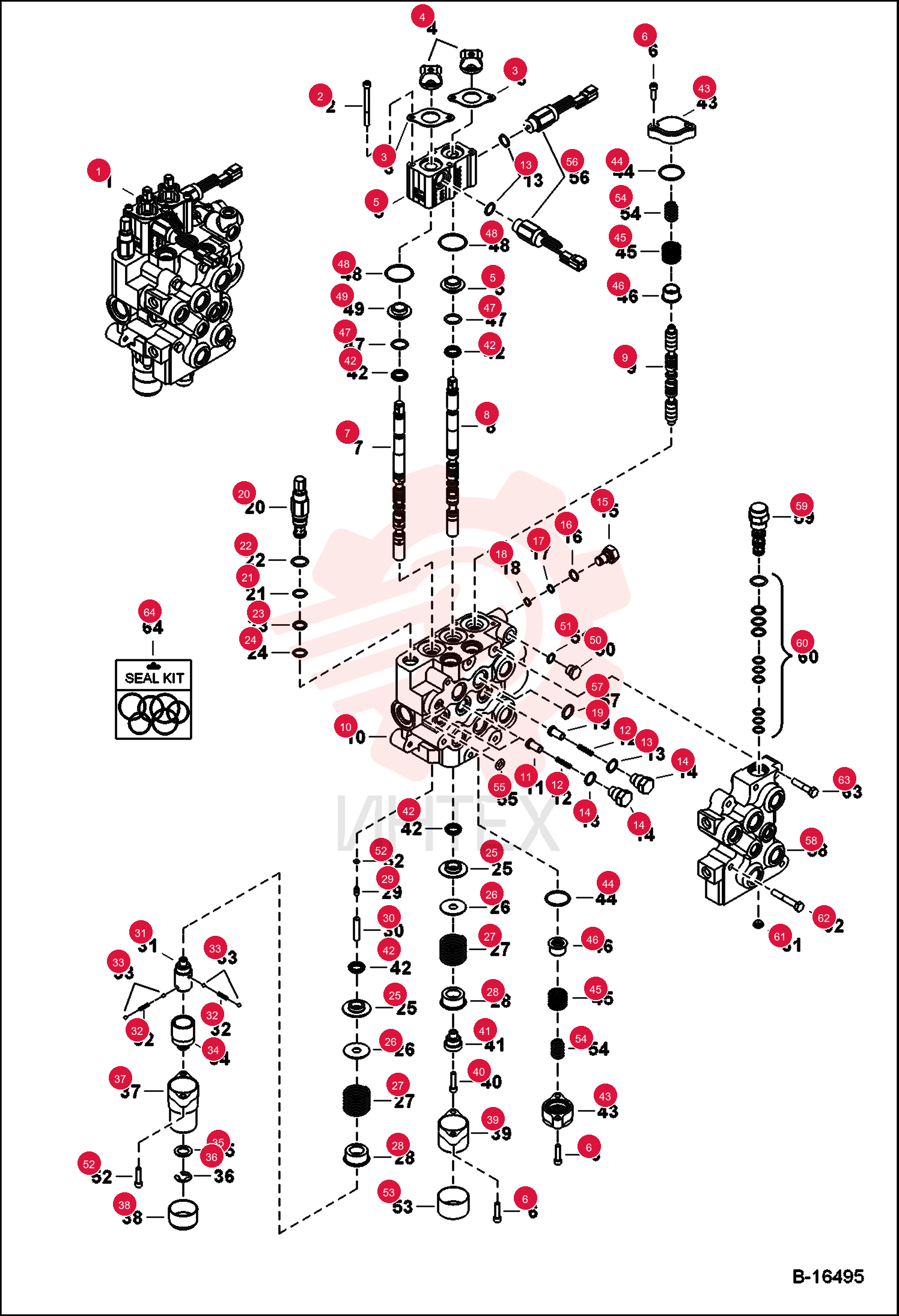

BOLT 29G444 (1)
1 29G444
- 29G444 - BOLT
2 6589564
- 6589564 - RETAINER
3 6587763
- 6587763 - BOOT
4 6812031
- 6812031 - SPOOL LOCK BLOCK
5 29G416
- 29G416 - BOLT
6 6814511
- 6814511 - SPOOL
- LIFT
- - Was 6674808
7 6674814
- 6674814 - SPOOL
- SERVICE
- tilt - # 1 or Red
8 7300937
- 7300937 - SPOOL AUX
- auxiliary - Was 6588074
9 6592115
- 6592115 - SEAT
- load check
10 6592117
- 6592117 - SPRING
- LOAD CHECK
11 79K8
- 79K8 - O RING 10
12 6592116
- 6592116 - NUT
- load check
13 6592720
- 6592720 - PLUG
- W/Ref. 16-18
14 79K10
- 79K10 - O RING 10
15 80K14
- 80K14 - BKUP WSH5
- - Was 73K000014B
16 58K014
- 58K014 - O-RING 10
17 6596569
- 6596569 - SEAT
18 7219324
- 7219324 - VALVE
- RELIEF
- W/ O-rings - pressure to be set in field - Was 6686360
19 58K017
- 58K017 - O-RING 10
20 6665569
- 6665569 - RING
- BACK-UP
- back-up
21 25K20016
- 25K20016 - O RING 10
22 6665570
- 6665570 - CLYD RING
- glide
23 6595663
- 6595663 - BUSHING
24 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
25 6587580
- 6587580 - SPRING
26 6592100
- 6592100 - COLLAR
27 6596807
- 6596807 - PLUG
- plastic - 0.46" long
28 6586918
- 6586918 - SCREW
- DETENT
29 6587575
- 6587575 - ADAPTER
30 6592107
- 6592107 - SPRING
- DETENT 5
31 6592105
- 6592105 - BALL 5
32 6531270
- 6531270 - SLEEVE
- DETENT
33 6592098
- 6592098 - WASHER
34 799119
- 799119 - RING
35 6589226
- 6589226 - COVER
- END
- 0.63" flange
36 6660644
- 6660644 - CAP
37 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- - Was 6587633
38 7102652
- 7102652 - SCREW
- Was 30G000416B
39 6592109
- 6592109 - ADAPTER
40 6683274
- 6683274 - SEAL
- SPOOL 10
- - spool - Was 6665846
41 6588781
- 6588781 - END CAP
42 58K124
- 58K124 - O RING 10
43 6596332
- 6596332 - SPRING
44 7108780
- 7108780 - SLEEVE
- - Was 6595951
45 82K019
- 82K019 - O-RING
- alignment
46 1K127
- 1K127 - O-RING 10
- - Was 93K127
47 7202038
- 7202038 - BUSHING
- ALIGNMENT
- Also Order 82K019 alignment O-ring - Was 6805102
48 90K8
- 90K8 - PLUG
- W/Ref. 51 - flat boss face
49 95K12
- 95K12 - O-RING
- tapered boss face
50 75K12
- 75K12 - O'RING 10
- flat boss face
51 54K20002
- 54K20002 - O'RING 10
52 6662848
- 6662848 - CAP
53 6806007
- 6806007 - SPRING
54 55K212
- 55K212 - O RING 10
55 6676029
- 6676029 - SOLENOID
- LOCK SPOOL
- 127 mm (5") wire - W/Ref. 13 - 3-pin connector - Order for production valve
56 55K204
- 55K204 - O RING 10
57 6689739
- 6689739 - VALVE
58 6690431
- 6690431 - KIT
- SEAL
- Was 6669734
59 43C524
- 43C524 - BOLT
60 43C532
- 43C532 - BOLT
61 6668791
- 6668791 - ORIFICE
62 6816253
- 6816253 - KIT
- SEAL
- complete - Ref. 2
- 4
- 13
- 16-18
- 21-24
- 42
- 44
- 48
- 52
- 55 & 57 - Was 6809448
63 6816252
- 6816252 - SEAL KIT
- spool - Ref. 2
- 4
- 29
- 42
- 48 & 52 - Was 6806941
64 6632279
- 6632279 - KIT
- SEAL
- main relief - Ref. 21-24
65 6809425
- 6809425 - SEAL KIT
- Ref. 13 & 16-18
66 6690431
- 6690431 - KIT
- SEAL
- Was 6669734
