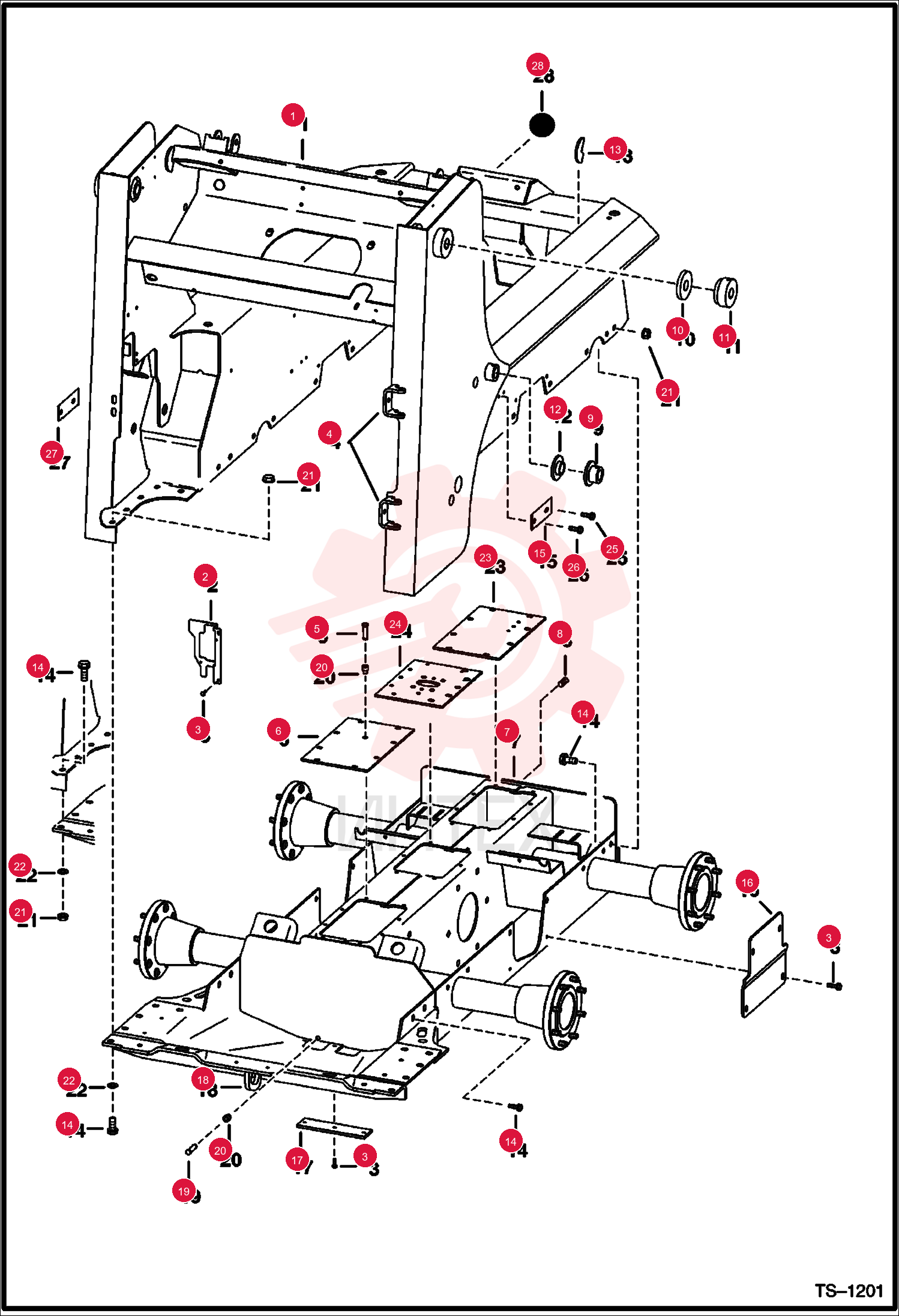

FRAME, MAIN 6714591 (2)
1 6714591
- 6714591 - FRAME
- MAIN
2 6731060
- 6731060 - SHIELD
- WAS 6717812
3 84G3712
- 84G3712 - SCREW THD ROLLING TT
4 6708987
- 6708987 - HINGE
- WELD-ON
5 6680970
- 6680970 - VENT BREATHER
- WAS 6670627
6 6700330
- 6700330 - COVER
7 6712826
- 6712826 - CHAINCASE
8 6731121
- 6731121 - PLUG RECESSED PIPE
- chaincase fill - Was 11F000012B
9 6705047
- 6705047 - BUSHING
- weld on
10 6702409
- 6702409 - BUSHING
- weld on
11 6702959
- 6702959 - BUSHING
- weld on
12 6725210
- 6725210 - BUSHING
13 6725210
- 6725210 - BUSHING
14 6725210
- 6725210 - BUSHING
15 6707515
- 6707515 - PLATE
- BRACE
- frame - weld on
16 31C820
- 31C820 - BOLT
17 6727837
- 6727837 - COVER
- 5.16" (131 mm) long
18 6733701
- 6733701 - COVER
- Was 6704695
19 6700182
- 6700182 - COVER
- DRAIN
20 6706485
- 6706485 - BRACKET
- tie down - weld-on - front & back
21 6599645
- 6599645 - PLUG
- STEEL
- chaincase drain
22 6553411
- 6553411 - BUSHING
- PRESS FIT 5
23 83D8
- 83D8 - LKNUT HEX FLG GR8
24 6701097
- 6701097 - WASHER
25 6578505
- 6578505 - COVER
26 6706042
- 6706042 - COVER
27 84G3110
- 84G3110 - SCREW
- R.H. side - .62" long
28 84G3112
- 84G3112 - SCREW THD ROLLING TT
- L.H. side - 3/4" long
29 84G3710
- 84G3710 - SCREW
- 3/8 x .62"
30 17C620
- 17C620 - BOLT
- Was 6717378
31 6727837
- 6727837 - COVER
- 5.5" (139
- 7 mm) long - two hole threaded
32 6718796
- 6718796 - PLUG
