763.0
/

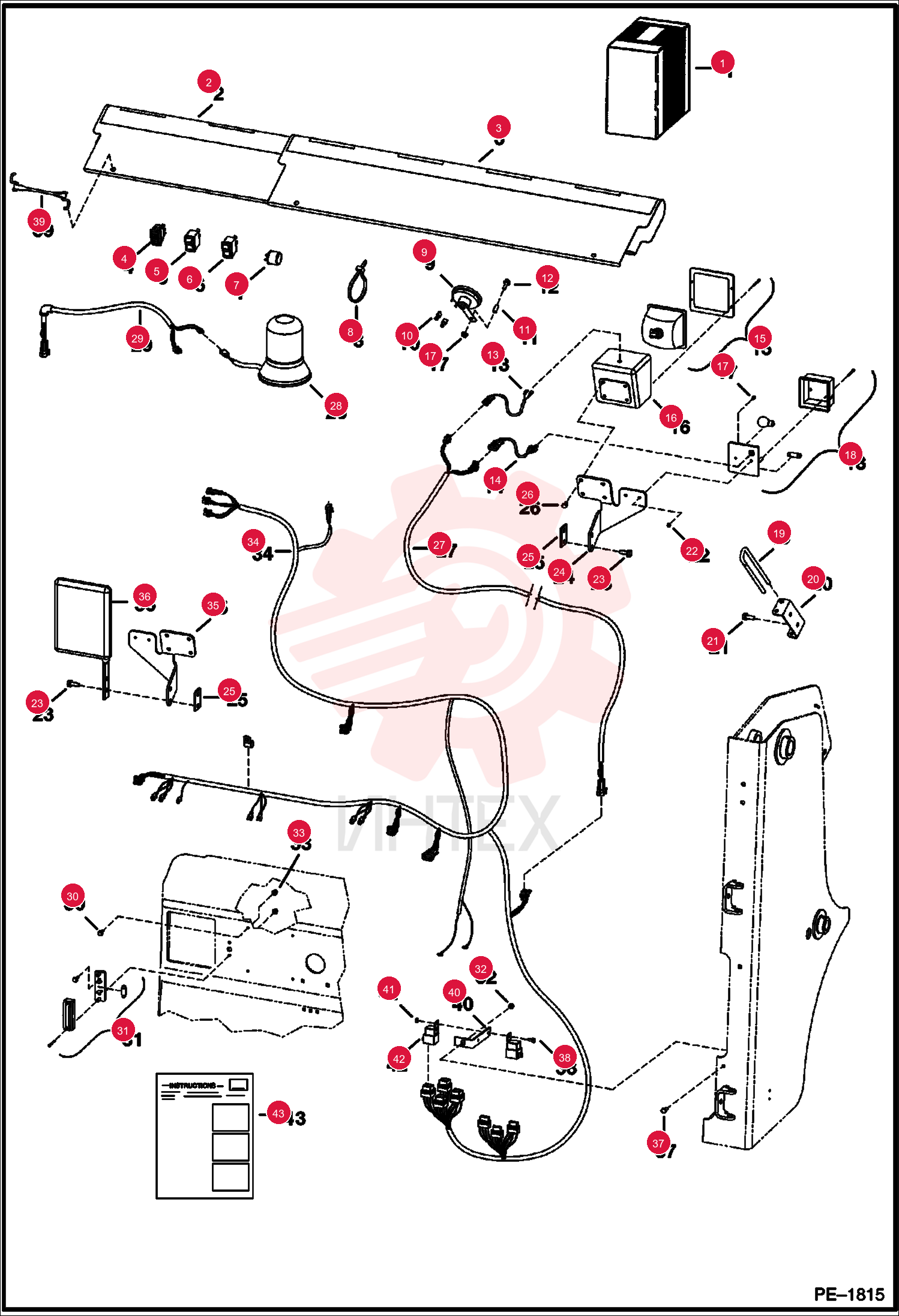

SHIELD 6713841

SHIELD 6713841

SHIELD 6713841

1 6713841

  • 6713841 - SHIELD
  • bucket

2 6714820

  • 6714820 - SHIELD
  • bucket

3 6676872

  • 6676872 - INDICATOR
  • TURN SIGNAL

4 6668815

  • 6668815 - SWITCH
  • hazard

5 6668816

  • 6668816 - SWITCH
  • beacon

6 6557904

  • 6557904 - FLASHER

7 6624289

  • 6624289 - STRAP
  • TIE

8 6671106

  • 6671106 - ALARM

9 6675064

  • 6675064 - CONNECTOR

10 6732206

  • 6732206 - SPACER

11 35C536

  • 35C536 - BOLT

12 6713994

  • 6713994 - HARNESS
  • adapter - headlight

13 6713993

  • 6713993 - ADAPTER
  • MARKER LIGHT
  • adapter - light

14 6666566

  • 6666566 - GASKET

15 6666565

  • 6666565 - LENS

16 6666564

  • 6666564 - HOUSING

17 7352849

  • 7352849 - BULB HALOGEN
  • halogen - 12V

18 7352849

  • 7352849 - BULB HALOGEN
  • 40/45W

19 6666570

  • 6666570 - BULB
  • 40/45W

20 6665728

  • 6665728 - FRT LIGHT
  • front

21 6707804

  • 6707804 - HOUSING LIGHT

22 85G808

  • 85G808 - SCREW

23 6666568

  • 6666568 - BULB
  • 21W

24 6665727

  • 6665727 - LIGHT
  • TURN

25 7228077

  • 7228077 - LIGHT BULB 12V C5W

26 6731222

  • 6731222 - PIN
  • Bob-Tach

27 6731973

  • 6731973 - HOLDER
  • pin

28 84G3712

  • 84G3712 - SCREW THD ROLLING TT

29 12D8

  • 12D8 - NUT HEX MACH SCREW

30 84G3716

  • 84G3716 - SCREW THD ROLLING TT

31 6735825

  • 6735825 - SPACER

32 17C508

  • 17C508 - BOLT

33 6731239

  • 6731239 - HARNESS
  • boom light

34 7341779

  • 7341779 - LIGHT BEACON
  • Was 6675523

35 6718872

  • 6718872 - HARNESS
  • cab exterior

36 35C410

  • 35C410 - SCREW HEX HD W/F GR5

37 6665729

  • 6665729 - LIC LIGHT

38 55D5

  • 55D5 - NUT

39 83D4

  • 83D4 - LKNUT HEX FLG GR8

40 6726430

  • 6726430 - HARNESS ITL ENG/TAIL
  • engine/tail - Italian

41 6713150

  • 6713150 - BRACKET
  • light - L.H.

42 6665860

  • 6665860 - MIRROR
  • side mirror

43 17C512

  • 17C512 - BOLT 5

44 17C410

  • 17C410 - BOLT 10

45 6731819

  • 6731819 - STRAP RUBBER
  • rubber

46 6702650

  • 6702650 - MOUNT FUSE
  • fuse

47 85D4

  • 85D4 - NUT 5

48 6670312

  • 6670312 - SWITCH
  • MAGNETIC
  • relay

49 6901663

  • 6901663 - INSTRUCTIONS
