773.0
/

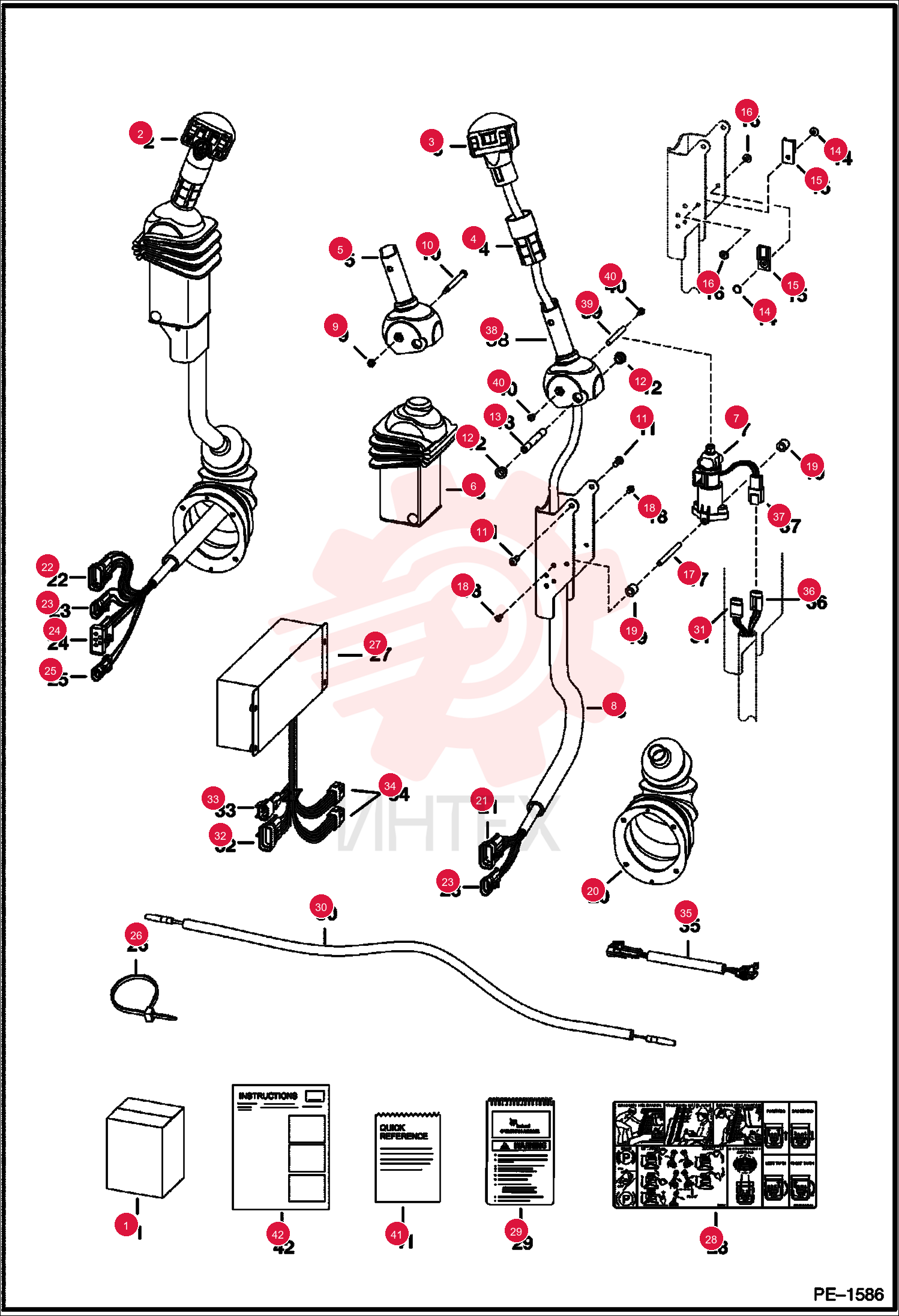

KIT, AHC 6727298

KIT, AHC 6727298

KIT, AHC 6727298

1 6727298

  • 6727298 - KIT
  • AHC
  • SEE NOTE

2 6684913

  • 6684913 - LEVER
  • tilt - RH - Was 6675742

3 6684914

  • 6684914 - LEVER
  • lift - LH - Was 6675750

4 6680417

  • 6680417 - HANDLE
  • AHC
  • lift - LH - Was 6675749

5 6680471

  • 6680471 - BOOT
  • Was 6713898

6 6684910

  • 6684910 - SENSOR
  • ELEC AHC
  • Was 6675741

7 6670706

  • 6670706 - CONNECTOR
  • 3-pin

8 6670714

  • 6670714 - PIN TERMINAL

9 6670710

  • 6670710 - PLUG

10 6680481

  • 6680481 - CHANNEL
  • RH - Was 6719712

11 6680480

  • 6680480 - CHANNEL
  • LH - Was 6719711

12 12D10

  • 12D10 - NUT

13 6716826

  • 6716826 - BOLT

14 25GT410

  • 25GT410 - SCREW

15 6702990

  • 6702990 - BUSHING

16 6713043

  • 6713043 - SPACER

17 6665321

  • 6665321 - RIVET PLASTIC MALE
  • male

18 6665000

  • 6665000 - BRACKET MOUNTING

19 6665322

  • 6665322 - RIVET PLASTIC FEMALE
  • female

20 6719834

  • 6719834 - SPACER
  • threaded

21 6727065

  • 6727065 - SCREW

22 6719835

  • 6719835 - SLEEVE

23 6532127

  • 6532127 - BOOT AND PLATE ASSY

24 6640692

  • 6640692 - CONNECTOR
  • 10-pin

25 6640690

  • 6640690 - PIN

26 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

27 6641176

  • 6641176 - SEAL

28 6646582

  • 6646582 - PLUG
  • cavity

29 6640690

  • 6640690 - PIN

30 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

31 6641176

  • 6641176 - SEAL

32 6646582

  • 6646582 - PLUG
  • cavity

33 6640692

  • 6640692 - CONNECTOR
  • 10-pin

34 6641176

  • 6641176 - SEAL

35 6640700

  • 6640700 - LOCK METRI PACK

36 6640699

  • 6640699 - CONNECTOR METRI PACK
  • 3-pin

37 6640690

  • 6640690 - PIN

38 6641176

  • 6641176 - SEAL

39 6646582

  • 6646582 - PLUG
  • cavity

40 6667145

  • 6667145 - LOCK
  • Use W/ 5-pin connector

41 6640690

  • 6640690 - PIN

42 6667144

  • 6667144 - CONNECTOR
  • 5-pin

43 6641179

  • 6641179 - CONNECTOR METRI PACK
  • 2-pin

44 6640690

  • 6640690 - PIN

45 6641176

  • 6641176 - SEAL

46 6641180

  • 6641180 - LOCK METRI PACK
  • Use W/ 2-pin connector

47 6610510

  • 6610510 - STRAP
  • TIE 10

48 6676153

  • 6676153 - CONTROLLER
  • AHC METAL

49 6727155

  • 6727155 - DECAL

50 6718719

  • 6718719 - OHB
  • W/WIRE ROPE

51 6727328

  • 6727328 - HARNESS

52 6670711

  • 6670711 - LOCK

53 6670707

  • 6670707 - CONNECTOR
  • 3-pin

54 6670715

  • 6670715 - SOCKET

55 6641176

  • 6641176 - SEAL

56 6646582

  • 6646582 - PLUG
  • cavity

57 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

58 6640690

  • 6640690 - PIN

59 6640692

  • 6640692 - CONNECTOR
  • 10-pin

60 6648307

  • 6648307 - CONNECTOR
  • 2-pin

61 6670709

  • 6670709 - CONNECTOR
  • 8-pin

62 6728742

  • 6728742 - HARN.JUMPER
  • W/capacitor

63 6677364

  • 6677364 - CONNECTOR
  • 3-pin

64 6676640

  • 6676640 - PLUG
  • SEAL

65 6676640

  • 6676640 - PLUG
  • SEAL

66 6670715

  • 6670715 - SOCKET

67 6670711

  • 6670711 - LOCK

68 6676870

  • 6676870 - CONNECTOR
  • 3-pin

69 6729594

  • 6729594 - HANDLE
  • RH

70 6729595

  • 6729595 - HANDLE
  • LH

71 6680469

  • 6680469 - SPACER
  • Was 6729600

72 6727065

  • 6727065 - SCREW

73 6718719

  • 6718719 - OHB
  • W/WIRE ROPE
  • Was 6902600

74 6901100

  • 6901100 - INSTRUCTIONS
