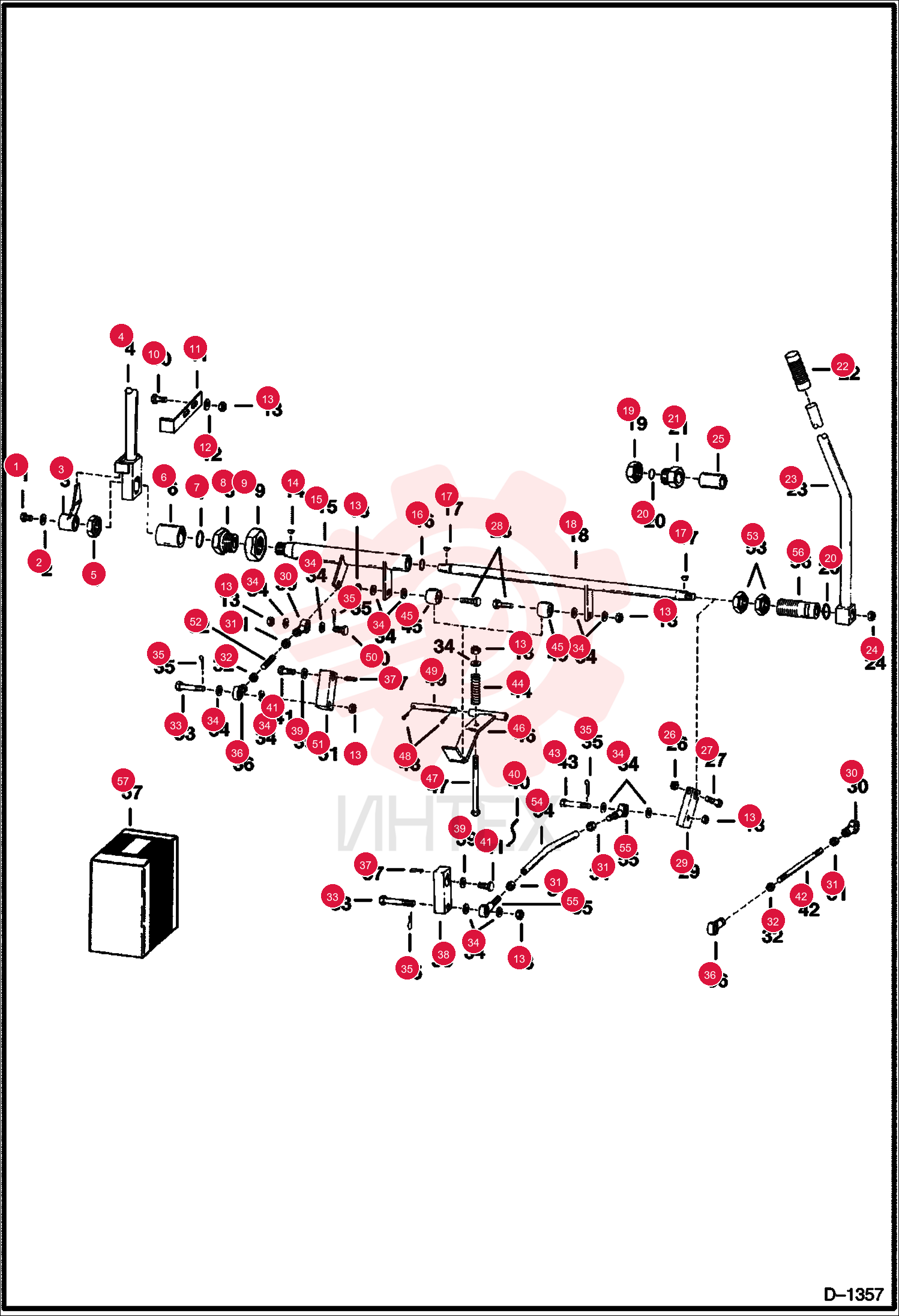

BOLT 5 17C512
1 17C512
- 17C512 - BOLT 5
2 6543540
- 6543540 - ARM
- control
3 6543533
- 6543533 - NUT
4 6543543
- 6543543 - SPACER
5 25K40116
- 25K40116 - O RING 10
6 6543556
- 6543556 - BUSHING
7 6543532
- 6543532 - NUT
8 17C612
- 17C612 - SCREW HEX CAP
9 6552559
- 6552559 - STOP
10 25E18
- 25E18 - WASHER FLAT PLAIN
11 86D6
- 86D6 - NUT
12 5J807
- 5J807 - KEY
- woodruff
13 6543554
- 6543554 - TUBE
14 25K30022
- 25K30022 - O RING 10
15 5J806
- 5J806 - KEY
- woodruff
16 6543555
- 6543555 - SHAFT
- arm
17 25K40028
- 25K40028 - O RING 10
18 6513963
- 6513963 - GRIP HANDLE
19 6591096
- 6591096 - LEVER
- R.H.
20 86D10
- 86D10 - NUT
21 86D5
- 86D5 - NUT
22 18C536
- 18C536 - BOLT
23 18C624
- 18C624 - BOLT
24 6543559
- 6543559 - LEVER
25 6512954
- 6512954 - ROD END
- R.H. threads
26 8D6
- 8D6 - NUT HEX JAM
27 13D6
- 13D6 - NUT LH HEX JAM
28 6554714
- 6554714 - BOLT
29 25E17
- 25E17 - WASHER FLAT PLAIN
30 1F316
- 1F316 - PIN
31 6512955
- 6512955 - CONNECTOR ROD END
- LH threads
32 7J3010
- 7J3010 - KEY
- square
33 6543614
- 6543614 - LEVER
- R.H.
34 616783
- 616783 - WASHER
35 6554715
- 6554715 - BOLT
36 6505082
- 6505082 - SPRING
37 6543546
- 6543546 - CAMSHAFT ASSEMBLY
- roller
38 6554749
- 6554749 - BOLT
39 1F416
- 1F416 - PIN
40 6543545
- 6543545 - PIN
41 6554716
- 6554716 - BOLT
42 6543615
- 6543615 - LEVER
- L.H.
43 6543261
- 6543261 - ROD
- control - L.H.
44 86F10
- 86F10 - NUT
45 6598677
- 6598677 - ROD END
- end
46 6590686
- 6590686 - KIT
- BAR
- NLA - control rod - Ref. 31
- 54 & 55 - Order Ref. 31 & (2) of Ref. 55
