Главная
/
Бренды
/
Bobcat
/
825.0
/

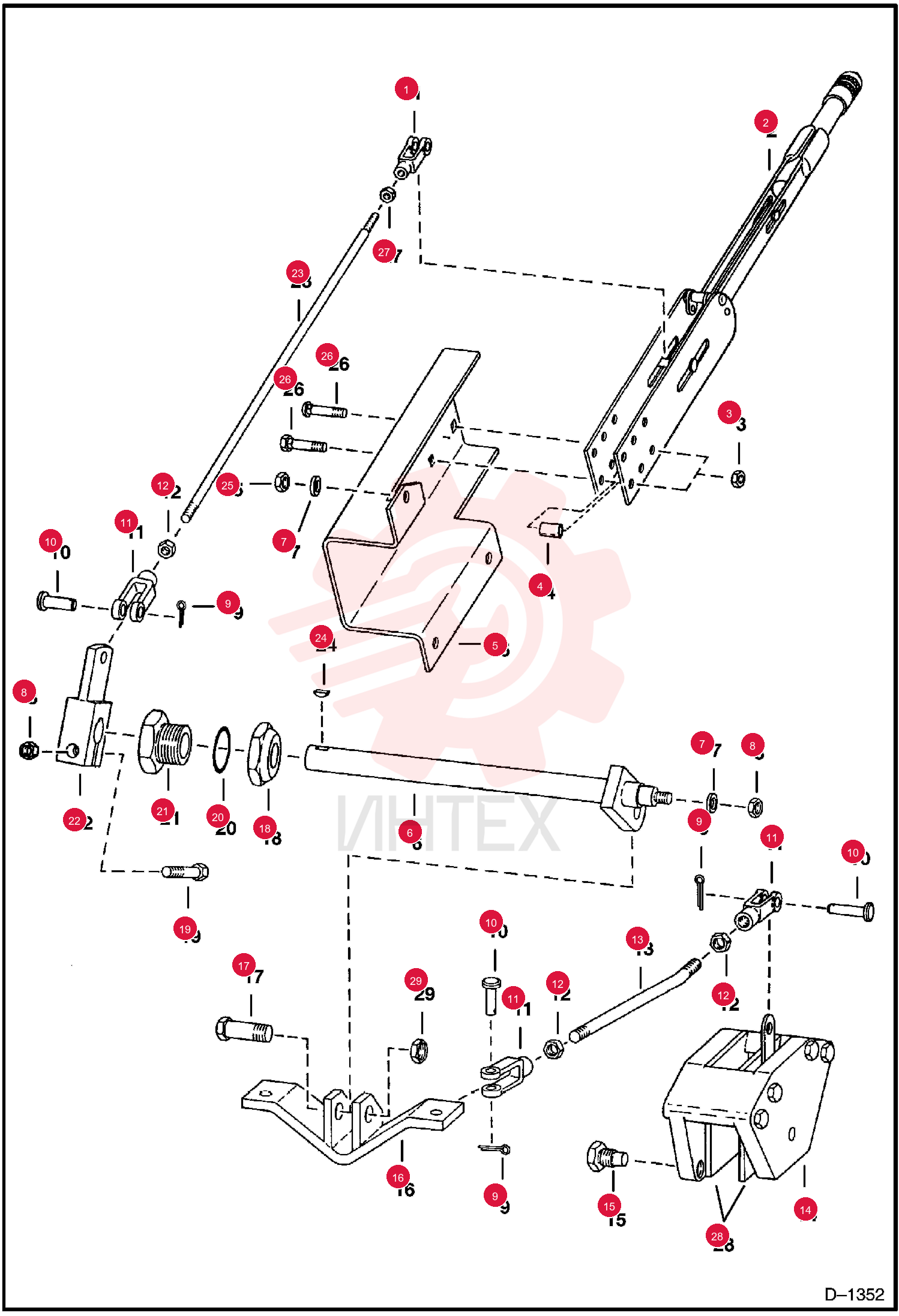

YOKE 2J5204

YOKE 2J5204

YOKE 2J5204

1 2J5204

  • 2J5204 - YOKE

2 6512806

  • 6512806 - LEVER

3 6519000

  • 6519000 - BRK LEVER

4 91D5

  • 91D5 - NUT 5
  • Was 81D000005B

5 6554528

  • 6554528 - MOUNT
  • BRACKET

6 6554511

  • 6554511 - SHAFT

7 25E18

  • 25E18 - WASHER FLAT PLAIN

8 82D6

  • 82D6 - NUT

9 1F316

  • 1F316 - PIN

10 4F6106

  • 4F6106 - PIN HARDENED CLEVIS

11 2J6208

  • 2J6208 - YOKE

12 8D6

  • 8D6 - NUT HEX JAM

13 6554518

  • 6554518 - ROD

14 6552212

  • 6552212 - SCREW

15 6554515

  • 6554515 - PLATE

16 38C820

  • 38C820 - SCREW
  • Was 661847B

17 17C632

  • 17C632 - BOLT 5

18 25K40028

  • 25K40028 - O RING 10

19 6543547

  • 6543547 - BUSHING

20 6554512

  • 6554512 - LEVER

21 6554508

  • 6554508 - ROD

22 5J808

  • 5J808 - KEY

23 81D6

  • 81D6 - NUT

24 7C528

  • 7C528 - BOLT

25 8D5

  • 8D5 - NUT

26 6513603

  • 6513603 - PAD
  • BRAKE
  • brake

27 59D6

  • 59D6 - NUT LOCK HEX PT
