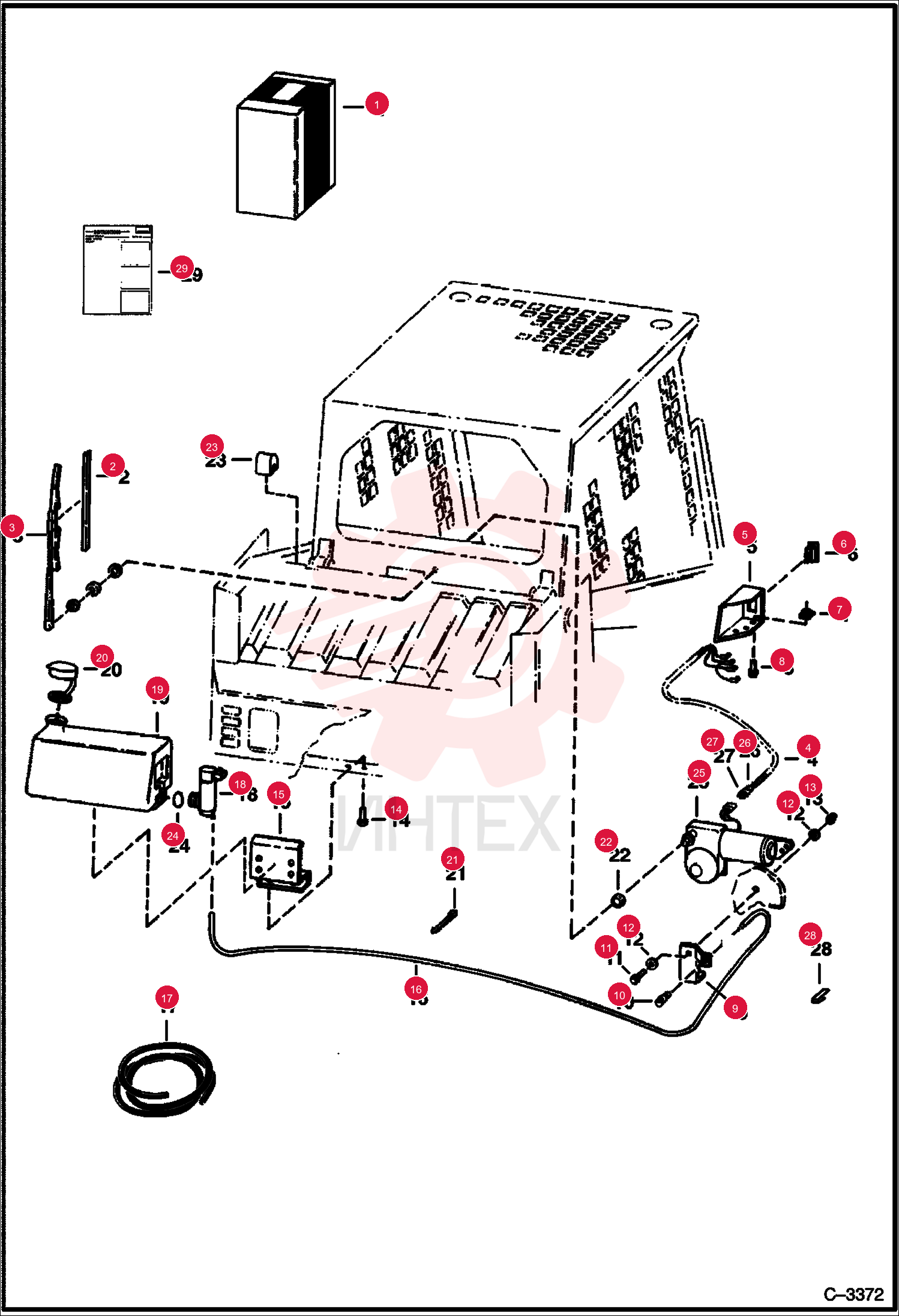

RWIPERKIT 6712688 (2)

RWIPERKIT 6712688 (2)

RWIPERKIT 6712688 (2)

1 6712688

  • 6712688 - RWIPERKIT
  • rear wiper - Ref. 2-23 & 25-29

2 6665688

  • 6665688 - BLADE

3 6665687

  • 6665687 - ARM
  • WIPER
  • Was 1744552B

4 6712260

  • 6712260 - HARNESS
  • W/10-pin connector - W/(2) diode

5 6708280

  • 6708280 - MOUNT
  • switch

6 6668817

  • 6668817 - SWITCH
  • rocker - Was 6665706

7 7160765

  • 7160765 - NUT
  • Was 6660988

8 35C412

  • 35C412 - SCREW FLGD HEX CAP

9 6708286

  • 6708286 - MOUNT
  • nozzle

10 6666767

  • 6666767 - NOZZLE
  • Was 6664555

11 17C514

  • 17C514 - BOLT
  • Was 35C000514B

12 25E15

  • 25E15 - WASHER FLAT PLAIN

13 83D5

  • 83D5 - LKNUT HEX FLG GR8

14 84G3710

  • 84G3710 - SCREW

15 6708044

  • 6708044 - MOUNT
  • tank

16 6708310

  • 6708310 - HOSE
  • BULK/FT 100
  • clear - 0.154" ID - sold per foot

17 6664554

  • 6664554 - PUMP
  • WIPER WASHER

18 6708035

  • 6708035 - TANK

19 6665605

  • 6665605 - CAP

20 6610510

  • 6610510 - STRAP
  • TIE 10

21 6708069

  • 6708069 - BUSHING

22 6708272

  • 6708272 - STOP.CAB
  • cab

23 6666766

  • 6666766 - GROMMET
  • not in kit

24 6665602

  • 6665602 - MOTOR

25 6641179

  • 6641179 - CONNECTOR METRI PACK
  • 2-pin

26 6641180

  • 6641180 - LOCK METRI PACK
  • Use W/ 2-pin connector

27 6669308

  • 6669308 - RETAINER
  • snap-in

28 6724788

  • 6724788 - INSTRUCTIONS
