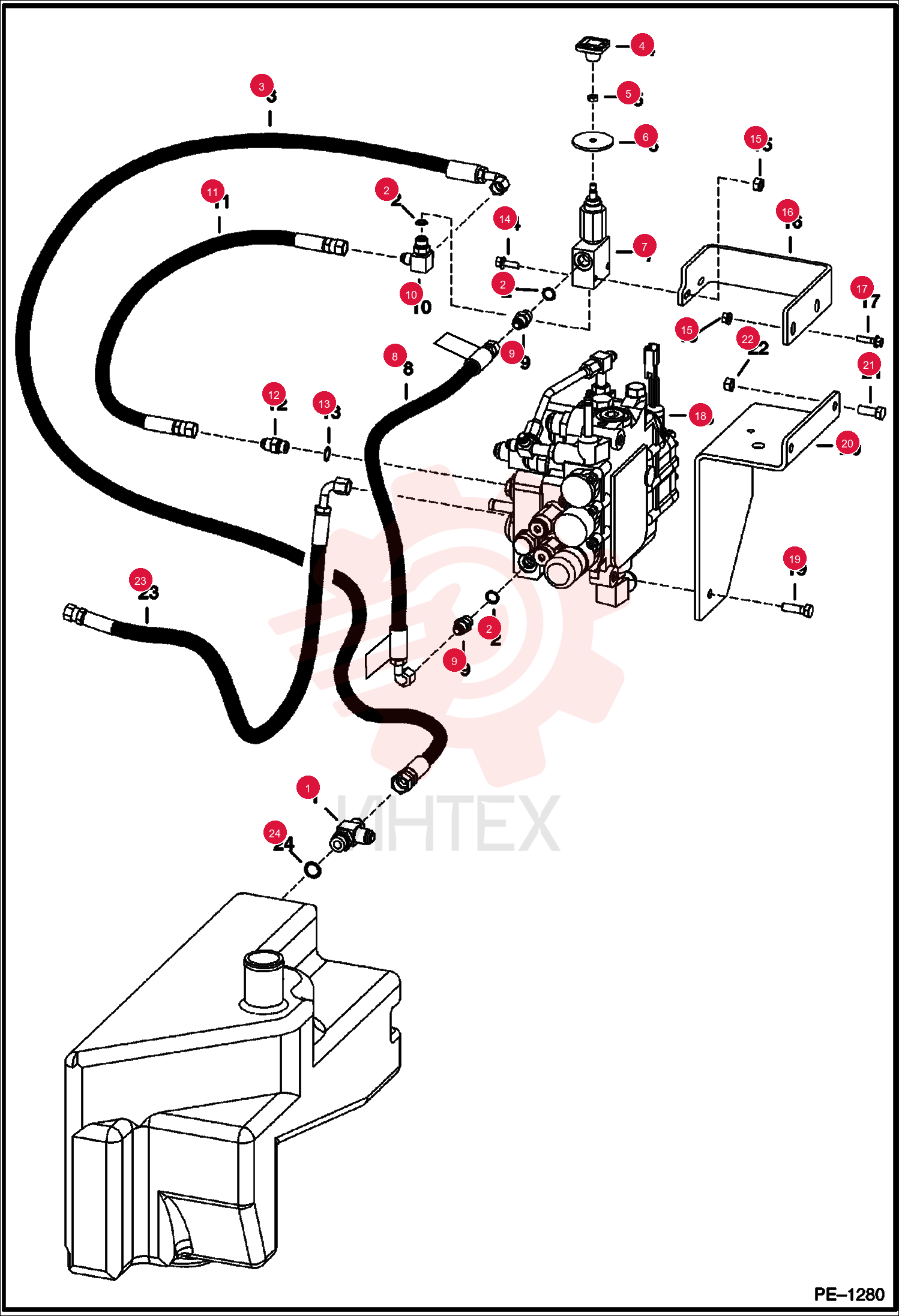

FITTING, HYD TEE 21KB0808
1 21KB0808
- 21KB0808 - FITTING
- HYD TEE
- W/Ref. 24 - Was 21KV00006B
2 97K8
- 97K8 - O-RING
- flared end
3 99K6
- 99K6 - O-RING
- tapered boss face
4 79K6
- 79K6 - O RING 10
- flat boss face
5 6725440
- 6725440 - HOSE
6 6737524
- 6737524 - HANDLE CONTROL
- red square - Was 6668913
7 7D4
- 7D4 - NUT HEX JAM
8 6707101
- 6707101 - SEAL NEOPRENE
- neoprene
9 7230495
- 7230495 - LIFTARM BYPASS
- - manual lift release - Was 6667844
10 6716124
- 6716124 - HOSE
- 20" (508 mm) long
11 6729602
- 6729602 - HOSE
- 21" (533 mm) long - available only as an assembly W/two danger decals installed
12 6809511
- 6809511 - DECAL
- DANGER
13 15KB0606
- 15KB0606 - FITTING
- HYD CONNECTOR
- W/Ref. 2
14 97K6
- 97K6 - O-RING
- flared end
15 6725182
- 6725182 - TEE
- W/Ref. 2 - Check Boss Face to Determine Correct Replacement O-Ring
16 6589723
- 6589723 - HOSE
17 90K8
- 90K8 - PLUG
- W/Ref. 13 - Was 90KV00008B
18 97K12
- 97K12 - O-RING
- flared end
19 95K12
- 95K12 - O-RING
20 17C428
- 17C428 - BOLT
21 83D4
- 83D4 - LKNUT HEX FLG GR8
22 6719936
- 6719936 - MNT VALVE
23 35C416
- 35C416 - BOLT
24 6717378
- 6717378 - BOLT
25 6735728
- 6735728 - MOUNT
- Was 6727751
26 35C616
- 35C616 - SCREW FLGD HEX CAP
27 85D6
- 85D6 - NUT PRETRQ HEX LOCK
28 6725090
- 6725090 - HOSE
29 99K8
- 99K8 - O-RING
