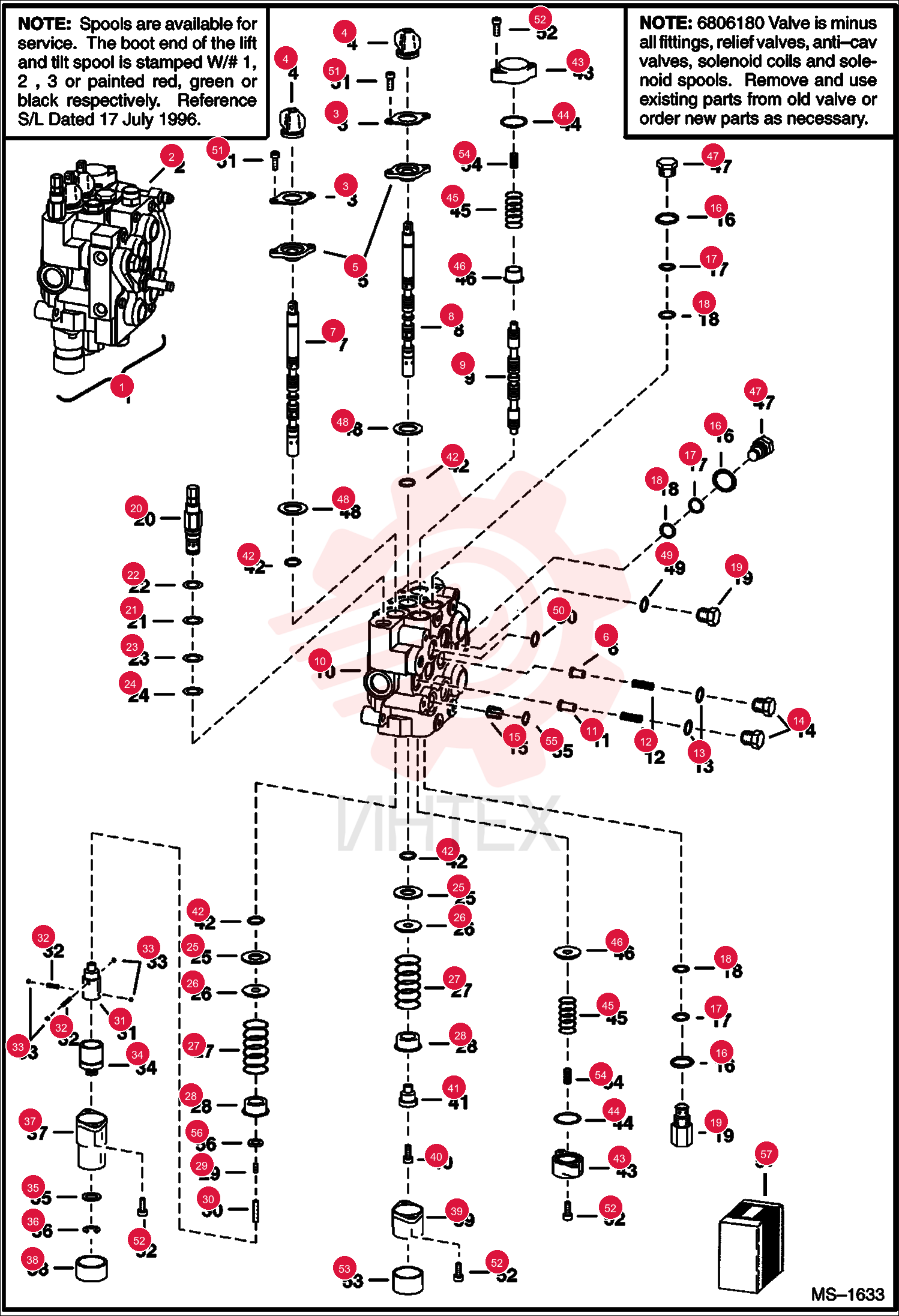

RETAINER 6589564 (1)
1 6589564
- 6589564 - RETAINER
2 6587763
- 6587763 - BOOT
3 6589565
- 6589565 - SEAL
- seal
4 6596569
- 6596569 - SEAT
- load check
5 7222716
- 7222716 - SPOOL
- LIFT
- lift - #1 or red - SEE NOTE - Was 6674805
6 7222717
- 7222717 - SPOOL
- LIFT
- lift - #2 or green - SEE NOTE - Was 6674806
7 7222718
- 7222718 - SPOOL
- LIFT
- lift - #3 or black - SEE NOTE - Was 6674807
8 6674811
- 6674811 - SPOOL
- SERVICE
- tilt - # 1 or Red - SEE NOTE
9 6674813
- 6674813 - SPOOL
- SERVICE
- tilt - # 3 or Black - SEE NOTE
10 6674812
- 6674812 - SPOOL
- SERVICE
- tilt - # 2 or Green - SEE NOTE
11 7300937
- 7300937 - SPOOL AUX
- auxiliary - SEE NOTE - Was 6588074
12 6592115
- 6592115 - SEAT
- load check
13 6592117
- 6592117 - SPRING
- LOAD CHECK
14 79K8
- 79K8 - O RING 10
15 6592116
- 6592116 - NUT
- load check
16 6800124
- 6800124 - RESTRICTOR
17 79K10
- 79K10 - O RING 10
18 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
19 58K014
- 58K014 - O-RING 10
- back-up washer required
20 6677106
- 6677106 - O-RING
- back-up washer not required
21 90K8
- 90K8 - PLUG
- W/Ref. 49 - socket head - Was 90KV00008B
22 7219324
- 7219324 - VALVE
- RELIEF
- W/ O-rings - pressure to be set in field - Was 6686360
23 58K017
- 58K017 - O-RING 10
24 6665569
- 6665569 - RING
- BACK-UP
- back-up
25 25K20016
- 25K20016 - O RING 10
26 6665570
- 6665570 - CLYD RING
- glide
27 6595663
- 6595663 - BUSHING
28 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
29 6587580
- 6587580 - SPRING
30 6592100
- 6592100 - COLLAR
31 6596807
- 6596807 - PLUG
- plastic - 0.46" long
32 6586918
- 6586918 - SCREW
- DETENT
33 6587575
- 6587575 - ADAPTER
34 6592107
- 6592107 - SPRING
- DETENT 5
35 6592105
- 6592105 - BALL 5
36 6531270
- 6531270 - SLEEVE
- DETENT
37 6592098
- 6592098 - WASHER
38 799119
- 799119 - RING
39 6589226
- 6589226 - COVER
- END
- 0.63" flange
40 6660644
- 6660644 - CAP
41 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- Was 6587633
42 30G416
- 30G416 - BOLT
43 6592109
- 6592109 - ADAPTER
44 6683274
- 6683274 - SEAL
- SPOOL 10
- spool - Was 6665846
45 6588781
- 6588781 - END CAP
- .87" thick
46 58K124
- 58K124 - O RING 10
47 6596332
- 6596332 - SPRING
48 7108780
- 7108780 - SLEEVE
- Was 6595951
49 6592720
- 6592720 - PLUG
- W/Ref. 16-18
50 1K127
- 1K127 - O-RING 10
- Was 93K127
51 95K12
- 95K12 - O-RING
52 55K204
- 55K204 - O RING 10
53 29G412
- 29G412 - BOLT
54 29G416
- 29G416 - BOLT
- 1" (25
- 4mm) long
55 6662848
- 6662848 - CAP
56 6595131
- 6595131 - SPRING
- .72'' OD
57 55K212
- 55K212 - O RING 10
58 54K20002
- 54K20002 - O'RING 10
59 6816250
- 6816250 - KIT
- SEAL
- one spool - Ref. 4
- 29
- 42
- 48
- 51
- 52 & 56 - Was 6803605
60 6816253
- 6816253 - KIT
- SEAL
- complete - Ref. 4
- 13
- 16-18
- 21-24
- 42
- 44
- 48
- 50
- 51
- 52 & 55 - also Order 6816250 seal kit - Was 6809448
61 6632279
- 6632279 - KIT
- SEAL
- main relief - Ref. 21-24
62 6809425
- 6809425 - SEAL KIT
- upper deck - Ref. 13 & 16-18 - Was 6586461
