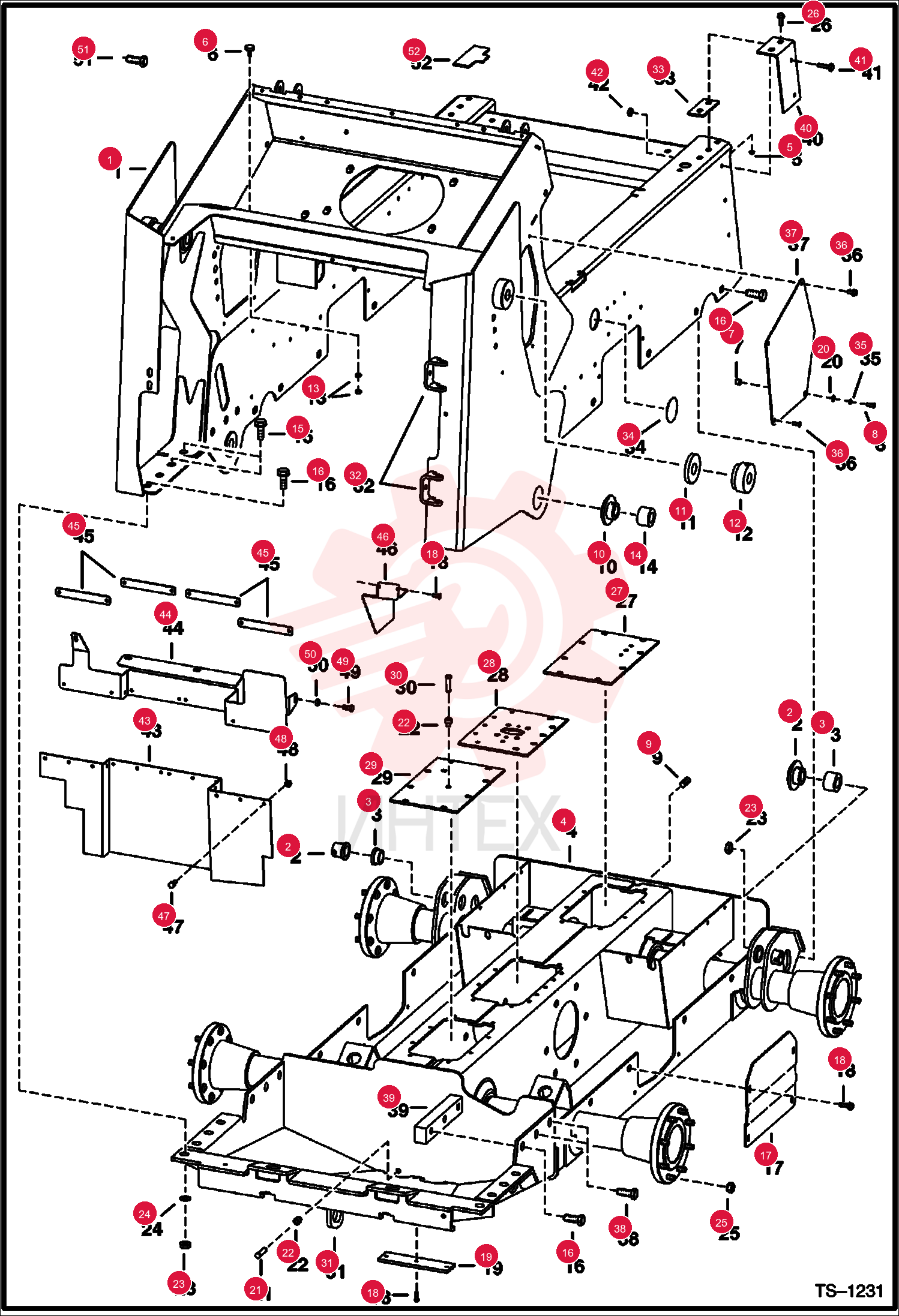

MAIN FRAME 6728479 (1)

MAIN FRAME 6728479 (1)

MAIN FRAME 6728479 (1)

1 6728479

  • 6728479 - MAIN FRAME
  • Was 6716534

2 6717025

  • 6717025 - BUSHING
  • weld on - Was 6703616

3 6716532

  • 6716532 - BUSHING
  • weld-on

4 6705995

  • 6705995 - BUSHING
  • weld-on

5 6716533

  • 6716533 - BUSHING
  • weld-on

6 83D8

  • 83D8 - LKNUT HEX FLG GR8

7 6655399

  • 6655399 - BUMPER

8 97D5

  • 97D5 - NUT FLGD HEX LOCK

9 25G514

  • 25G514 - BOLT

10 6731121

  • 6731121 - PLUG RECESSED PIPE
  • chaincase fill - Was 11F000012B

11 6706712

  • 6706712 - BUSHING
  • inside upright weld-on

12 6706710

  • 6706710 - BUSHING
  • inside upright weld-on

13 6706710

  • 6706710 - BUSHING

14 6709856

  • 6709856 - BUSHING
  • inside upright weld-on

15 6709856

  • 6709856 - BUSHING

16 6706709

  • 6706709 - BUSHING
  • outside upright weld-on

17 61D5

  • 61D5 - NUT HEX FINISHED GR5

18 6706711

  • 6706711 - BUSHING
  • outside upright weld-on

19 6706711

  • 6706711 - BUSHING

20 6709857

  • 6709857 - BUSHING
  • outside upright weld-on

21 6709857

  • 6709857 - BUSHING

22 31C1236

  • 31C1236 - BOLT

23 31C1228

  • 31C1228 - BOLT

24 6706808

  • 6706808 - COVER
  • 12.80" (325
  • 1 mm) hole pattern

25 6719201

  • 6719201 - COVER
  • MOTOR
  • 13.80" (350
  • 5 mm) hole pattern

26 84G3712

  • 84G3712 - SCREW THD ROLLING TT

27 84G3712

  • 84G3712 - SCREW THD ROLLING TT

28 6700182

  • 6700182 - COVER
  • DRAIN

29 25E15

  • 25E15 - WASHER FLAT PLAIN

30 6599645

  • 6599645 - PLUG
  • STEEL
  • chaincase drain

31 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5

32 83D12

  • 83D12 - NUT

33 6701097

  • 6701097 - WASHER

34 6564669

  • 6564669 - NUT WHEEL
  • - wheel

35 35C824

  • 35C824 - BOLT
  • W/metal guide

36 6700330

  • 6700330 - COVER

37 6680970

  • 6680970 - VENT BREATHER
  • - Was 6670627

38 6706485

  • 6706485 - BRACKET
  • tie down - weld-on

39 6708987

  • 6708987 - HINGE
  • WELD-ON
  • Was 6577394

40 6709900

  • 6709900 - SPACER
  • guide - W/metal guide

41 6709900

  • 6709900 - SPACER
  • guide - W/plastic guide - Was 6909900

42 6718796

  • 6718796 - PLUG
  • Was 6660646

43 6564535

  • 6564535 - WASHER AUX CONTROL

44 84G3112

  • 84G3112 - SCREW THD ROLLING TT

45 6706730

  • 6706730 - COVER

46 17C1228

  • 17C1228 - BOLT

47 6706857

  • 6706857 - THD-BAR
  • threaded

48 6709950

  • 6709950 - GUIDE
  • metal

49 17C516

  • 17C516 - BOLT
  • for metal guide -

50 53C516

  • 53C516 - SCREW TRX BTN HD CAP
  • for plastic guide

51 83D5

  • 83D5 - LKNUT HEX FLG GR8

52 6715275

  • 6715275 - SHIELD
  • exhaust
  • rubber

53 6715274

  • 6715274 - BRACKET
  • shield

54 6715270

  • 6715270 - CLAMP
  • shield

55 6715276

  • 6715276 - SHIELD
  • hose

56 17C412

  • 17C412 - BOLT 5

57 83D4

  • 83D4 - LKNUT HEX FLG GR8

58 17C616

  • 17C616 - BOLT 5

59 97D6

  • 97D6 - NUT 10

60 35C616

  • 35C616 - SCREW FLGD HEX CAP

61 6707515

  • 6707515 - PLATE
  • BRACE
  • weld-on
